Page 13

THING

YOU

HOULD KNOW

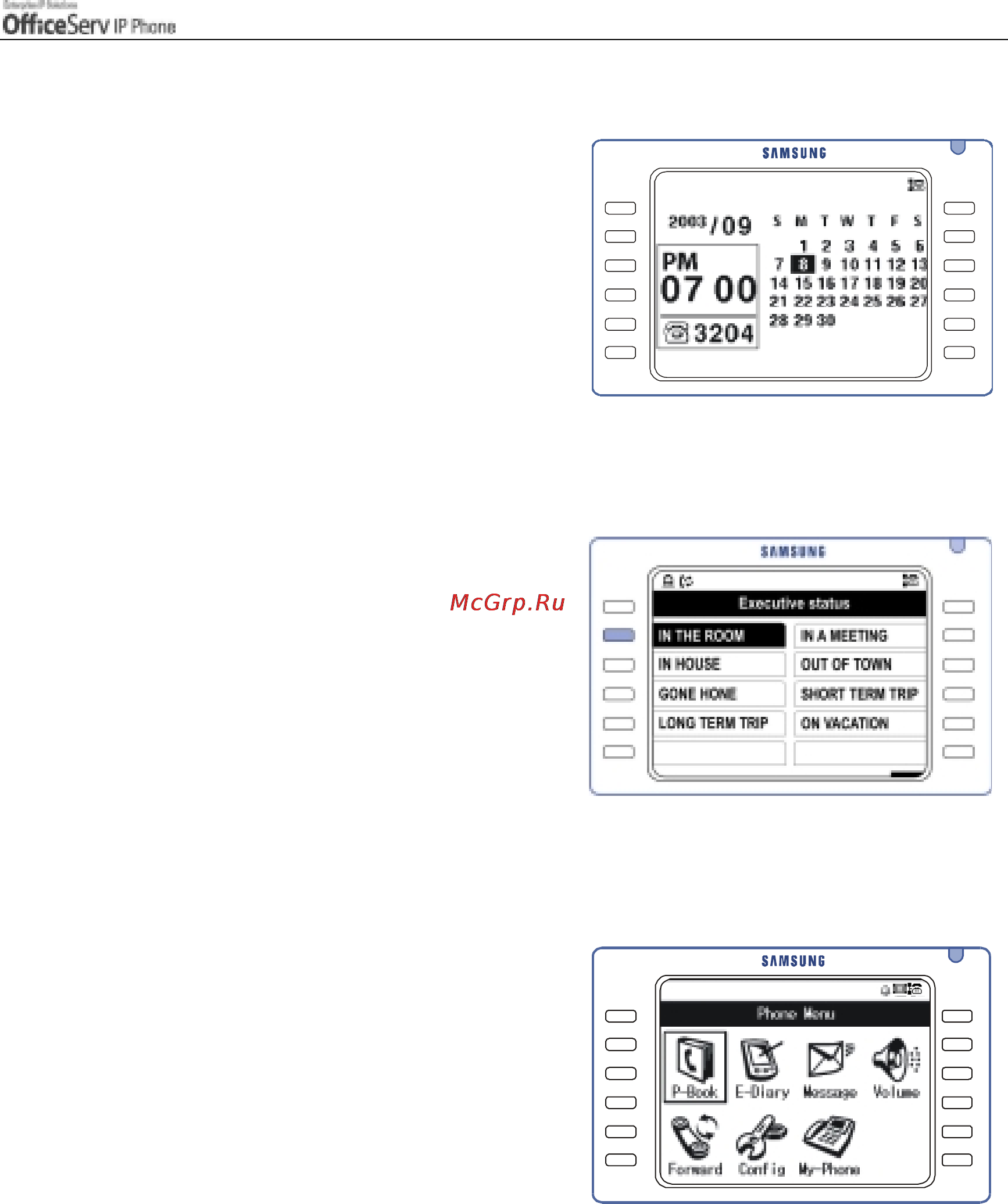

Background Screen

This is the default screen that appears in

standby mode.

You can use the ‘My Phone’ menu in the

application menus to change this background

screen. Refer to the Application Menus section.

Executive Status Display

This screen appears when the

[Screen]

button

is pressed three(3) times during standby mode.

The telephone shows this screen only when

the Executive/Secretary function is set, and

the secretary can conveniently set the executive

status appropriate to each situation.

Application Menu Screen

This screen appears when the

[Menu]

button

is pressed during standby mode.

The Phonebook, E-diary, Message, Volume,

Forward, Config, and My Phone menus are

displayed with icons.
