© SAMSUNG Electronics Co., Ltd. Page 27
GETTING
S
TARTED

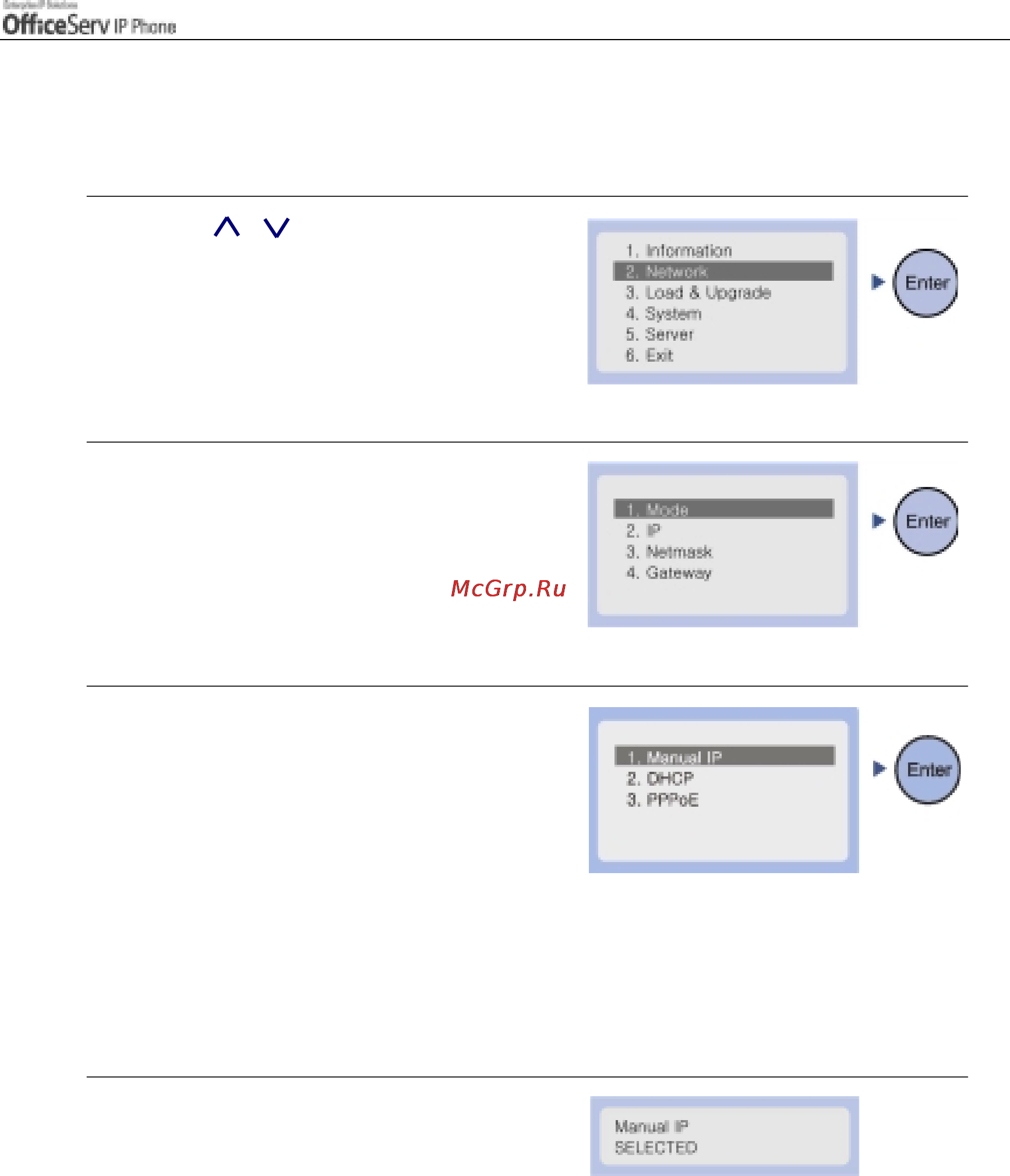

3. Network Settings
You can verify or change the network environment.
1.
Use the [ ]/[ ] button to move to
the [2. Network] menu and press
the [
Enter
] button.
2.
Move to the
[1. Mode]
submenu and
press the
[Enter]
button.
3.
Select
[1. Manual IP] menu
to
directly enter the phone’s IP address.
"
Select [2. DHCP] to let your data network
automatically allocate the IP address.
The IP Address, Subnet Mask,
and Gateway values are automatically
set and are not displayed on the LCD screen.
"
Select [3. PPPoE] to use a broadband network such
as ADSL. In this case, you should enter the
ID and password which was given from
broadband network supplier.
4.
After selecting the required mode a message
confirming the mode is displayed for 2
seconds.
