Page 28
© SAMSUNG Electronics Co., Ltd.
GETTING
S
TARTED
5.
The upper menu is displayed again.
6.

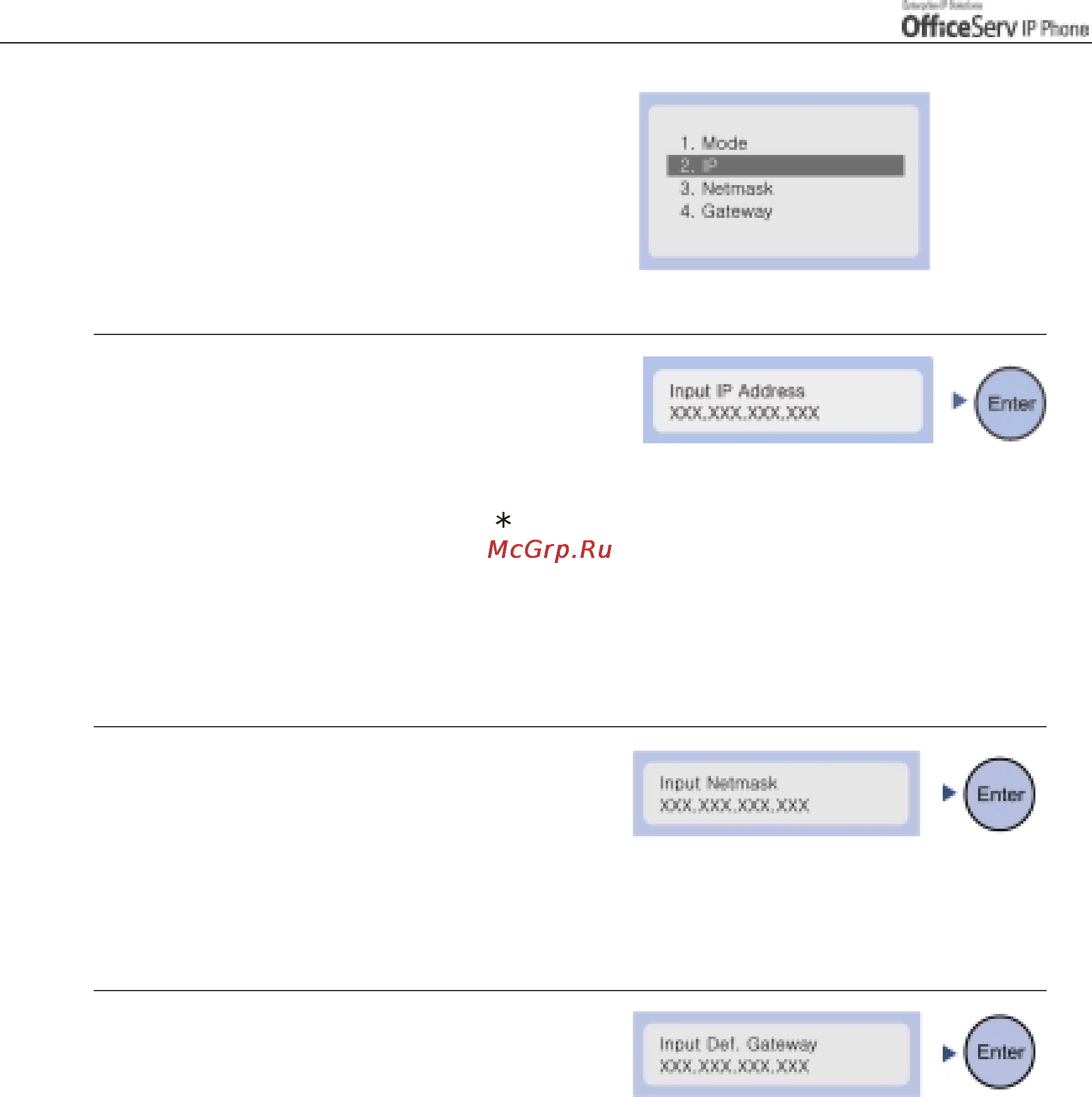

Select
[2. IP]
to display the current
IP address of the IP phone.
No address is displayed if an IP address
is not set.
Use the dial buttons [0]~[9] and [ ] to
enter a new IP address, and press the
[Enter]
button.
"
Be careful not to enter a duplicate
IP address since the data network will not
support duplicated IP addresses.
7.
Select
[3. Netmask]
to display the current
Netmask address of the IP phone.
To change the Netmask address,
enter a new address and press
the
[Enter]
button.
8.
Select
[4. Gateway]
to display the current
Gateway address of the IP phone.
To change the Gateway address,
enter a new address and press
the
[Enter]
button.
