4.

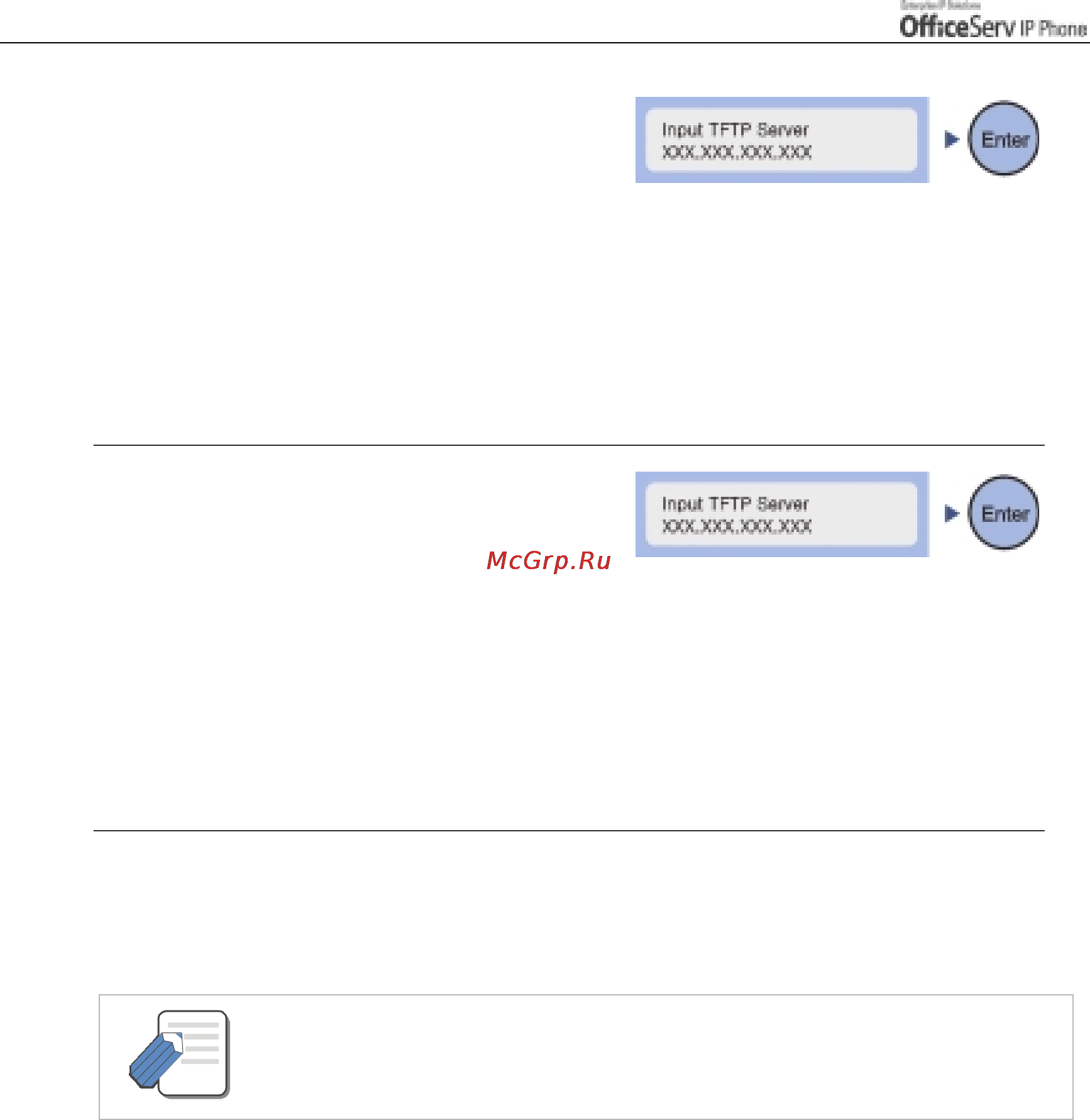

The
[2. Upgrade Program]
menu is
used for upgrading the phone’s program.
Enter the IP address of the TFTP
server from which the program should
be downloaded.
Press the
[Enter]
button to start the program download process.
If the correct TFTP server IP address is programmed
press
[Enter]
to start the download process.
5.
The
[3. Upgrade Bootrom] menu
is
used for upgrading the phone’s Bootrom.
Enter the IP address of the TFTP server
from which the Bootrom program should
be downloaded, and press the
[Enter]
button.
"
The IP phone is rebooted after downloading
the Bootrom program and the Environment
Setup Main Menu appears. At this time, you
don’t need press the [Menu] button.
6.
The
[4. Format]
menu is used to delete previously saved programs.
Check with your System administrator before using this option.
- After formatting the IP phone, download a new program through the [2. Upgrade
Program] menu.
