Checking the shipping pallet for
damage
•
When the motorcycle arrives, check the packing
material immediately for damage and, if neces-
sary, examine the contents for consequential
damage.
In case of damage in Germany
•
Note the damage on the delivery slip.
•
Read the information sheet on damage in transit.
•
Notify supplier (e.g. freight company or DB) and
Bavaria Wirtschaftsagentur GmbH
Abteilung ZW - 12
80788 München
Tel. 089/14327-632
Fax 089/14327-709
without delay.
In case of damage in importer markets
•
Note the damage on the delivery slip.
•
Comply with specific national market proce-
dures.
In case of doubt, please submit enquiries to:
Bavaria Wirtschaftsagentur GmbH
Abteilung ZW - 12
D-80788 München
Tel. +49 89/14327-632
Fax +49 89/14327-709
•
Notify the supplier (e.g. freight company) without
delay.
00 11
Unpacking the motorcycle
•
Lever off the cover.
•
Take out the separate pack of items:
– Documentation
– Optional Speedster fairing, if applicable
– Optional seat cover, if applicable
•
Force off cross-struts with a suitable lever.
e Important:
Do not knock the cross-struts out or the motorcycle
may be damaged.
•
Remove the end-walls.
•
Remove the side-walls.
e Important:
Remove any nails projecting from the base of the
packing or lying on the base or on the floor.
•
Loosen the front tensioning straps.
•
Loosen the rear tensioning straps.
•
Push the motorcycle forwards off the pallet.
•
Remove the set of keys from the left rear footrest.
•
Dispose of the packing materials in an environ-
mentally responsible manner as described in Cir-
cular 23/91 - Sales.
00 11
Installing remaining items on
motorcycle
•
Fit the rear-view mirror.
X Tightening torque:
Mirror on handlebar fitting ............................ 10 Nm
71 63 099

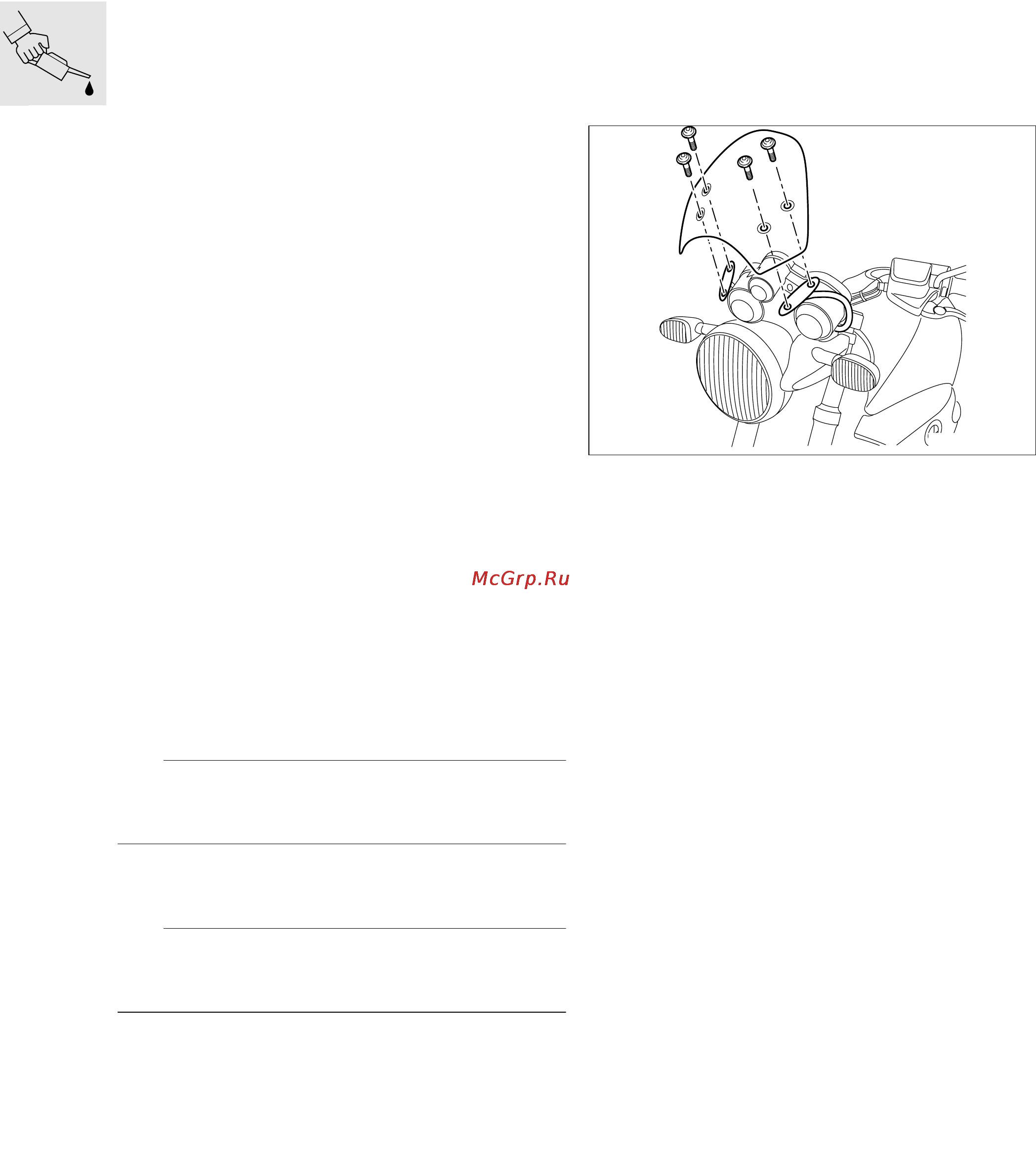

Mounting the Speedster fair-
ing
•
Carefully tighten the Speedster fairing securing
screws by hand.
X Tightening torque:
Fairing on fairing bracket................................ 2 Nm
00 11
Inspecting motorcycle for dam-
age
•
Check for faults.
•
“Express handling service” to:
BMW Motorrad
UX-VS-1
Fax number +49 (0)89-382-33220
•
Rectify the fault.
•
If parts are needed, order them through the usual
channel.
•
Costs are to be processed through the warranty
claim system (stage 4). Defect codes:
– Parts missing 10 01 00 00 00
– Parts damaged 10 02 00 00 00
– Incorrect parts delivered 10 03 00 00 00
Checking that delivery is complete
– All optional extras
– Toolkit
– Documentation
R28000010
