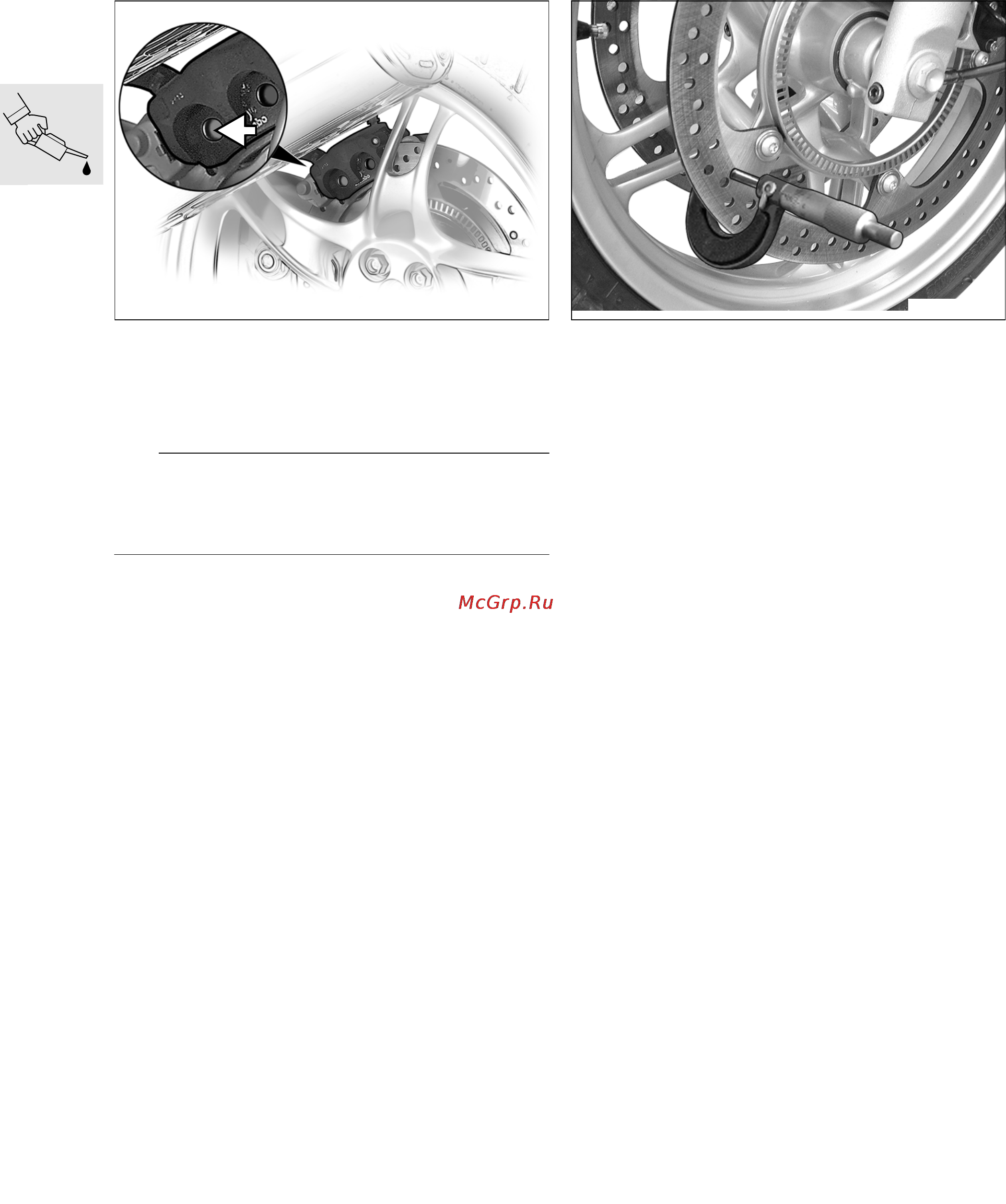

Checking rear brake pad wear
•
Make sure that the brake disc is not visible
through the bore (arrow) in the inner brake pad.
•
If necessary, check/measure thickness of brake
pads.
e Important:
Brake pad thickness must not fall below the minimum
value. Always replace the brake pads as a complete
set.
Minimum pad thickness: ........ 1.0 mm (0.3937 in)
– If the brake disc is visible through the bore in the
wheel-side brake pad, the brake lining is worn to
its minimum permissible thickness.
Checking brake disc wear
•
Examine the brake discs carefully for cracks,
damage, distortion, wear and score-marks.
Brake disc wear limit:
front:......................................... 4.5 mm (0.1771 in)
rear:.......................................... 4.5 mm (0.1771 in)
R28000130 R28000140
