00.42
34 00 090 [Integral ABS] Changing/
bleeding brake fluid in wheel circuit
Change brake fluid in wheel circuit once a year
(Inspection IV)
d Warning:
All repair and maintenance work on the
BMW Integral ABS should be carried out by special-
ly trained personnel.
Maintenance and repair procedures and processes
should be strictly observed.
Use only new brake fluid from an unopened contain-
er.
L Note:
This description applies to brake filling and bleeding
devices with vacuum extraction of the brake fluid.
If other devices are used, comply with their manu-
facturers’ instructions.
34 00 070
[Integral ABS]
Bleeding/changing brake fluid in front
wheel circuit
e Important:
Integral brakes, the rear brake must be ready for
use.
•
Remove fuel tank.
e Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•

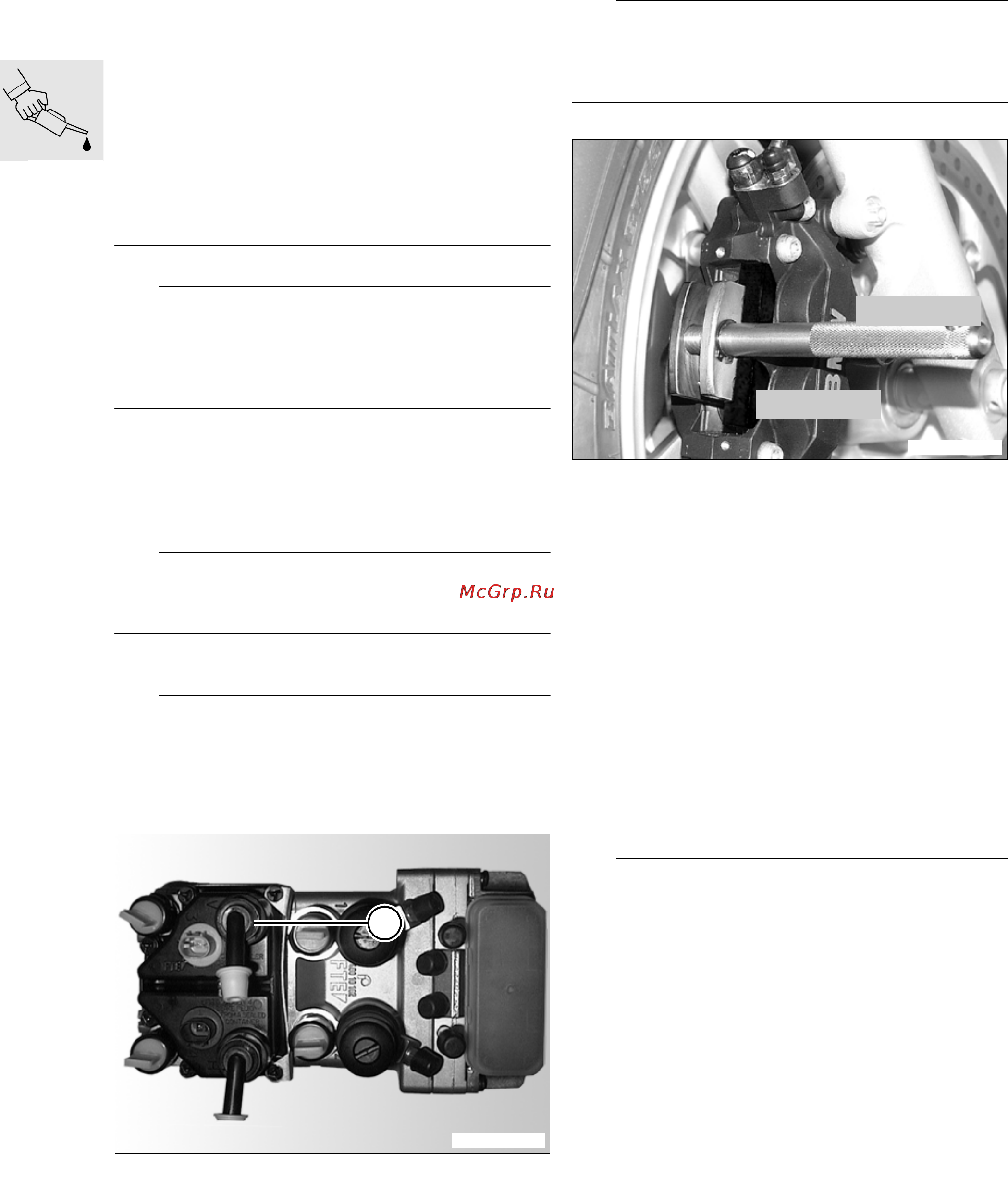

Open front wheel circuit reservoir (1).
•
Draw off the old brake fluid from the wheel circuit
reservoir.
•
Remove the front left and right brake pads.
e Important:
Only use the piston reset
device, BMW No. 34 1 531, if the wheel circuit res-
ervoir cover is open.
•
Use the reset device, BMW No. 34 1 531, and
the positioning piece, BMW No. 34 1 532, to
press the brake caliper pistons completely back
and to position them.
•
Wrap cloths around the left and right brake cali-
pers.
– [bleed only] The front wheel circuit should be
bled only.
(
a 00.45)
•
Draw off the old brake fluid from the wheel circuit
reservoir.
•
Refill the front wheel circuit reservoir (1) with new
brake fluid.
•
Connect the brake bleeding device to the bleed
screw of the left brake caliper, but do not switch
it on.
L Note:
If necessary, use a cable tie to secure the bleed
hose to the bleed screw.
R28340110
1
R28000180
34 1 531
34 1 532
