BMW R1150R ABS (2001) [80/95] Bleeding wheel circuits
![BMW R1150R ABS (2001) [80/95] Bleeding wheel circuits](/views2/1121014/page80/bg50.png)
34.15
34 00 [Integral ABS]
Draining brake system
d Warning:
All repair and maintenance work on the
BMW Integral ABS should be carried out by special-
ly trained personnel.
Maintenance and repair procedures and processes
should be strictly observed.
Use only new brake fluid from an unopened contain-
er.
L Note:
This description applies to brake filling and bleeding
devices with vacuum extraction of the brake fluid at
the brake caliper.
If other devices are used, comply with their manu-
facturers’ instructions.
•
Remove front/rear seat.
•
Remove fuel tank (a 16.5).
Bleeding wheel circuits
e Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
Bleeding front wheel circuit
e Important:
Integral brakes, the rear brake must be ready for
use.
•

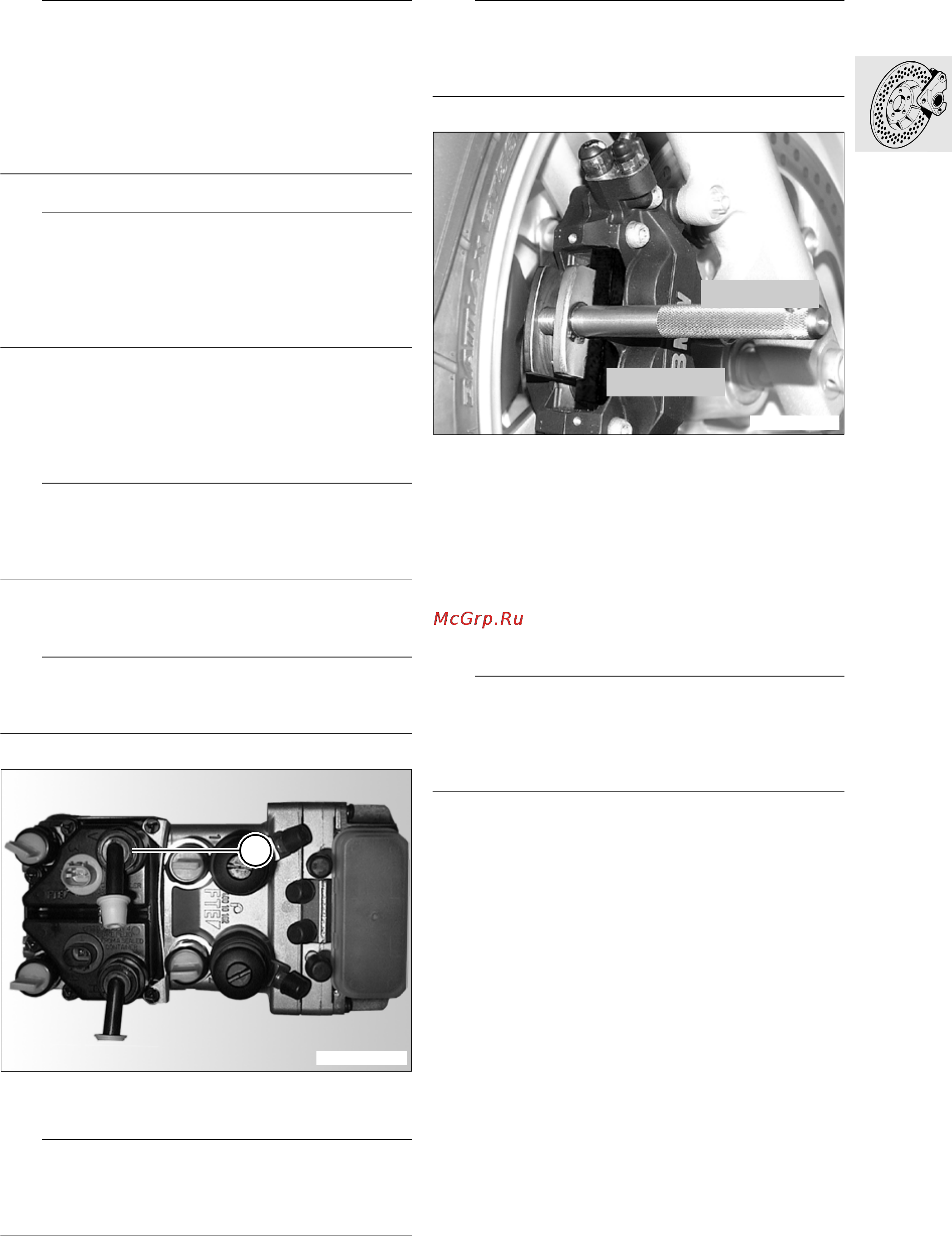

Open front wheel circuit reservoir (1).
e Important:
To prevent brake fluid from entering the connector,
do not release the ABS pressure modulator plug
connections.
•
Draw off the old brake fluid from the wheel circuit
reservoir.
•
Remove front brake pads.
e Important:
Only use the piston reset
device, BMW No. 34 1 531, if the wheel circuit res-
ervoir cover is open.
•
Use the reset device, BMWNo.341531, and
the positioning piece, BMWNo.341532, to
press the brake caliper pistons completely back
and to position them.
•
Wrap cloths around the left and right brake cali-
pers.
•
Connect the brake bleeding device to the bleed
screw of the left brake caliper, but do not switch
it on.
•
Switch on the ignition.
L Note:
Always wait for the BMW Integral ABS to complete
its self-diagnosis after the ignition is switched on.
Do not operate the brake lever until self-diagnosis
has completed.
•
Gently pull the handbrake lever until the pump
just starts up.
•
Open the bleed screw.
•
Drain wheel circuit using a pump.
•
Close the bleed screw.
•
Release the brake.
•
Disconnect the brake bleeding device from the
bleed screw.
•
The procedure for draining the right brake caliper
is the same as that for the left caliper.
•
Close the bleed screw.
•
Release the brake and switch off the ignition.
•
Disconnect the brake bleeding device from the
bleed screw.
R28340110
1
R28000180
34 1 531
34 1 532
