00.19

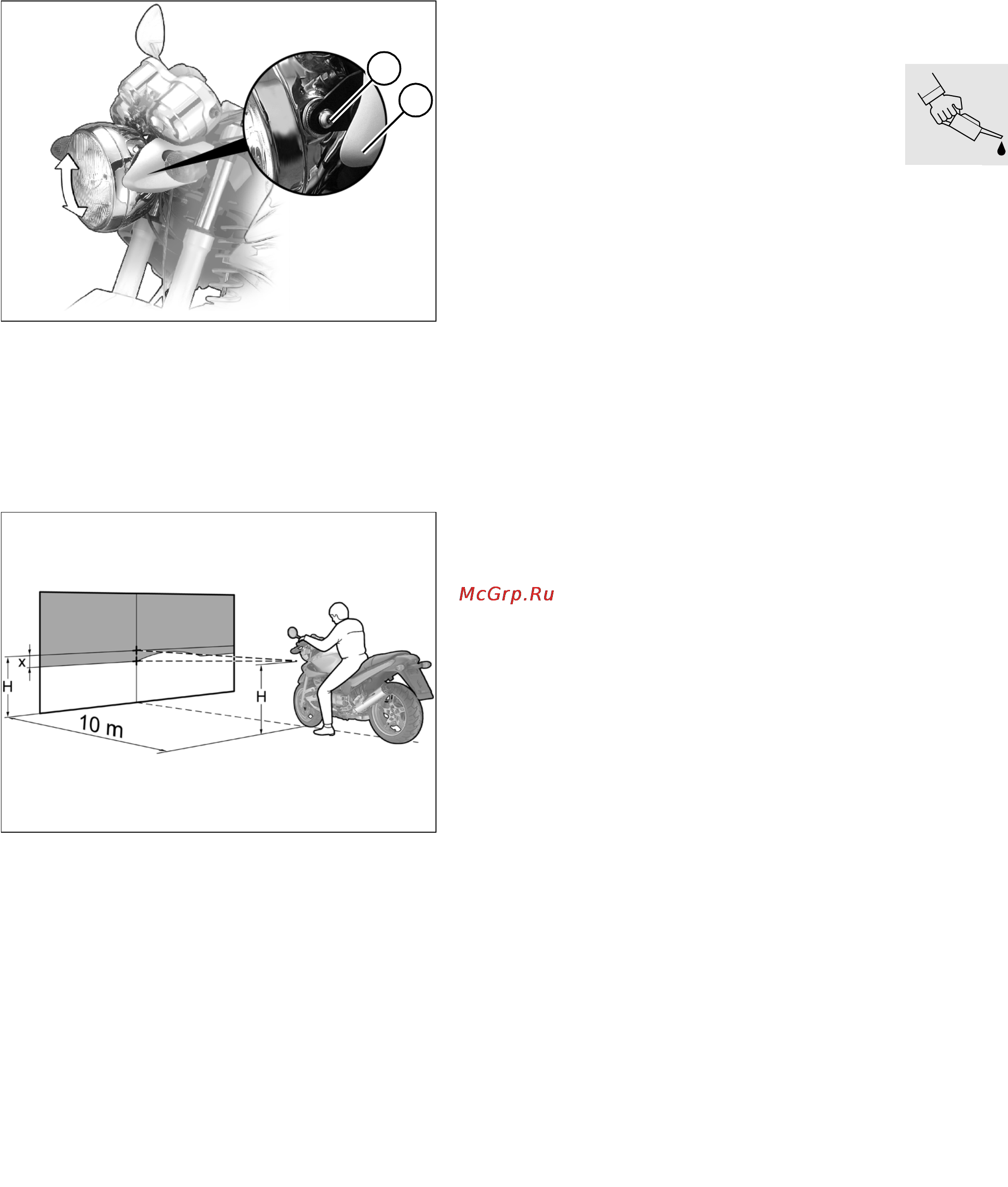

63 10 500 Checking headlight beam
angle, adjusting if necessary
•
Motorcycle must be on a level surface.
•
Motorcycle with driver (approximately 85 kg/
187 lbs).
•
Remove trim (1).
•
Remove headlight (2) retaining bolts.
•
Correct the headlight range by swivelling the
headlight.
Setting for headlight beam angle adjuster
.. .-25 cm (9.8425 in) at a distance of 10 m (32.8 ft)
Checking tightness of rear wheel
studs
X Tightening torque:
Securing screws for rear wheel .................. 105 Nm
Checking tyre pressures
•
Check/correct tyre pressures.
Tyre pressures:
Solo ..................................... front 2.2 bar (31.3 psi)
............................................. rear 2.5 bar (35.6 psi)
With pillion passenger .......... front 2.5 bar (35.6 psi)
............................................. rear 2.7 bar (38.4 psi)
With pillion passenger and
luggage................................ front 2.5 bar (35.6 psi)
............................................. rear 2.9 bar (41.2 psi)
R28000070
2
1
R28000080
