34.8

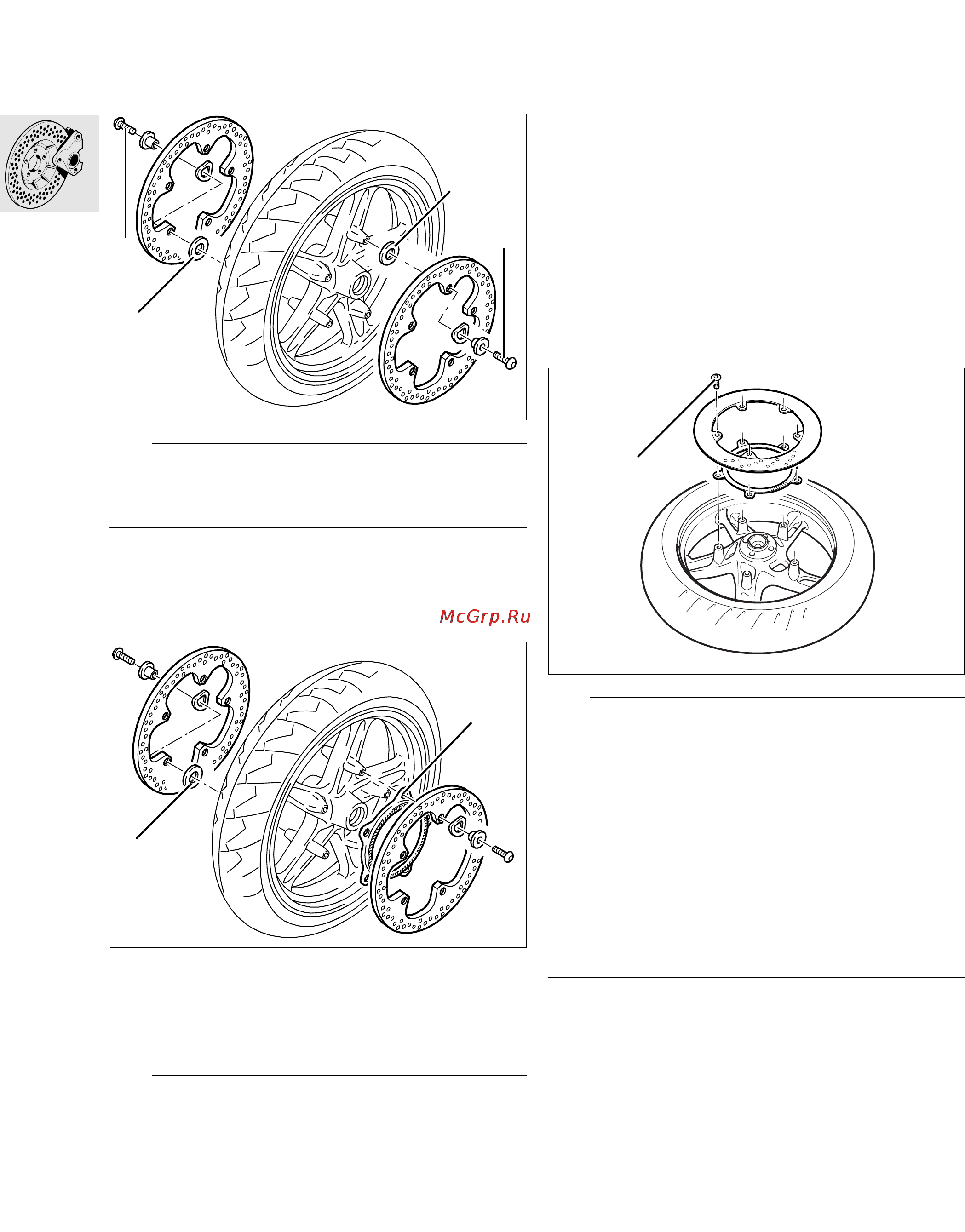

34 11 Removing and refitting front
brake discs
•
Remove the brake caliper.
•
Remove front wheel.
L Note:
The retaining bolts (1) are secured and may have to
be heated before being undone.
•
Remove brake discs.
•
Installation is the reverse of the removal proce-
dure, pay particular attention to the thrust wash-
ers (2) below the brake discs.
•
[Integral ABS] Fit the left-hand ABS sensor
ring (1) and the right-hand thrust washers (2) be-
low the brake disc.
•
Degrease the brake discs before fitting them.
e Important:
Pay attention to the thrust washers between the
brake discs and the front wheel.
[Integral ABS] Pay attention to the thrust washers
between the right brake disc and the front wheel,
and to the ABS sensor ring between the left brake
disc and the front wheel.
e Important:
Note direction of installation for the brake disc (let-
tering to the outside).
X Tightening torque:
Brake disc to front wheel
(Clean thread + Loctite 2701) ....................... 21 Nm
34 21
Removing and refitting rear
brake disc
•
Remove the brake caliper.
•
Remove rear wheel.
L Note:
The retaining bolts (1) are secured and may have to
be heated before being undone.
•
Remove brake disc.
•
Installation is the reverse of the removal proce-
dure.
•
Degrease the brake disc before installing it.
e Important:
[Integral ABS] Pay attention to the shim when in-
stalling the rear wheel.
X Tightening torque:
Brake disc to rear wheel drive
(Clean thread + Loctite 2701) ....................... 21 Nm
R28340140
2
2
1
1
R28340150
1
2
R28340130
1
