BMW R1150R ABS (2001) [42/95] Replacing brake pads front brake
![BMW R1150R ABS (2001) [42/95] Replacing brake pads front brake](/views2/1121014/page42/bg2a.png)
00.37
34 11 008 Replacing brake pads, front
brake
e Important:
Integral brakes, the rear brake must be ready for
use.
•
Remove retaining plate.
•

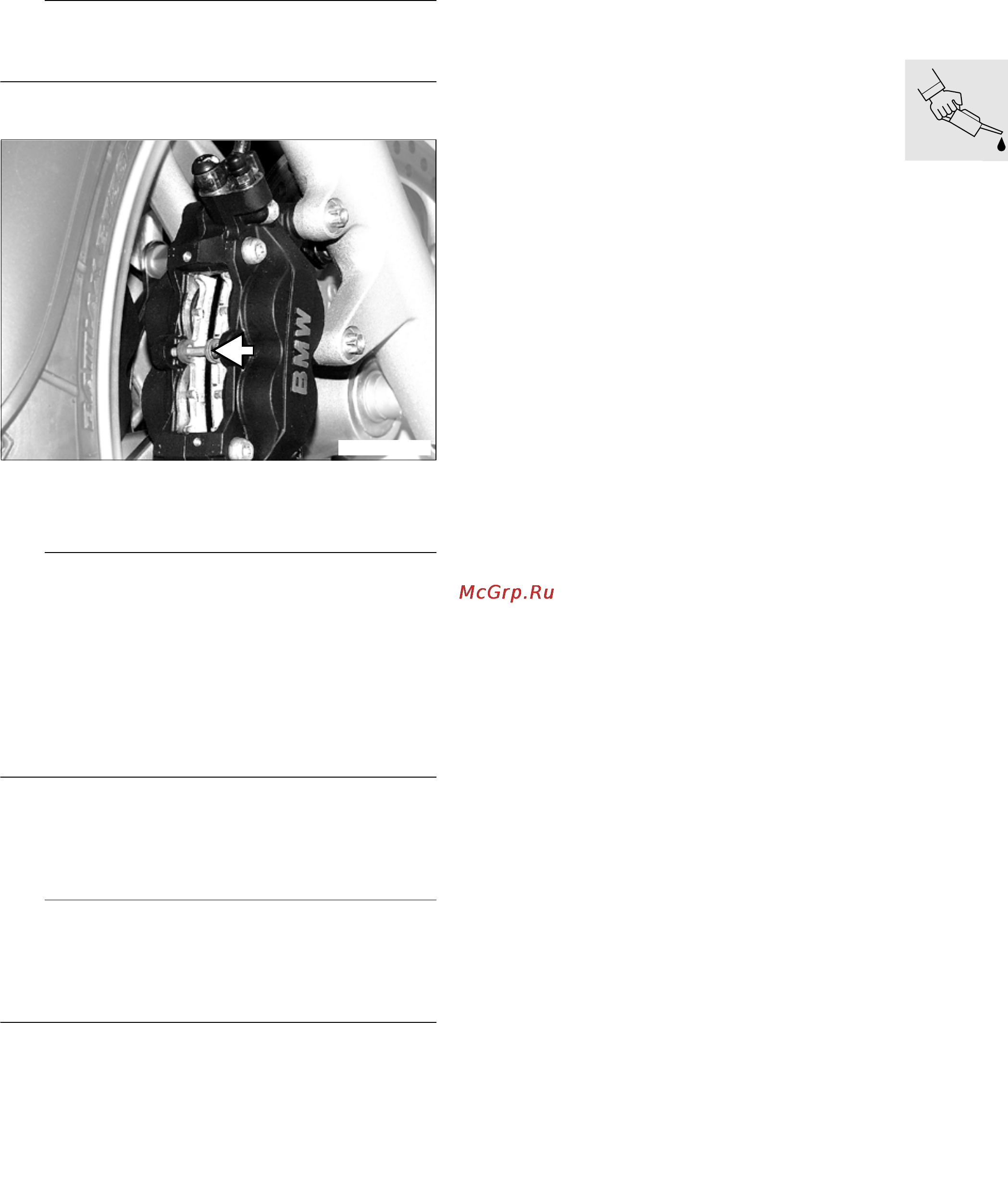

Remove keeper (arrow) from retaining pin.
•
Remove retaining pin.
e Important:
[Integral ABS] Press back pistons on one side of
the brake caliper only. Allow the brake pad on the
opposite side to remain in the caliper during this
process.
The fluid in the wheel circuit reservoir must not rise
above “MAX”.
Risk of fluid loss.
If fluid escapes, proceed in accordance with the in-
structions for filling the reservoir.
•
Pistons with old brake pads should only be
pressed back just far enough for the new brake
pads to fit in.
•
Remove old brake pad and insert new brake pad.
L Note:
Always wait for the BMW Integral ABS to complete
its self-diagnosis after the ignition is switched on.
Do not operate the brake lever until self-diagnosis is
complete.
•
After replacing the pads of a caliper, always bed
in the new brake pads with the ignition switched
on.
•
Installation is the reverse of the removal proce-
dure.
•
Perform a function check on the brake system
with the ignition switched on.
Colour code:
Brake pads, brake calipers............................ green
R28000150
