00.53
•
Correct the brake fluid level.
•
Wipe the rim of the reservoir, the rubber gaiter
and the cover to remove brake fluid, and carefully
reassemble the components.
•
Place the motorcycle on its centre stand.
Required level
not below ......................................................... MIN
e Important:
Once all the work has been completed, perform a
bleed test using the BMW MoDiTeC.
•
Performing a bleed test with BMW MoDiTeC.
(
a 00.27)
•
Fit fuel tank.
Brake fluid....................................................DOT 4

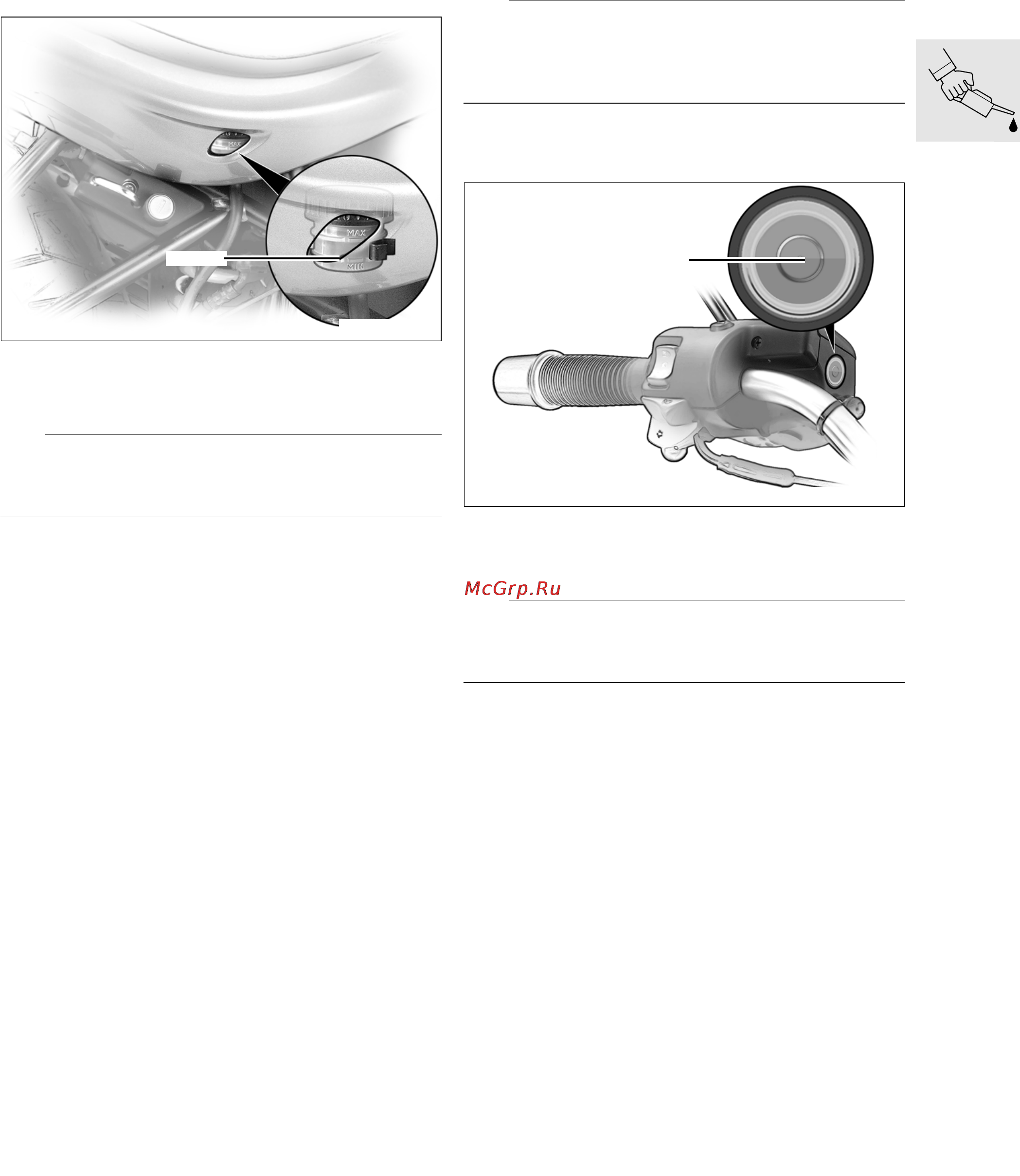

Checking clutch operating fluid
level
(Inspections II and III)
e Important:
Keep the brake fluid in the clutch operating system
away from painted motorcycle parts as brake fluid
attacks paint.
•
Support the motorcycle on its side stand.
•
Turn the handlebars to the right.
Required level with a new clutch liner:
...........................................Half way up sight glass
L Note:
As the clutch lining wears, the fluid level in the res-
ervoir rises.
•
If necessary, remove reservoir cover with insert.
•
Correct the fluid level. Mark in reservoir: same as
brake circuit.
•
Reinstall the reservoir cover with insert.
•
Tighten the reservoir cover carefully and without
using force.
Brake fluid ...................................................DOT 4
R28000050
MIN
R28000040
MIN
