BMW R1150R ABS (2001) [69/95] Removing and refitting front brake caliper
![BMW R1150R ABS (2001) [69/95] Removing and refitting front brake caliper](/views2/1121014/page69/bg45.png)
34.4

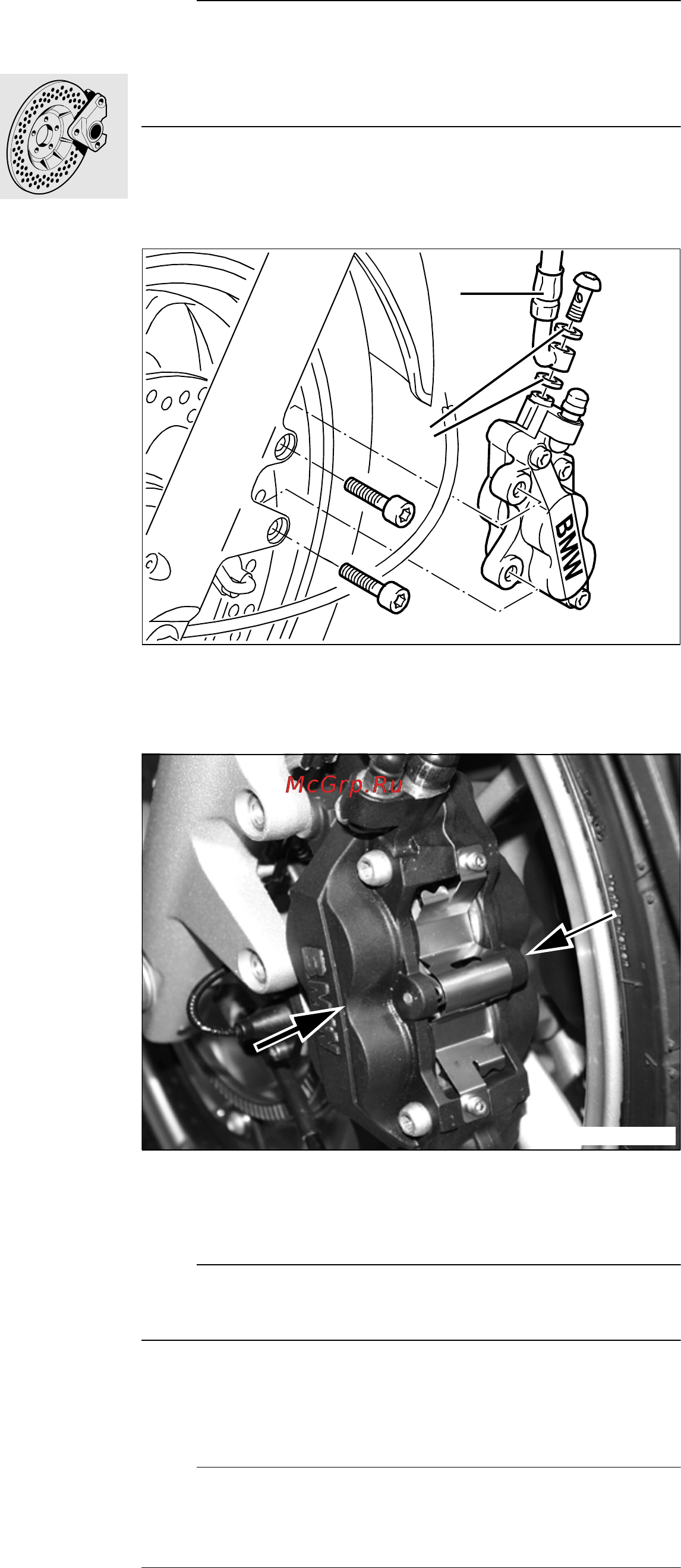

34 11 Removing and refitting front
brake caliper
e Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Drain the brake system.
•
[Integral ABS] Draining front wheel circuit
(
a 34.15).
•
Disconnect brake line (1).
•
Remove screws securing the brake caliper.
•
Press the brake pads/pistons back against the
brake disc (arrow) by pressing the brake caliper.
e Important:
Do not damage brake pads.
•
Carefully remove the brake caliper.
•
Installation is the reverse of the removal proce-
dure.
e Important:
Replace the sealing rings (2) in the brake line.
Do not damage the brake pads when installing.
•
Fill and bleed the brake system.
•
[Integral ABS] Bleeding/filling the front wheel
circuit (
a 34.21).
X Tightening torque:
Brake caliper to fork slider ........................... 30 Nm
Brake hose to brake caliper ......................... 18 Nm
Brake caliper bleed screw ............................. 9 Nm
R28340010
d
Suds
2
1
S340200
