BMW R1150R ABS (2001) [82/95] Bleeding control circuits
![BMW R1150R ABS (2001) [82/95] Bleeding control circuits](/views2/1121014/page82/bg52.png)
34.17
Bleeding control circuits
e Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
Bleeding front control circuit
•
Turn the handlebars to the left.
•
Release clamps securing handlebar.
•
Place the handlebars such that the brake fluid
expansion tank is level.
•
Tighten the handlebar and secure the front wheel
in this position.
•
Remove front reservoir cover with rubber
diaphragm.
•
Draw off old brake fluid and clean the reservoir.
•

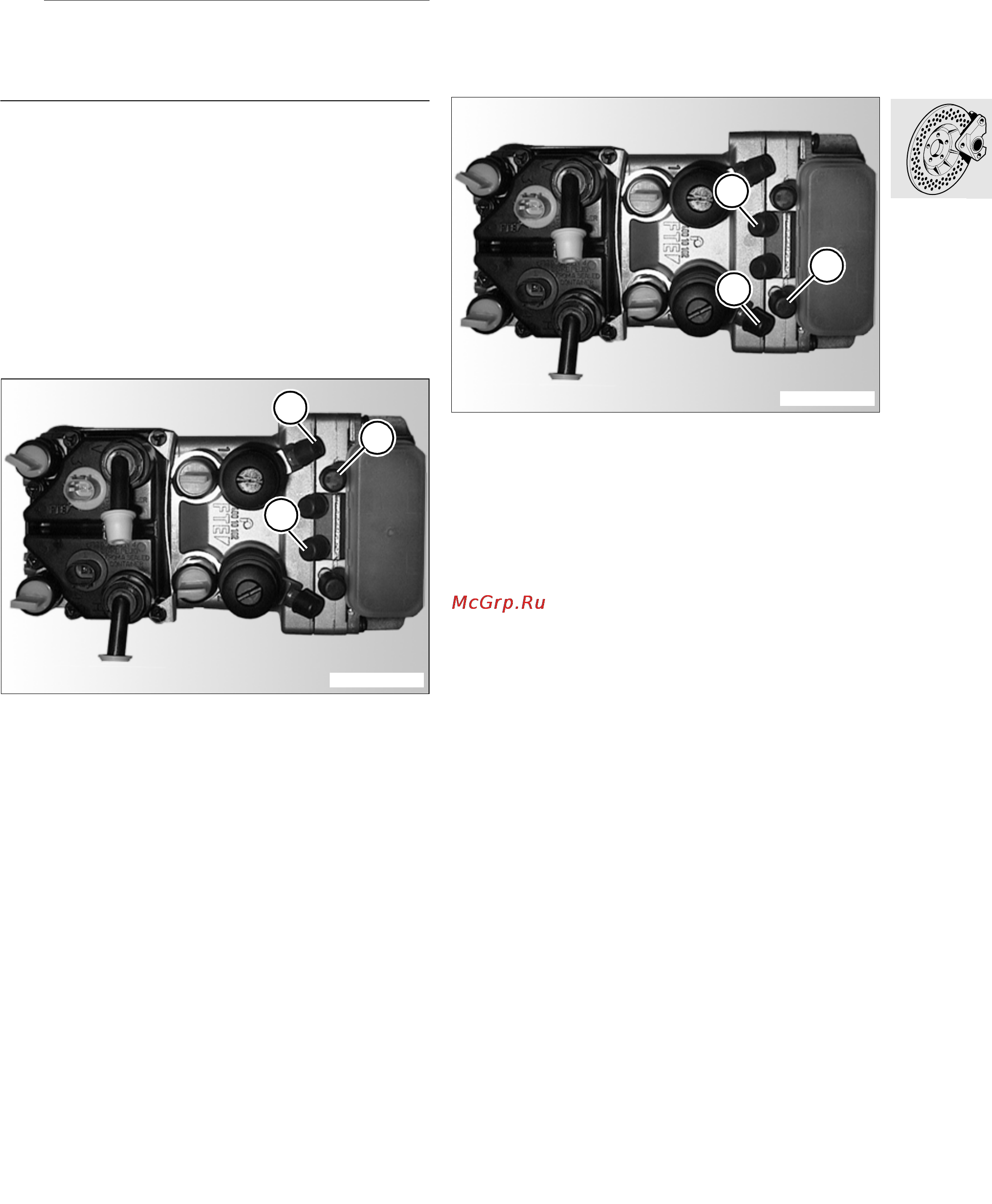

Draw off the brake fluid in accordance with the
sequence, using the ring spanner,
BMWNo.342532.
– Front dosing cylinder (1),
– front integral circuit (2) and
– front control circuit (3).
Bleeding rear control circuit
•
Remove right-hand rear panel.
•
Remove rear reservoir cap with rubber
diaphragm, draw off the old brake fluid and clean
the reservoir.
•
Draw off the brake fluid in accordance with the
sequence, using the ring spanner,
BMW No. 34 2 532.
– Rear dosing cylinder (4),
– rear integral circuit (5) and
– rear control circuit (6).
R28340110
1
3
2
R28340110
4
5
6
