34.11
35 21 Removing and refitting foot-
brake lever
•
Release the pin in the brake linkage.
•
Remove fasteners securing footbrake lever.
•
Remove footbrake lever with torsion spring.
•
Installation is the reverse of the removal proce-
dure.
•
Lubricate pivot bushing with Shell Retinax A.
e Important:
Piston rod play must be checked and adjusted.
See removal and refitting of brake master cylinder.
The brake light should light up when the rear brake
is activated.
X Tightening torque:
Brake pedal to footrest plate
(Clean thread + Loctite 2701) ....................... 21 Nm
34 31
Removing and refitting brake
master cylinder
e Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Drain the brake system.
•
[Integral ABS] Drain rear control circuit
(
a 34.17).
•
Disconnect brake line (1) and hose (2).
•
Release and remove pin (3).
•
Remove brake master cylinder (4).
•
Installation is the reverse of the removal proce-
dure.
•
Tighten one-time hose clip (5) with pliers,
BMW No. 13 1 500.
•
Fill and bleed the brake system.
•
[Integral ABS] Bleed/fill the rear control circuit
(
a 34.20).
e Important:
Bleed the brake system carefully.
Check/adjust piston rod play.
X Tightening torque:
Master cylinder to footrest assembly.............. 9 Nm

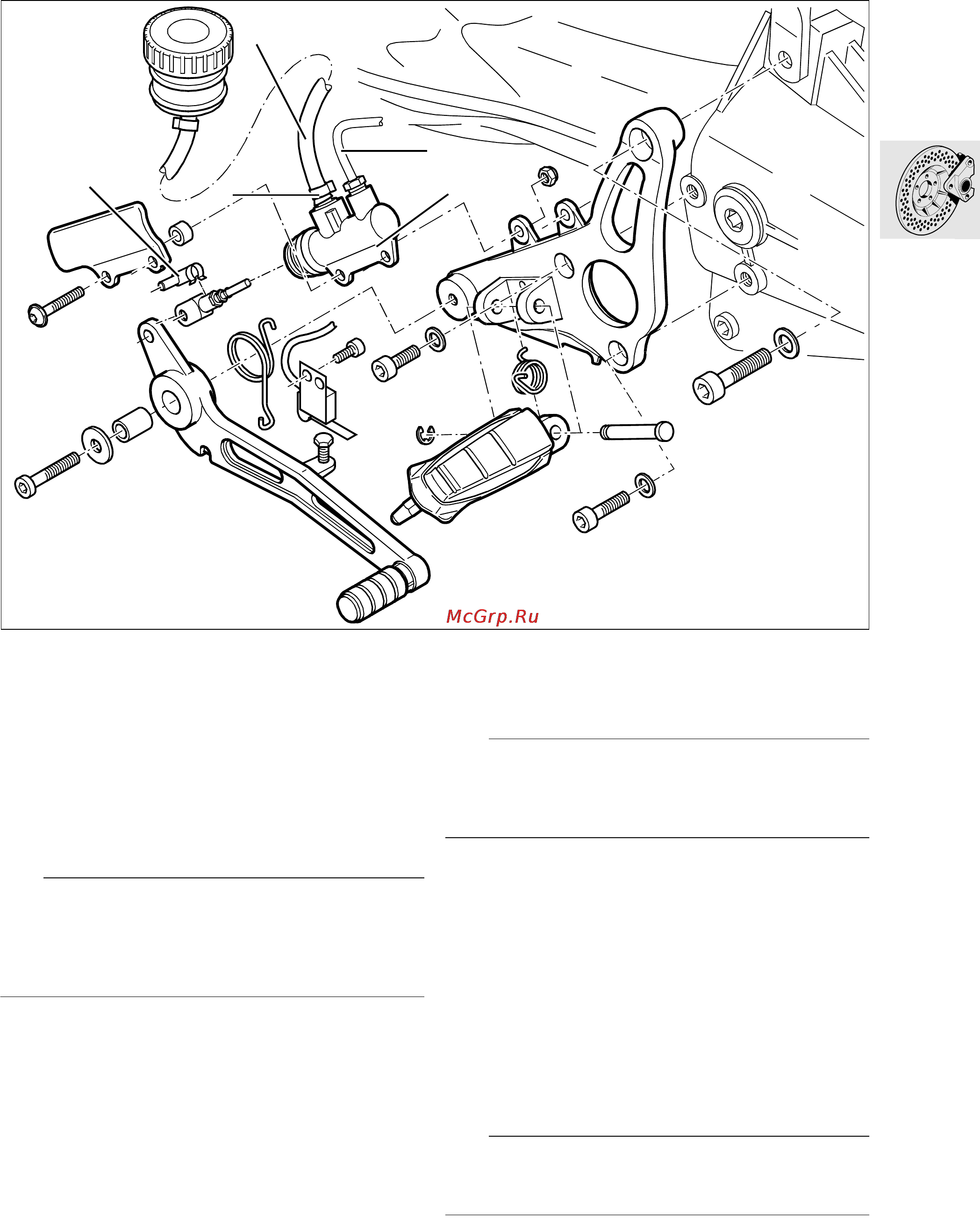

R28460060
1
5
2
4
3
