BMW R1150R ABS (2001) [39/95] Front brake
![BMW R1150R ABS (2001) [39/95] Front brake](/views2/1121014/page39/bg27.png)
00.34
[Without Integral ABS] Checking
brake fluid level
(Inspections II and III)
L Note:
The volume of the brake fluid (MIN/MAX) is sufficient
for lining thicknesses from new to the wear limit.
It is not normally necessary to top up the fluid to ac-
commodate lining wear.
If the level drops below the MIN mark, this indicates
some other fault.

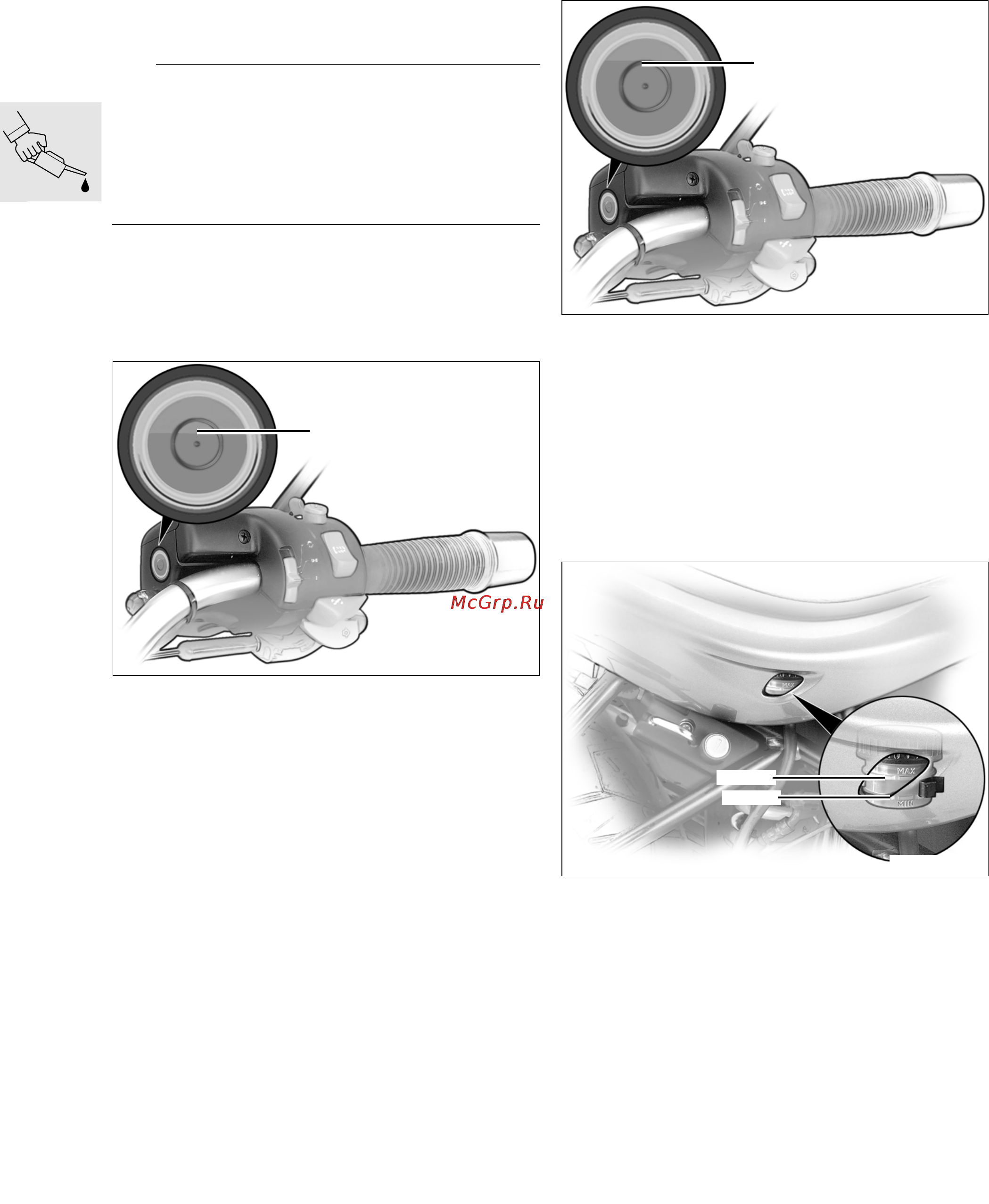

Front brake
•
Place the motorcycle on its centre stand.
•
Turn the handlebars to the right.
Required level:
with new brake pads ....................................... MAX
(exactly between the centre (point) of the sight glass
and the top edge of the marking ring)
•
Turn the handlebars to the left.
Required level
Brake pads worn
not less than ................................................... MIN
(Top edge of the marking ring)
Brake fluid ...................................................DOT 4
Rear brake
•
The motorcycle must be upright.
Required level
with new brake pads ....................................... MAX
brake pads worn not less than ......................... MIN
Brake fluid ...................................................DOT 4
R28000111
MAX
R28000110
MIN
R28000050
MIN
MAX
