34.23

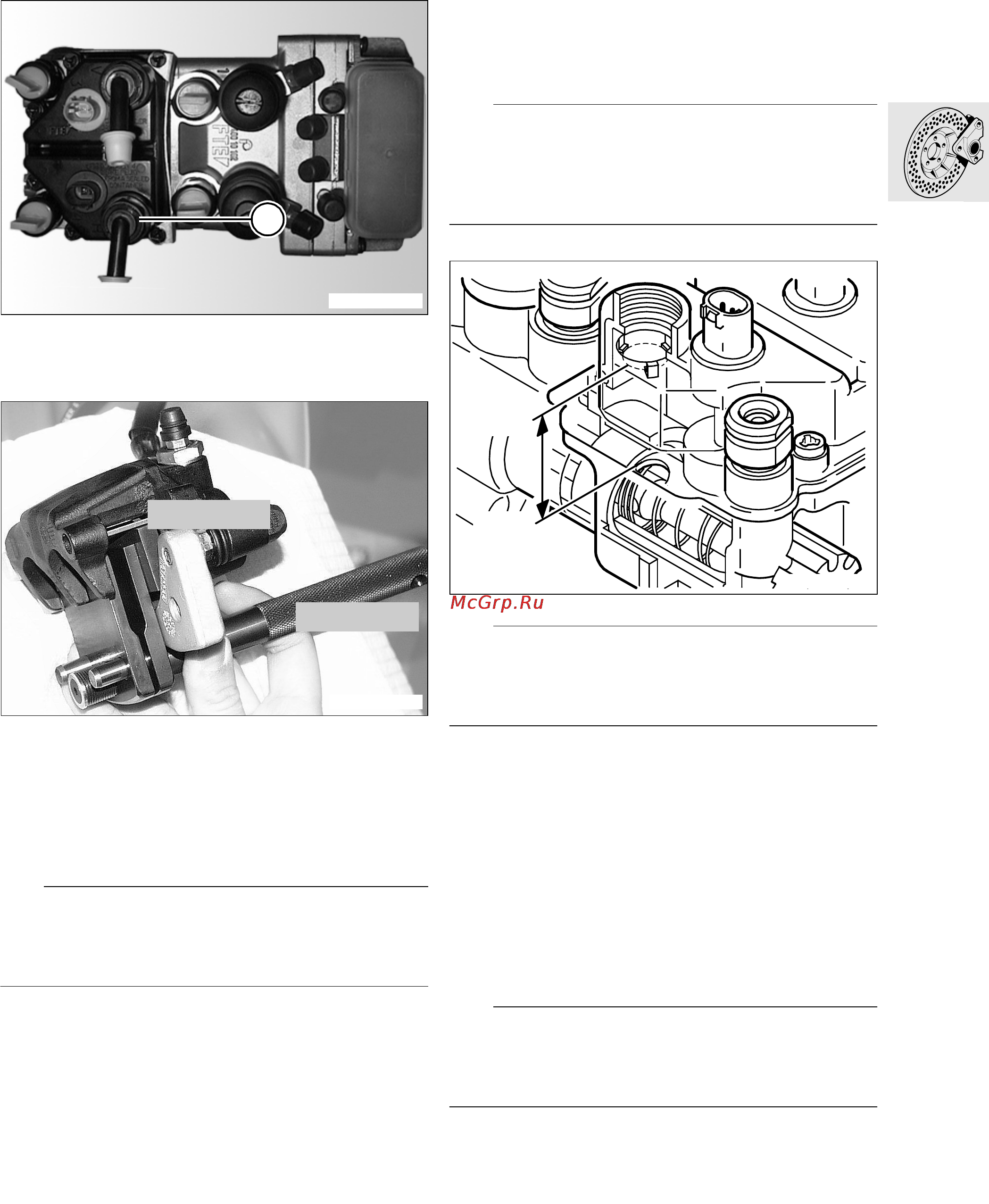

Filling rear wheel circuit
•
Open rear wheel circuit reservoir (1).
•
Remove rear brake pads.
•
Use the adapter, BMW No. 34 1 536, instead of
the external brake pad.
•
With the handle outwards, use the reset
device, BMW No. 34 1 531, on the rear brake
caliper to press back the pistons completely and
to position them.
e Important:
To prevent brake fluid from entering the connector,
do not release the ABS pressure modulator plug
connections.
•
Refill the rear wheel circuit reservoir (1) with new
brake fluid.
•
Wrap a cloth around the brake caliper.
•
Connect the brake bleeding device to the bleed
screw, but do not switch it on.
•
Switch on the ignition.
L Note:
After switching on the ignition, always wait for the
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis
has completed.
e Important:
The piston in the base of the wheel circuit reservoir
must always be covered by the fluid, as otherwise air
can be drawn into the brake system.
•
Gently press the footbrake until the pump just
starts up.
•
Open the bleed screw, while topping up the
wheel circuit reservoir (1) with new brake fluid.
•
Pump out the brake fluid under virtually no pres-
sure to begin with, then vary the brake pressure.
•
Pump off brake fluid until it emerges clear and
free from air bubbles.
•
Close the bleed screw.
•
Release the brake and switch off the ignition.
•
Disconnect the brake bleeding device from the
bleed screw.
e Important:
After changing and/or bleeding the brakes, always
top up the fluid in the wheel circuit reservoir to the
correct level in accordance with the instructions.
R28340110
1
R28000170
34 1 536
34 1 531
MAX
MIN
R28340090
