9D-Link DNS-320 User Manual
Section 3 - Installation

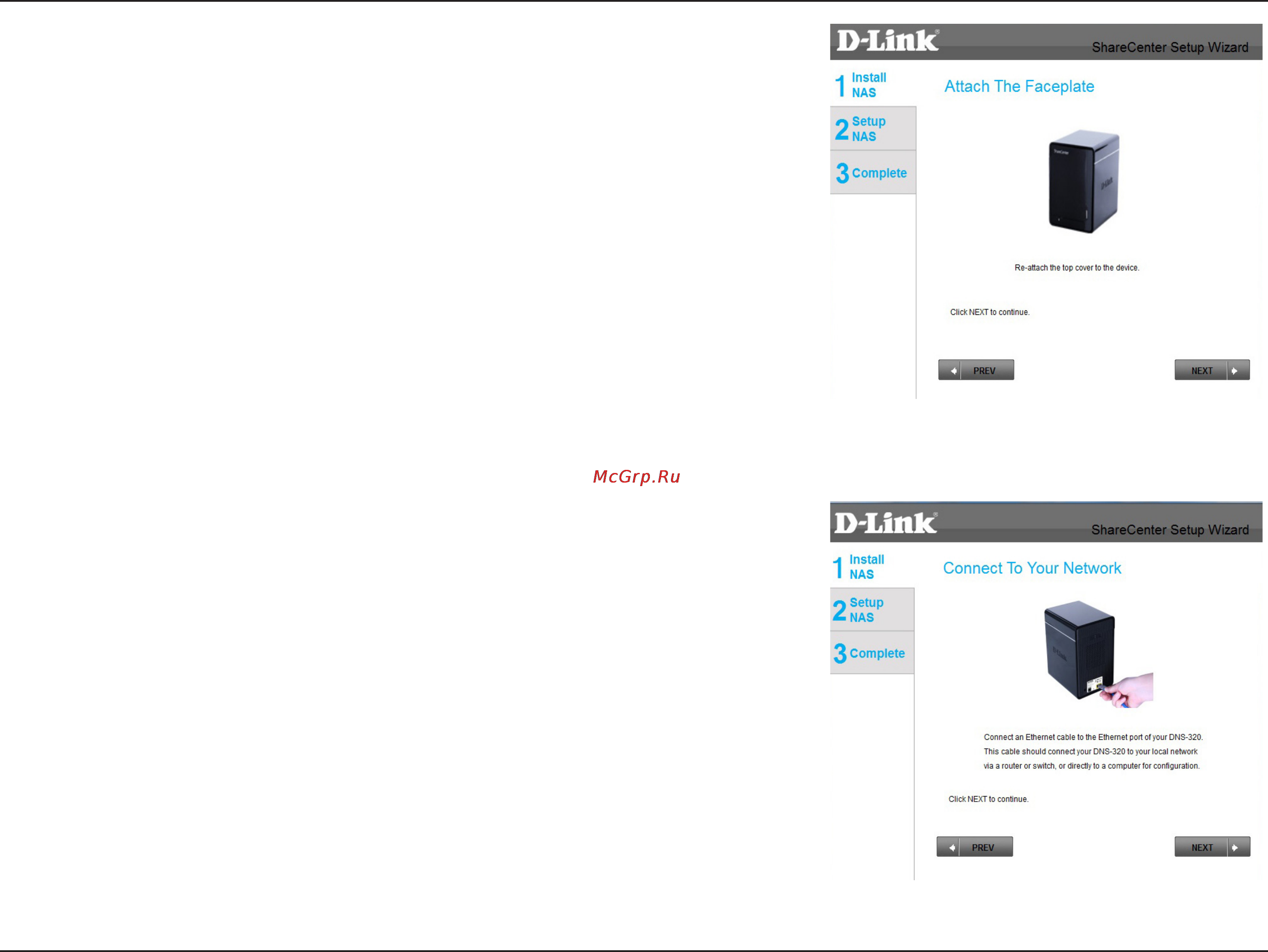

Once the hard drives are installed, you can attach the top cover. Click Next to continue.
A standard CAT5E Ethernet cable with a RJ-45 connector is needed to connect your
ShareCenter Pulse to your network. Click Next to continue.
