28D-Link DNS-320 User Manual
Section 4 - Conguration

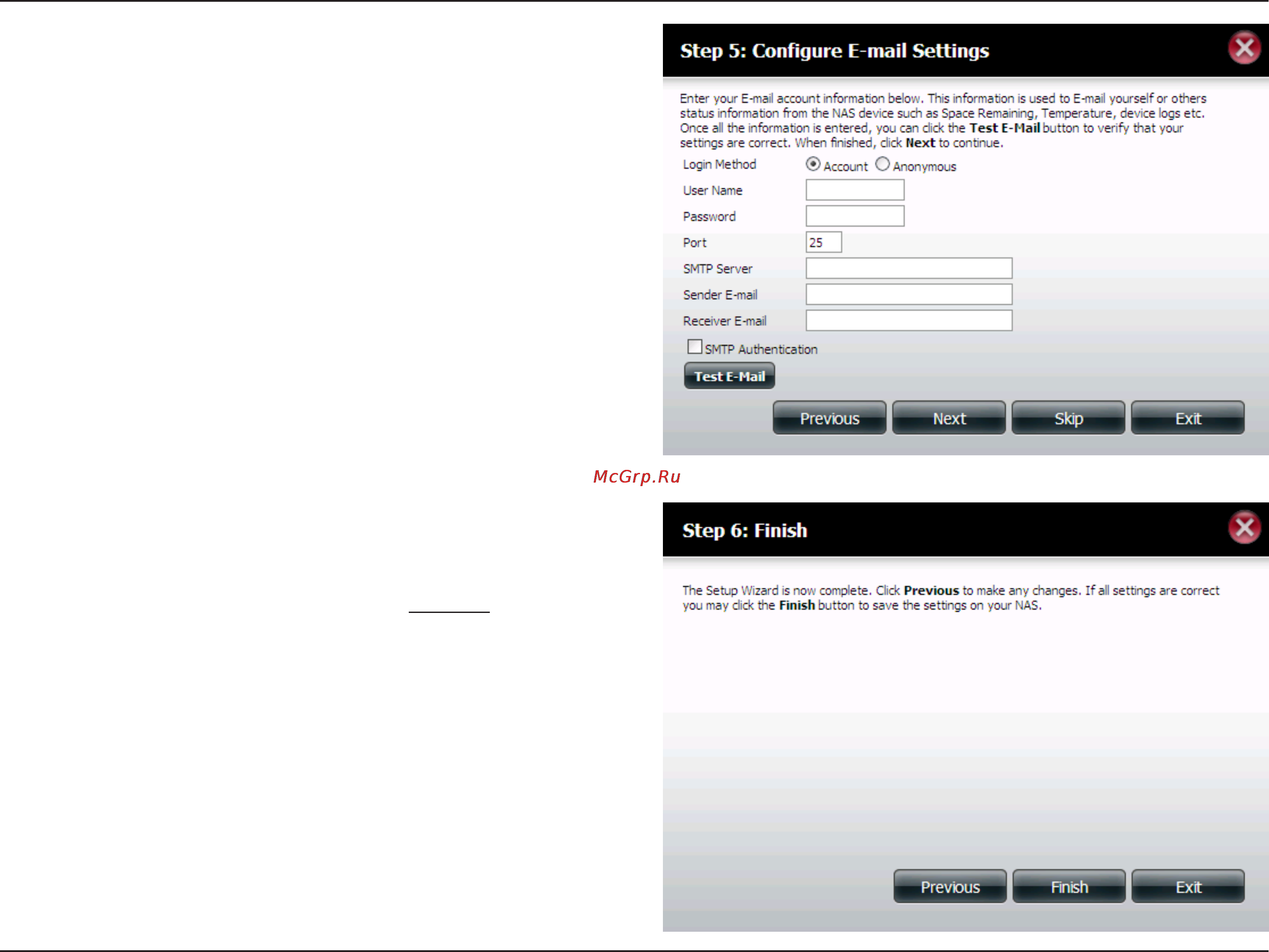

Select Accoun t and enter your e-mail parameters in the
boxes to send event alerts from the device. Click Next to
continue.
Click Finish to save your settings and complete the wizard.
You may click the Previous button to go back and edit your
settings or click Exit to end the wizard without saving the
settings.
