33D-Link DNS-320 User Manual
Section 4 - Conguration

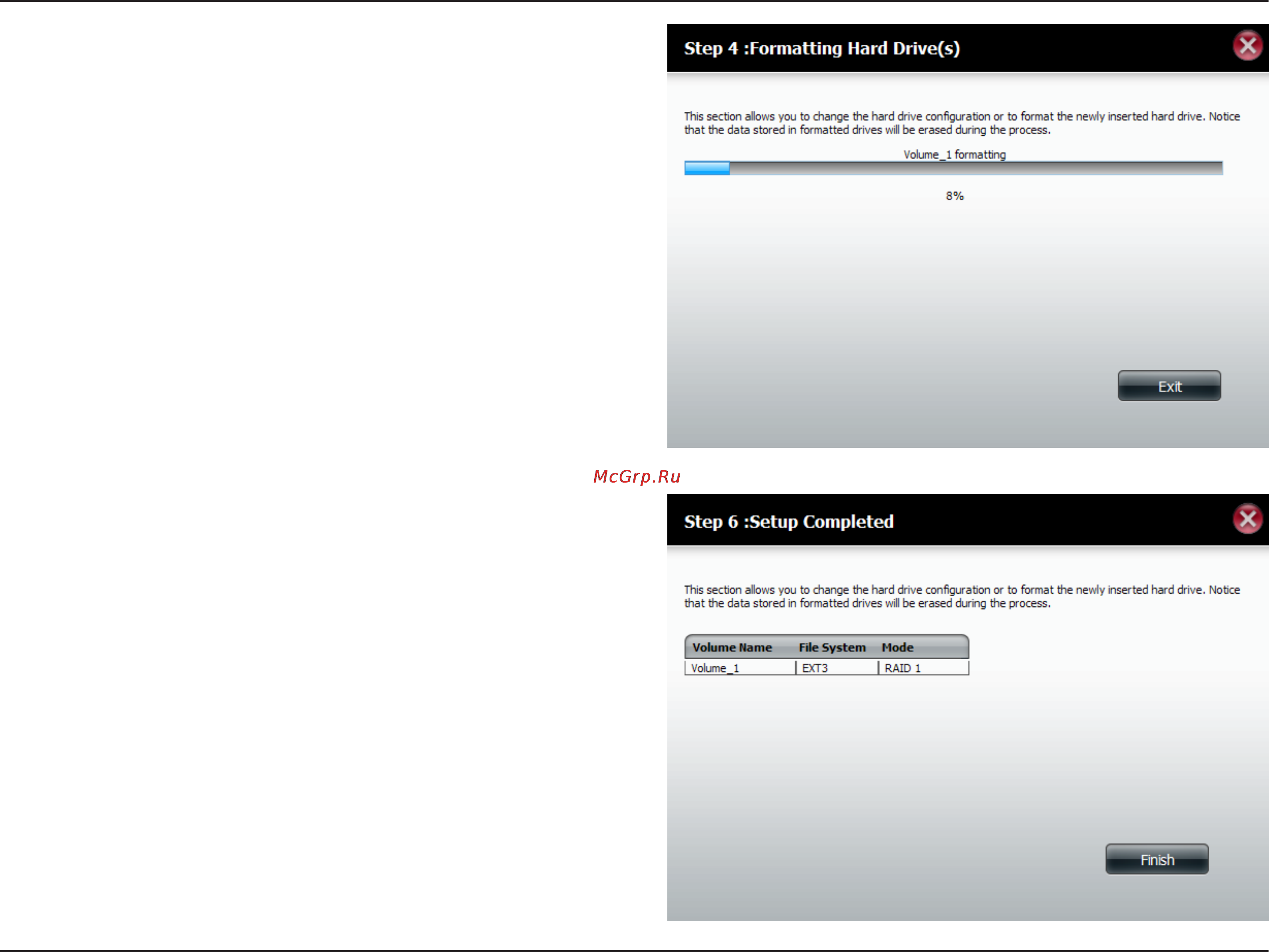

During the formatting process a progress bar is displayed.
When the formatting is completed the wizard displays the nished
Volume Conguration table. Click Finish to end the wizard.
