39D-Link DNS-320 User Manual
Section 4 - Conguration

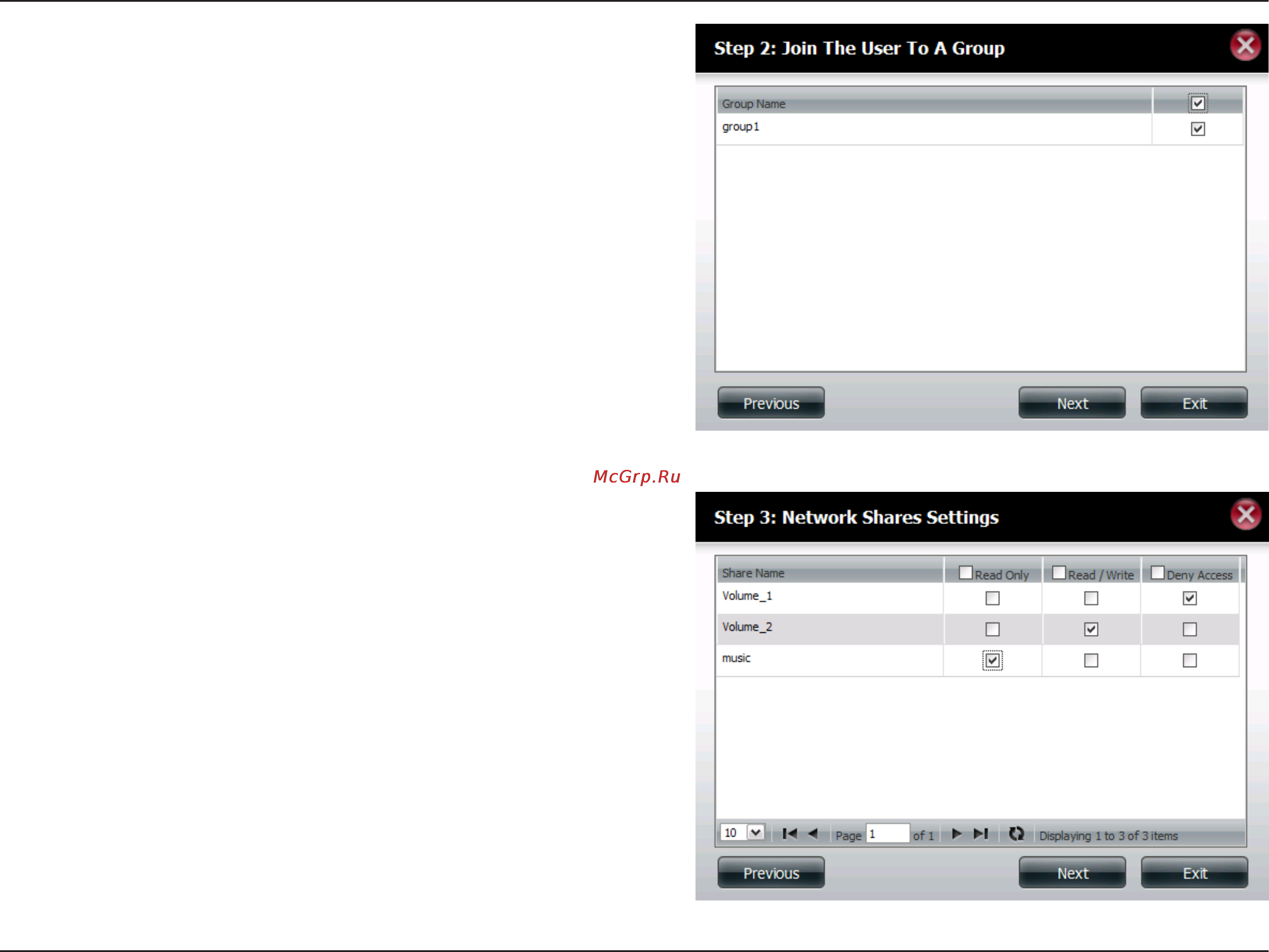

Here the user can congure the appropriate Network Access
settings for the user by simply selecting one of the following
options: Read Only, Read/Write or Deny Access.
Click on the Previous button to return to the previous window.
Click on the Next button to accept the change and continue
to the next window.
Click on the Exit button to discard the changes made and
return to the User/Group window.
Step 3:
Here you can add this user account to a group. Select the
appropriate Group Name by clicking the check box.
Click on the Previous button to return to the previous window.
Click on the Next button to accept the change and continue
to the next window.
Click on the Exit button to discard the changes made and
return to the User/Group window.
Step 2:
