45D-Link DNS-320 User Manual
Section 4 - Conguration

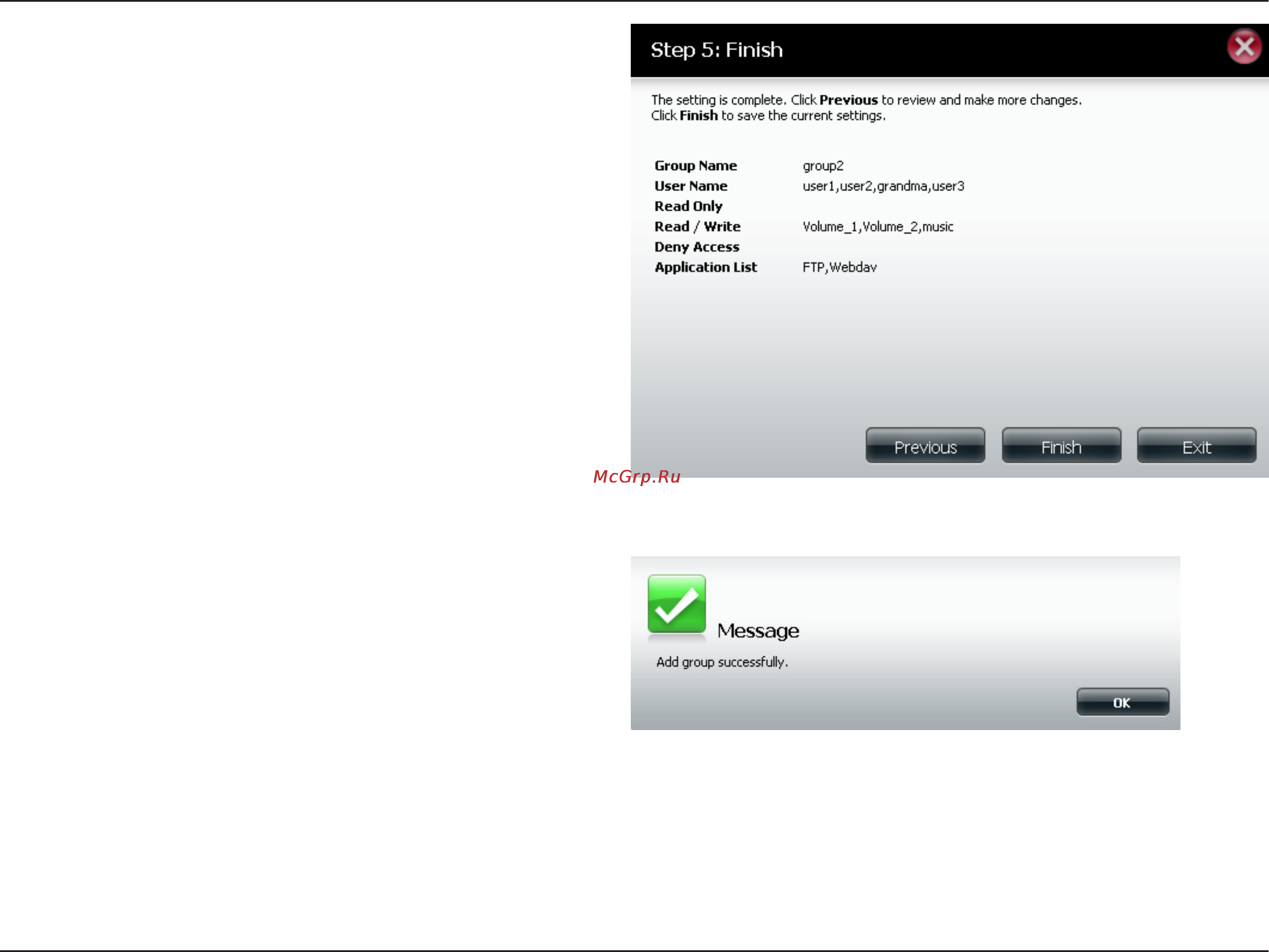

A nal message appears indicating the group was created
successfully and added to the ShareCenter Pulse conguration.
Success:
Verify the settings and click Finish.
Click on the Previous button to return to the previous window.
Click on the Finish button to accept the change and completed
the wizard.
Click on the Exit button to discard the changes made and
return to the User/Group window.
After the new group has been created, a window will appear
that states the group was created successfully. Click on the
OK button to continue.
Step 5:
