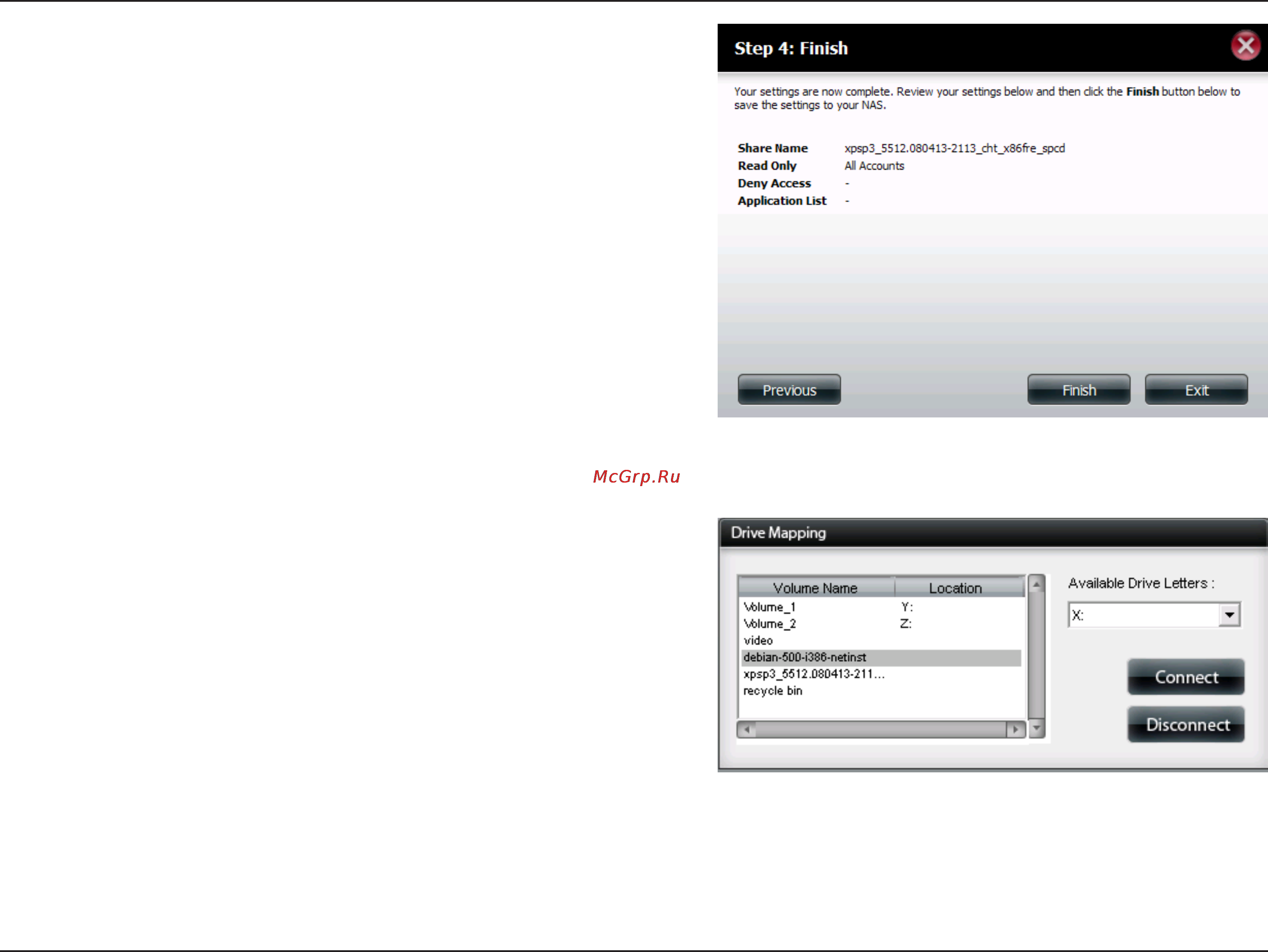

58D-Link DNS-320 User Manual
Section 4 - Conguration
Click Finish to save your settings.
Click on the Previous button to return to the previous window.
Click on the Finish button to accept the change and complete
the wizard.
Click on the Exit button to discard the changes made and return
to the Network Shares Page.
Step 4:
Using the D-Link Storage Utility the ISO Mount Share can now be
mapped to your computer so that you can access it.
Step 5:
