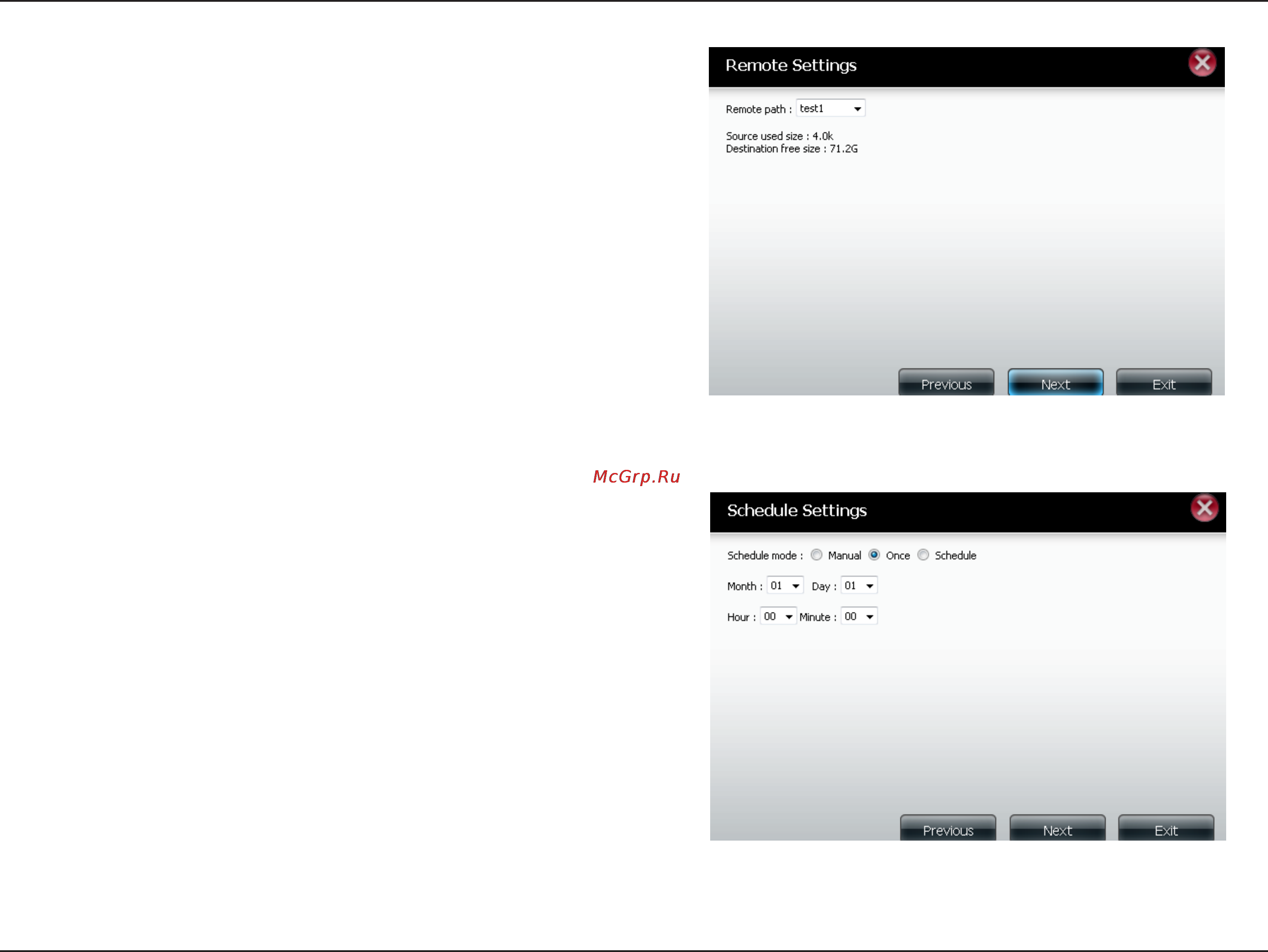

88D-Link DNS-320 User Manual
Section 4 - Conguration
Remote
Settings:
Remote Path: Using the drop-down menu, select the
le system (folder) path to the remote target or source
system for backup.
Schedule
Settings:
Manual: Check either Yes or No selection below to
start the backup (yes) immediately on completion of
the wizard or (no) manually start the backup from the
Remote Backup list.
Once - Select this option to run the Remote Backup
once at a specic date and time set.
Scheduled: Select this option to set the backup to
occur daily, weekly, or monthly per a specic schedule.
