D-Link DNS-722-4 [17/88] Attach the faceplate to the front of the device
![D-Link DNS-722-4 [17/88] Attach the faceplate to the front of the device](/views2/1013364/page17/bg11.png)
13D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation

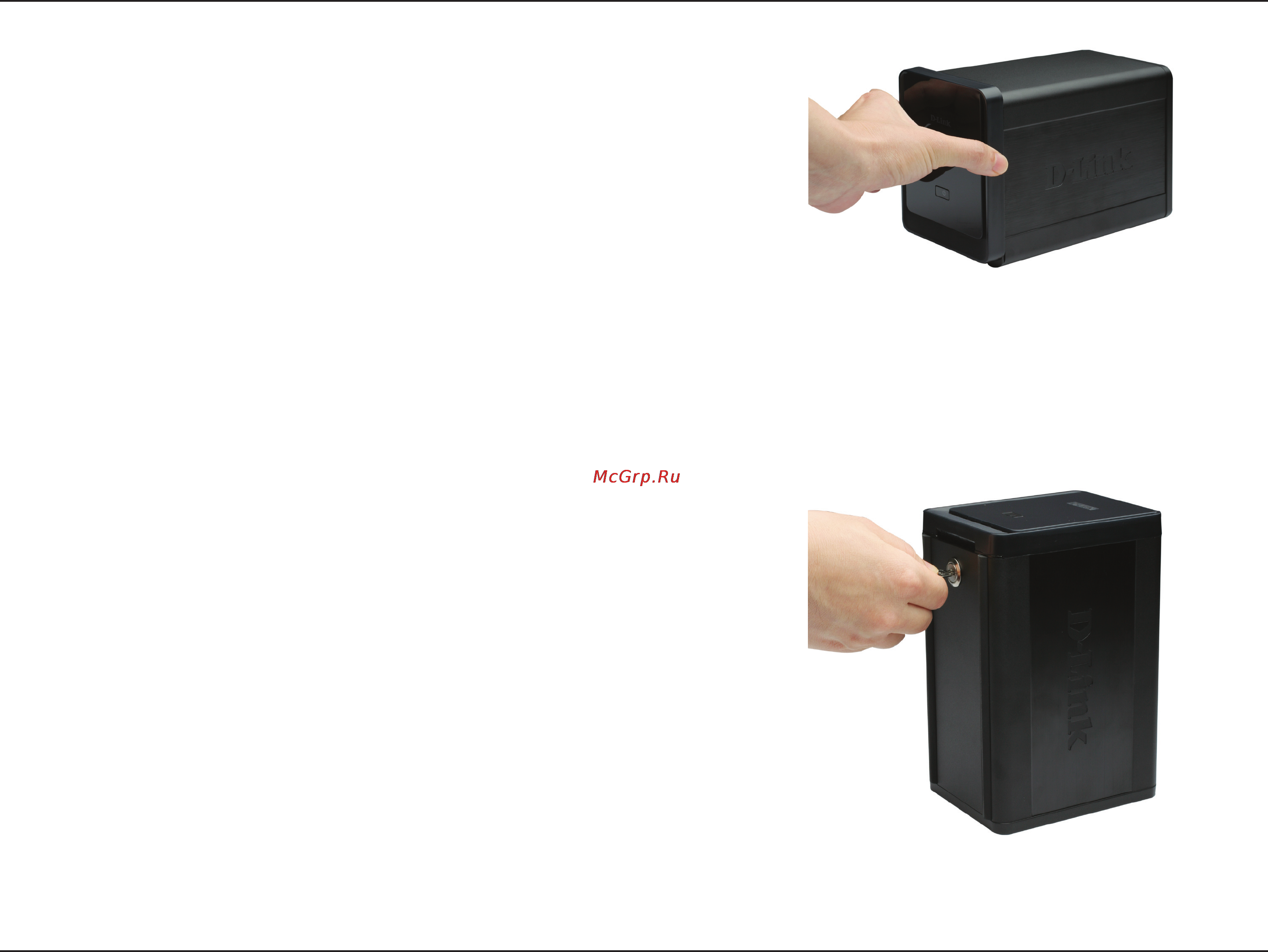

5. Attach the faceplate to the front of the device.
6. Lock the faceplate to secure the Hard Disks.
