D-Link DNS-722-4 [78/88] Set connections to the units
![D-Link DNS-722-4 [78/88] Set connections to the units](/views2/1013364/page78/bg4e.png)
74D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Cue in/Cue
out:
Step forward/
Reverse:
Fast forward/
Reverse:
Click the Cue In or Cue Out button to set the time period for Save Video.
Click to pause the playback and move to next frame or last frame.
Click to pause the playback and move to next minute or last minute.

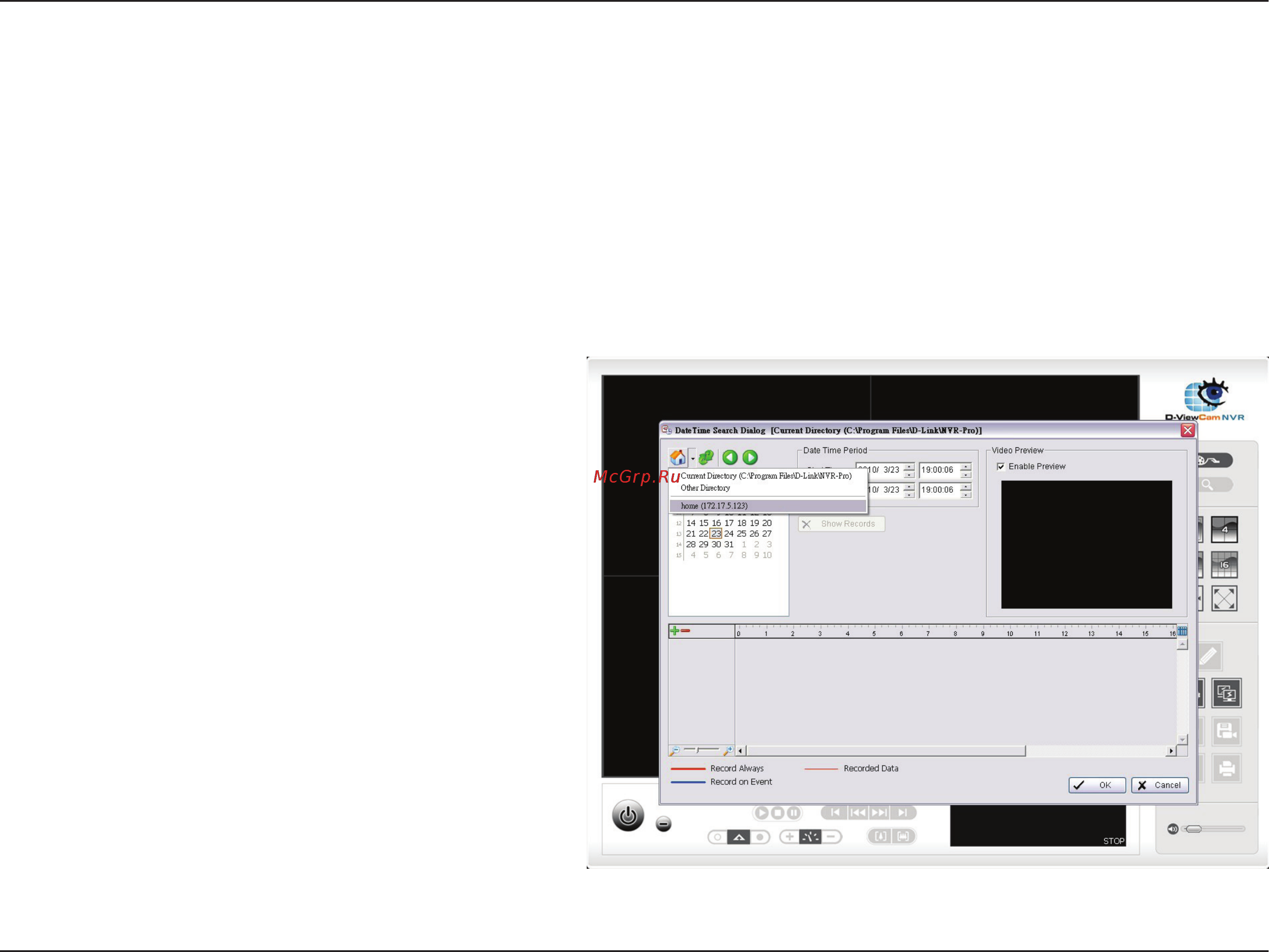

Set Connections to the Units
Step 1: Click the Remote Server button.
Step 2: Input the name of your unit.
Step 3: Input the IP address of that unit.
Step 4: Modify the port if necessary.
Step 5: Input the user name.
Step 6: Input the password.
Step 7: Check the Save Password option.
Step 8: Click the Test Server button to
test the connection between the local
application and the remote unit.
Step 9: Click the Add button to add this
unit into the remote server list.
Step 10: Click the OK button.
The Search, Playback, Smart Search, Video
Enhancement, Print Image, Save Video, Save
Image, Backup functions are the same as the steps
in the Internet Explorer, please see page 60-68.
