46D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
All the configurations can be saved as a
le to the specied location. Click the Save
Conguration button to save the le.
User can restore the conguration le after reset
to factory default le.
Click the Browse button to select the
conguration le and restore it by clicking the
Restore Conguration from File button.
If the NVR is malfunctioning or crashes
unexpectedly, click the Restart button on the
NVR. Restarting the NVR will take about one
and a half minutes.
This will reset all configurations to factory
default. User can select to preserve the IP or
DDNS, thus the remote connection will remain
after reset.

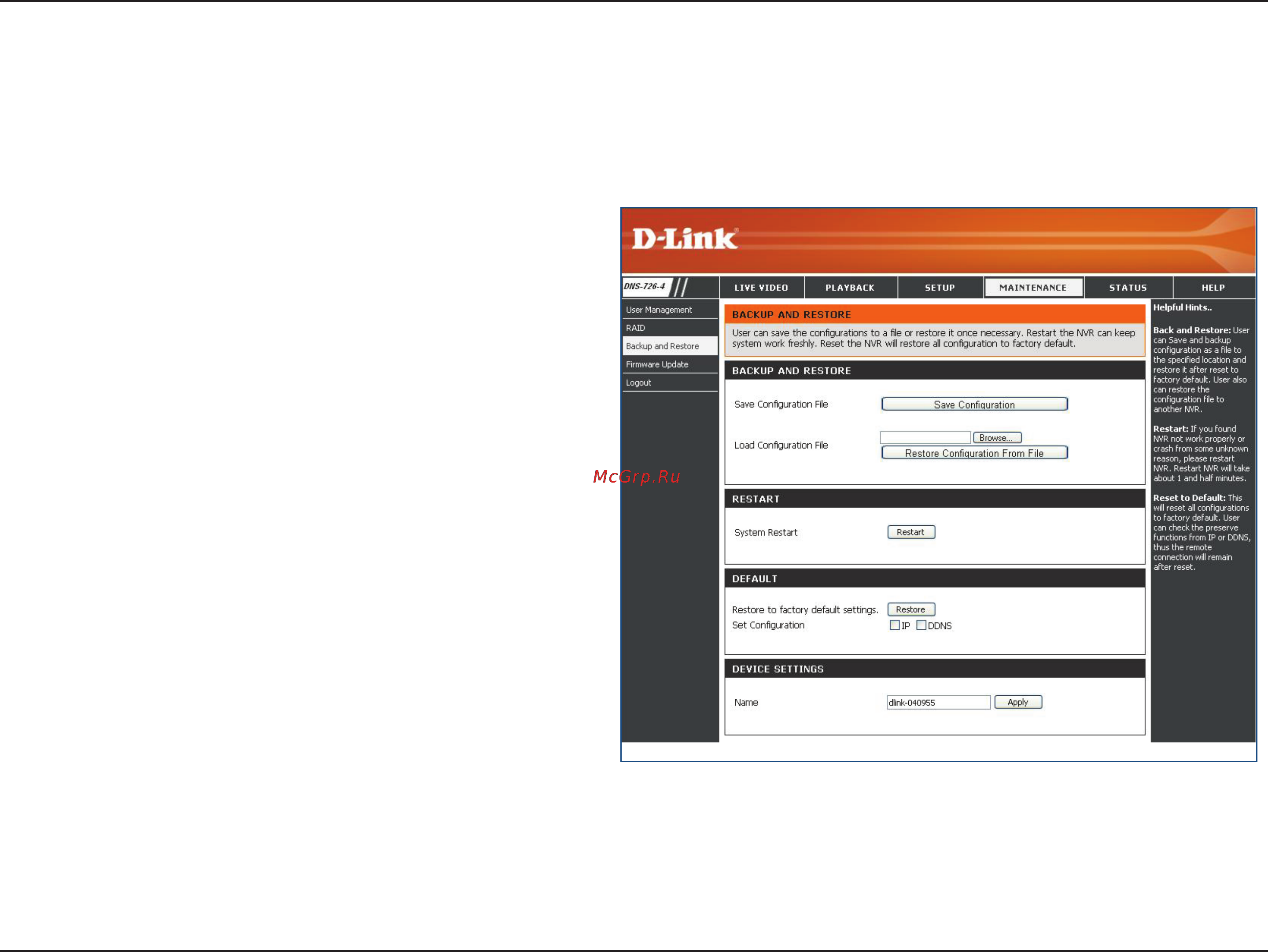

Backup and Restore
Save
Configuration:
Load
Configuration
File:
Restart:
Reset to
Default:
Users can save the NVR conguration to a le and restore it when necessary. Ocassionally, restarting the NVR can
keep the system running smoothly. Reset the NVR to restore all congurations to factory default.
