31D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration

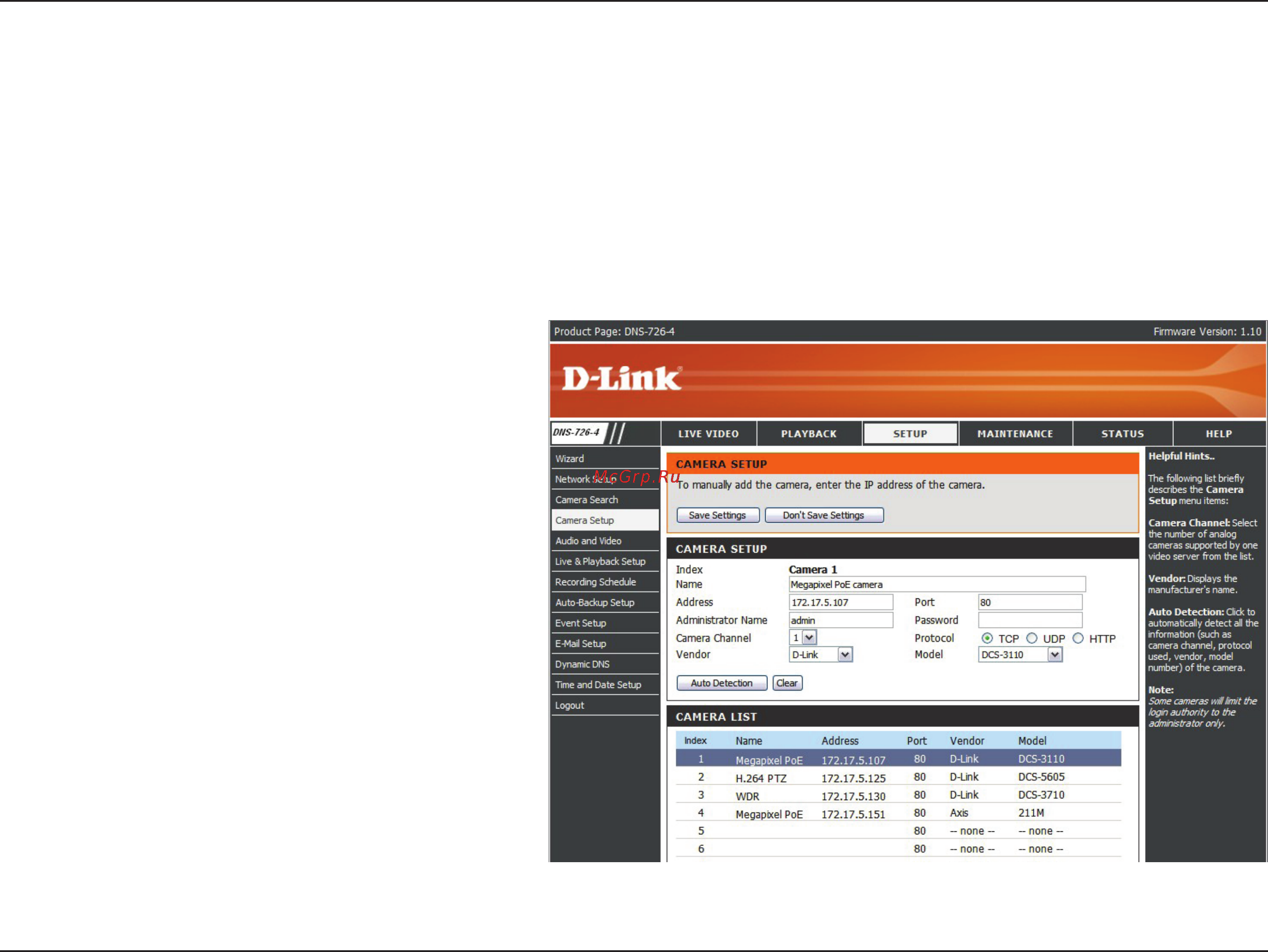

Camera Setup
Step 1: Select the camera which you would like to modify.
Step 2: Modify its information on the top of the page.
Step 3: Click the Save Settings button.
Step 4: If you would like to replace a camera, select that camera, modify its address, port, user name, and password,
and then click the Save Settings button.
Camera Channel:
Vendor:
Auto Detection:
Select the number of analog cameras
supported by one video server from
the list.
Displays the manufacturer’s name.
If you have already input the camera
IP, you may simply click this button to
automatically detect camera information
(such as the channel, protocol, vendor,
and model number).
Note
Some cameras will limit the login authority
to the administrator only.
