22D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration

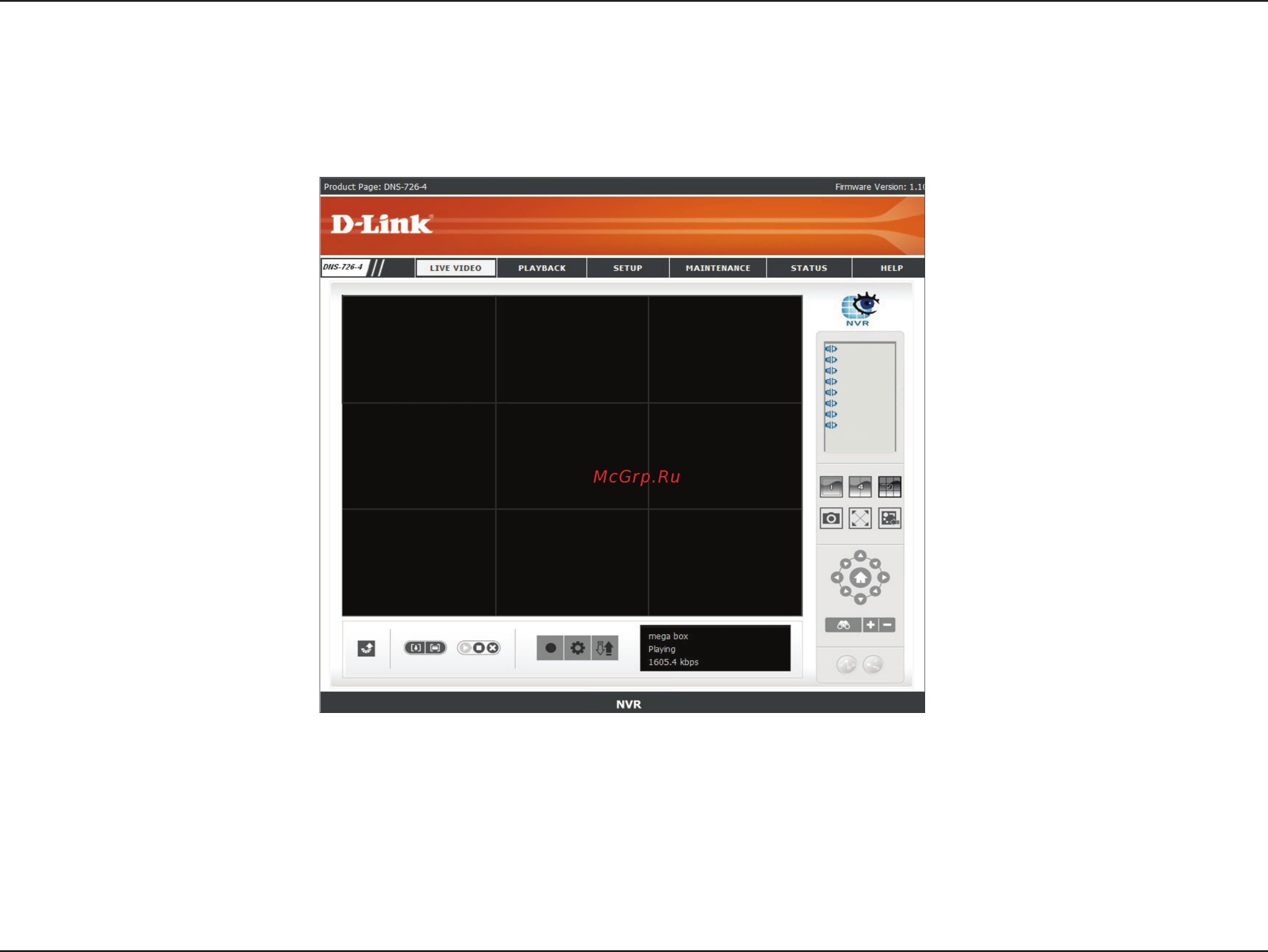

After login, you will be redirected to the NVR web UI:
