42D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Maintenance

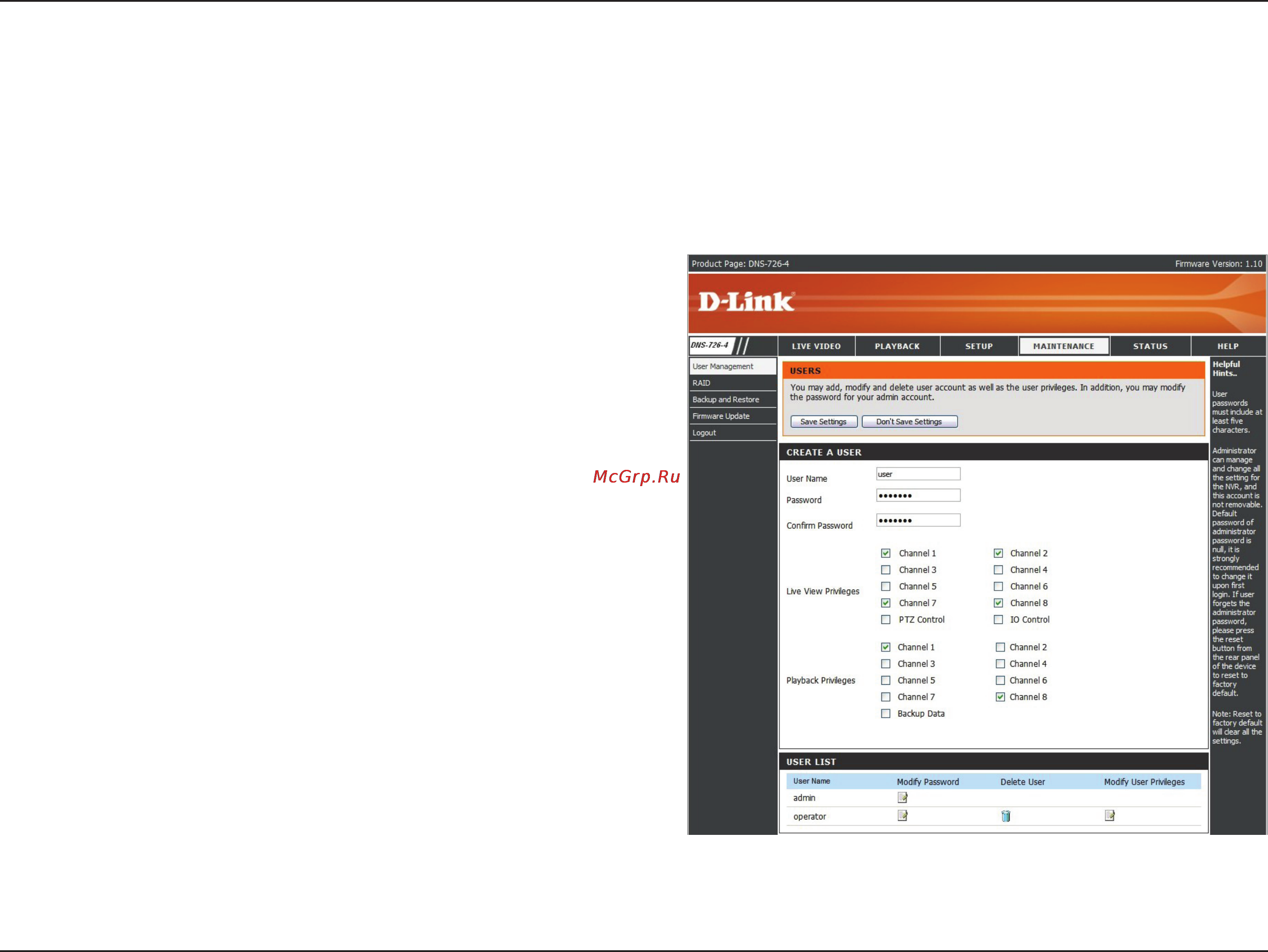

Create A User
Step 1: Input the new user name.
Step 2: Input the password. Type the password again to
conrm.
Step 3: Select the live view cameras and PTZ/ IO Control
functions which this user can access.
Step 4: Select the playback channels and Backup Data
function which this user can access.
Step 5: Click the Save Settings button to create a new user.
Note
The Administrator account can configure all functions of the NVR. This account
cannot be deleted. The default password for “admin” is blank. Setting a password
after the first login is strongly recommended. If the administrator password is
lost, you may hold the reset button on the rear panel of the device to reset the
NVR to factory defaults. Note: This will erase all the previously-saved settings.
User List
Change User’s Password
Step 1: Click the Modify Password icon of the user name
who you would like to modify.
Step 2: Input the password of the user. Type the password
again to conrm.
Step 3: Click the Apply button to save. Click Cancel to abort.
This option allows you to add users and modify or delete accounts. You may also congure the priviledge settings for
the users.
