30D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration

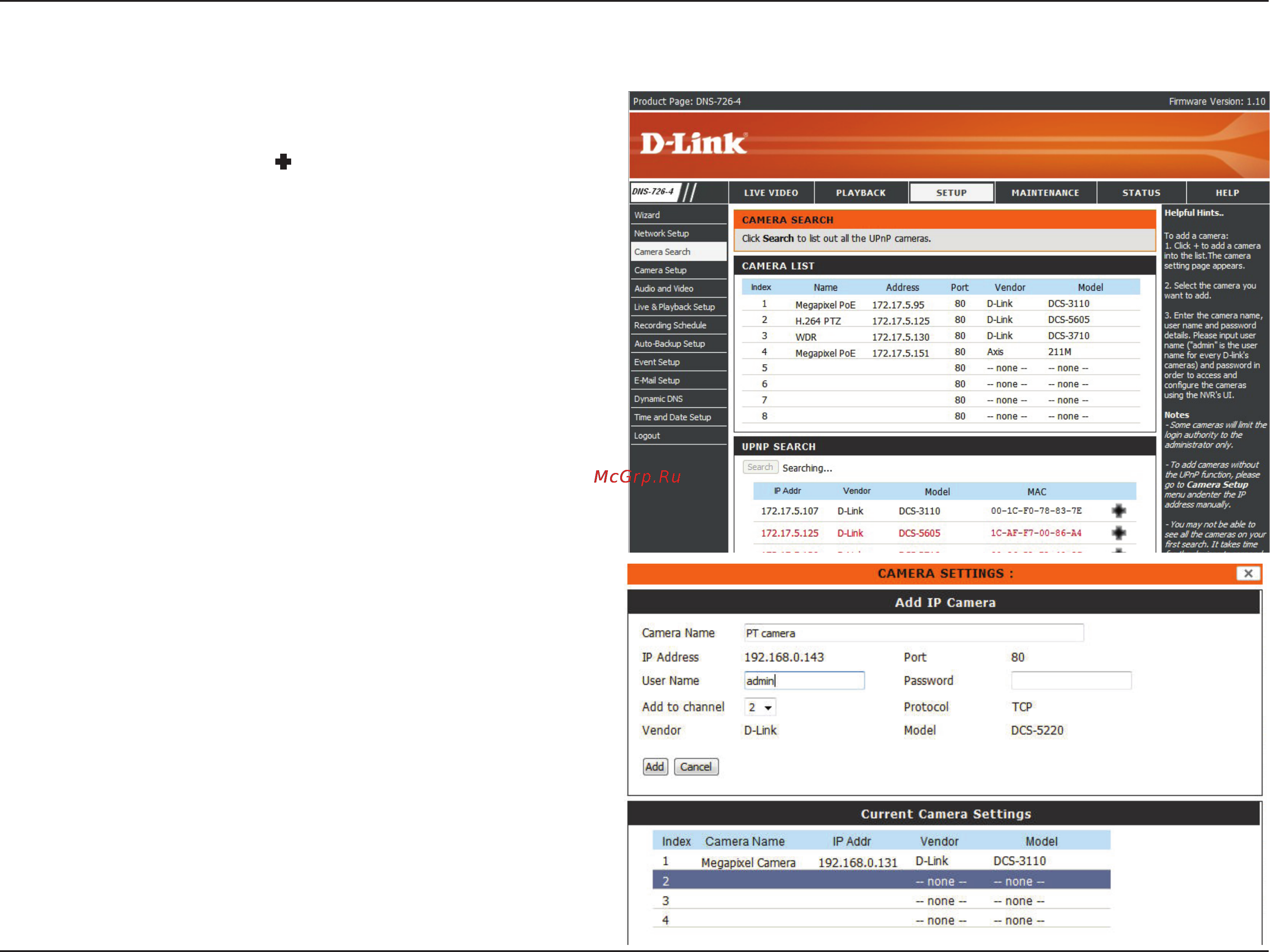

Camera Search
Step 1: Click the Search button to search for UPnP
cameras. The system will list all the available cameras
at this moment. Click the “+” icon to add this camera into
your camera list.
Step 2: After clicking the icon, the camera setting page
will pop-up. Click on the camera that you want to add.
Step 3: Enter the camera name, user name, and
password of the camera.
Note
• Some cameras will limit the login authority to the administrator only.
• To add cameras without the UPnP function, please go to the Camera
Setup menu and enter the IP address manually.
• You may not be able to see all the cameras on your first search. It may
take a moment for the devices to respond to the UPnP request. Please
click Search again if cameras are not immediately displayed.
Step 4: Click the Add button to add the selected
camera.
Step 5: After clicking Add, the updated information will
be displayed in the Camera List.
Step 6: Repeat step 2 through 5 to add other cameras
into your list.
