35D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Set Recording Schedule
Day:
Week:
Insert:
Delete:
Configure:
Schedule the cameras to turn the recorder on and
off at the same time every day according to your
preference.
Schedule the cameras differently for each day of the
week.
Insert new schedules (refer to the next page).
Delete the selected schedule.
Modify the schedule and recording mode setting.

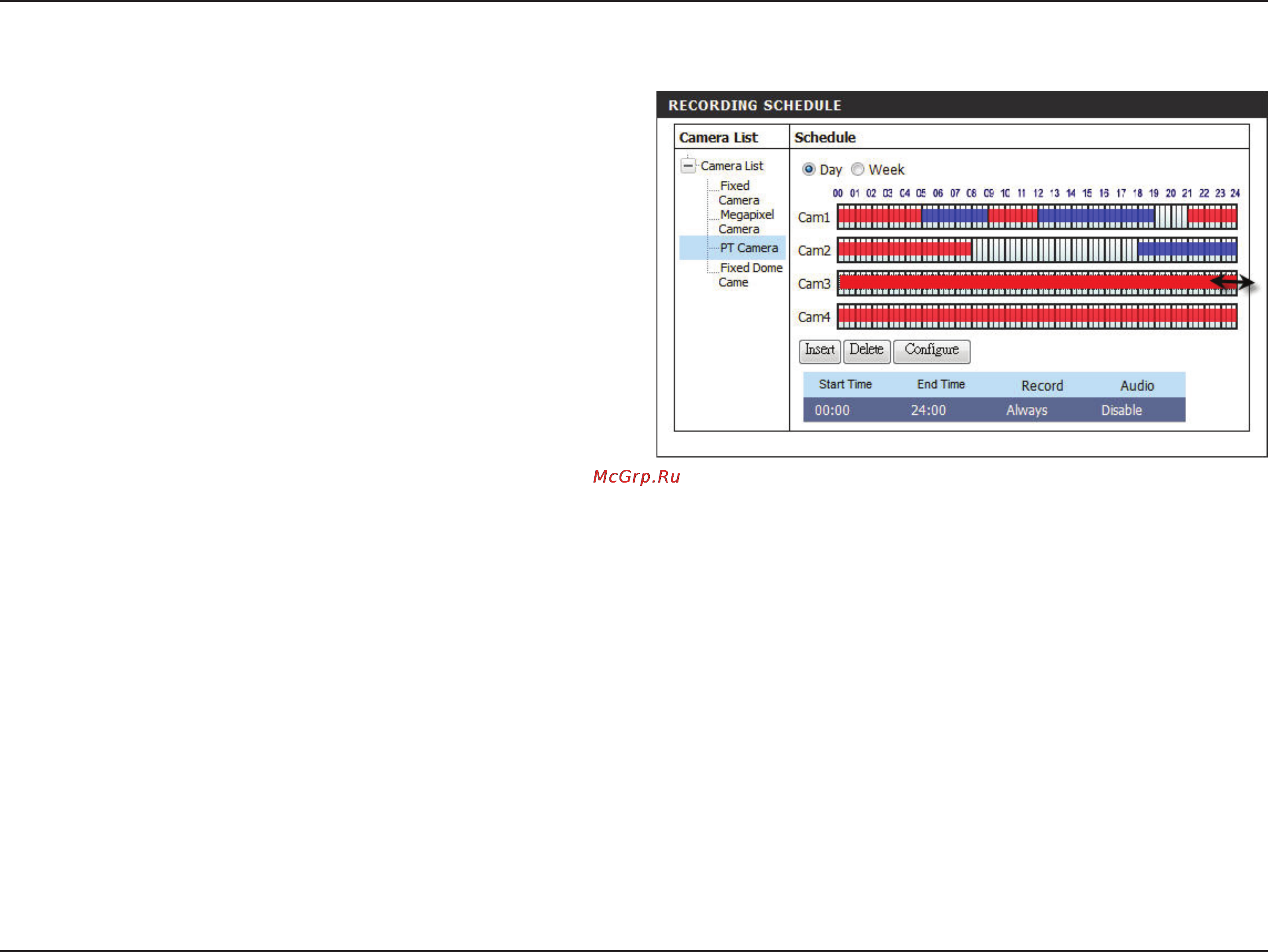

Set Up the Schedule
Step 1: Select the schedule of the camera you want to modify.
Step 2: Click the column at the bottom of the page.
Step 3: The default recording schedule is from 00:00 to 24:00. If you want to modify the time slot, click the Congure
button.
