54D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Single/Quad
Split Screen:
Snapshot:
Full Screen:
e-map:
PTZ Camera
Control:
Zoom:

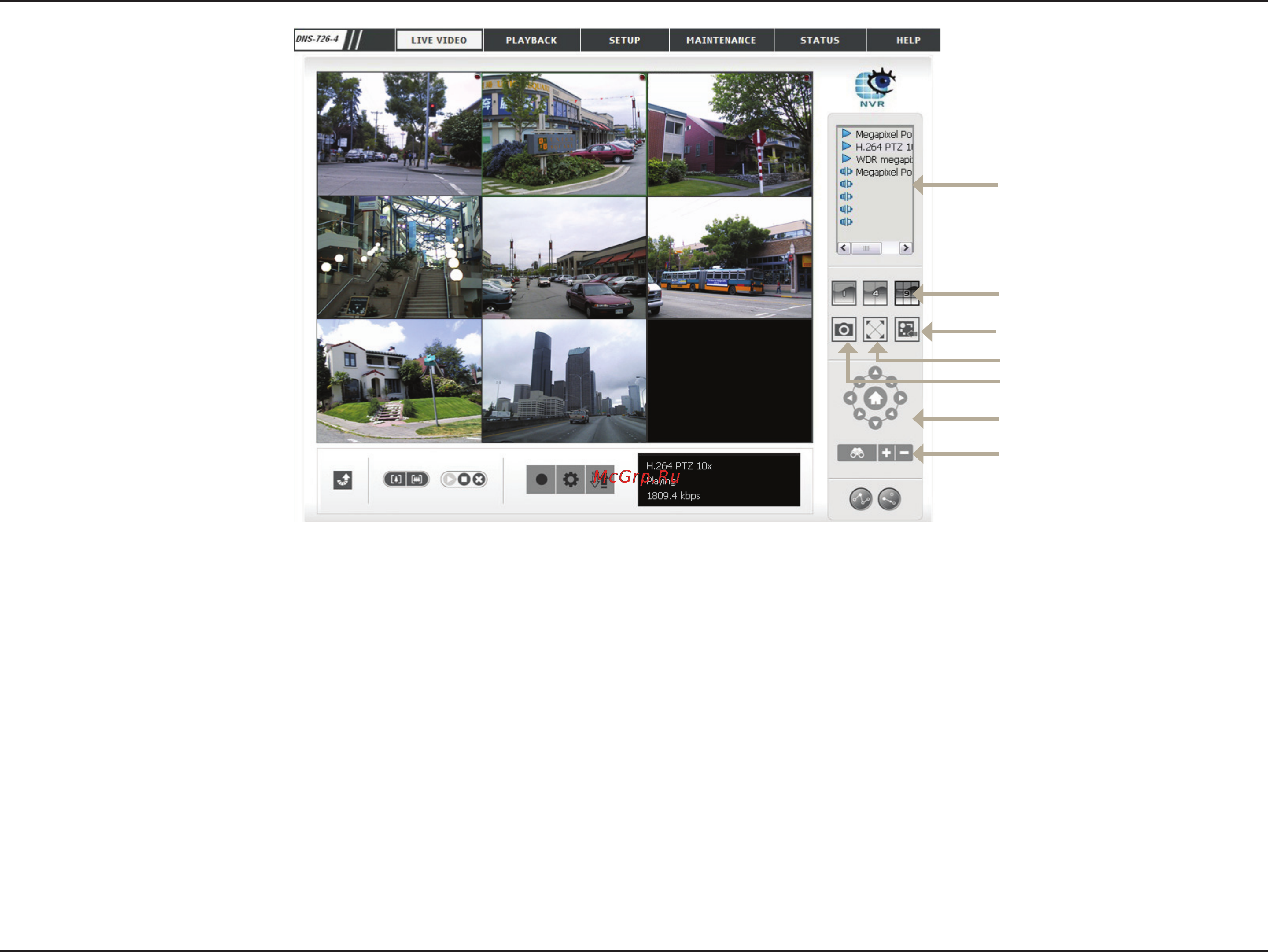

User can choose to view a single camera or 4 cameras at a time.
Select the snapshot function to capture a specic video image immediately.
Select to display the video with full screen. Press ESC button on the keyboard to return to normal display.
Display your emap le. Max. size 20KBytes of BMP and JPG le.
You may control the camera view by utilizing the PTZ camera control panel to adjust the camera’s view. This is only
available with cameras that support the PTZ function.
Click the + or - button to zoom in or zoom out. This option is only available with cameras that support the optical zoom
function.
Camera List
1/4/9 Split Screen
Full Screen
Snapshot
PTZ Camera Control
Zoom
e-map
