39D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration

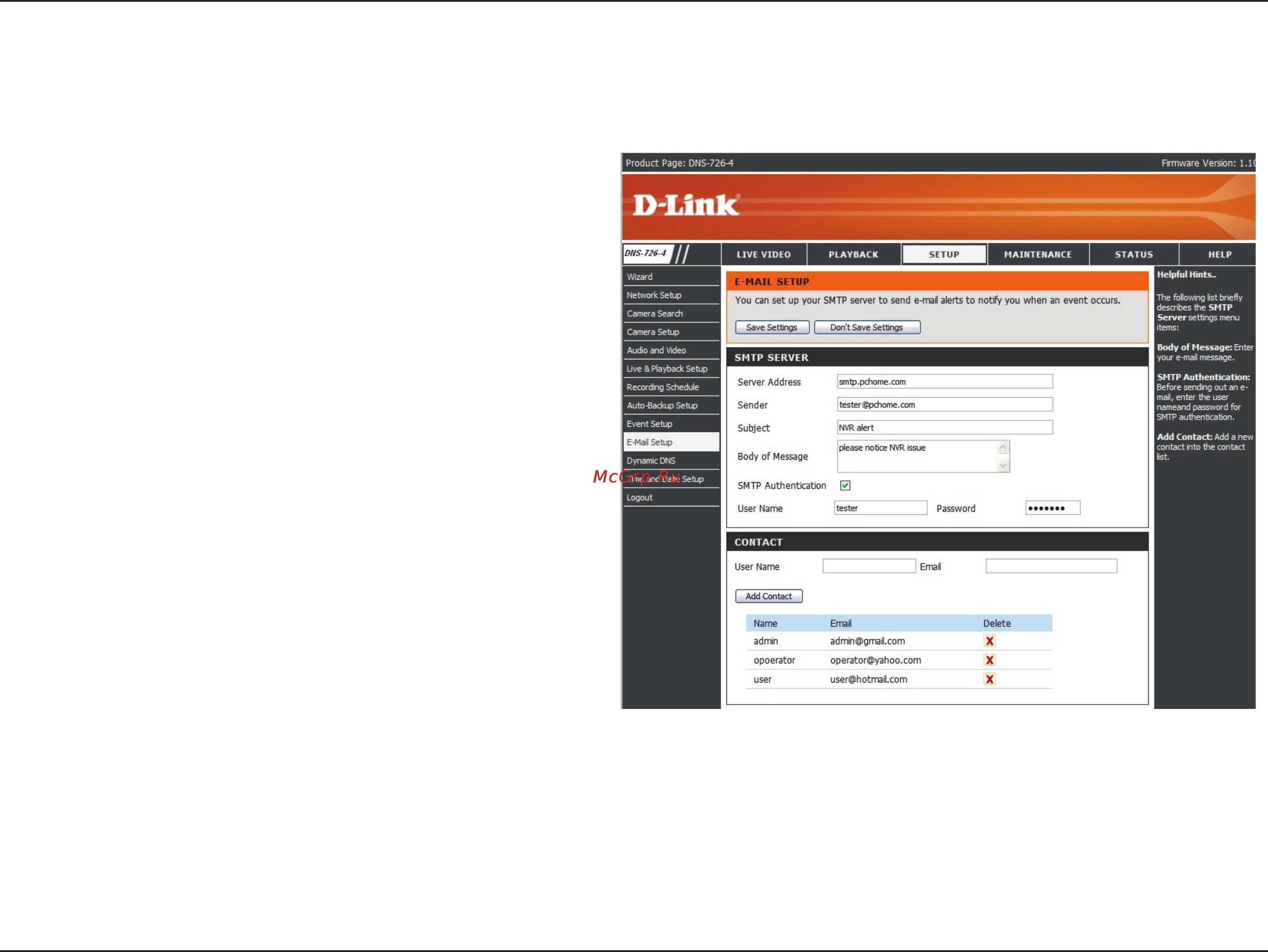

E-mail Setup
Server Address:
Sender:
Subject:
Body of Message:
SMTP
Authentication:
User Name:
Password:
SMTP (Simple Mail Transport Protocol) server
IP address.
Sender email address.
The E-mail subject.
The E-mail content.
Provide the user name and password to the
SMTP server for identication before sending
E-mail.
Input the SMTP server login user name.
Input the SMTP server login user password.
Add Contacts
Step 1: Insert the name of a new contact.
Step 2: Insert the E-mail address of this new contact.
Step 3: Click the Add Contact button.
Step 4: Click the Save Settings button to save the new contact list.
This section allows you to congure the sender’s email account and the contact or receiver’s list.
