68D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Print Image

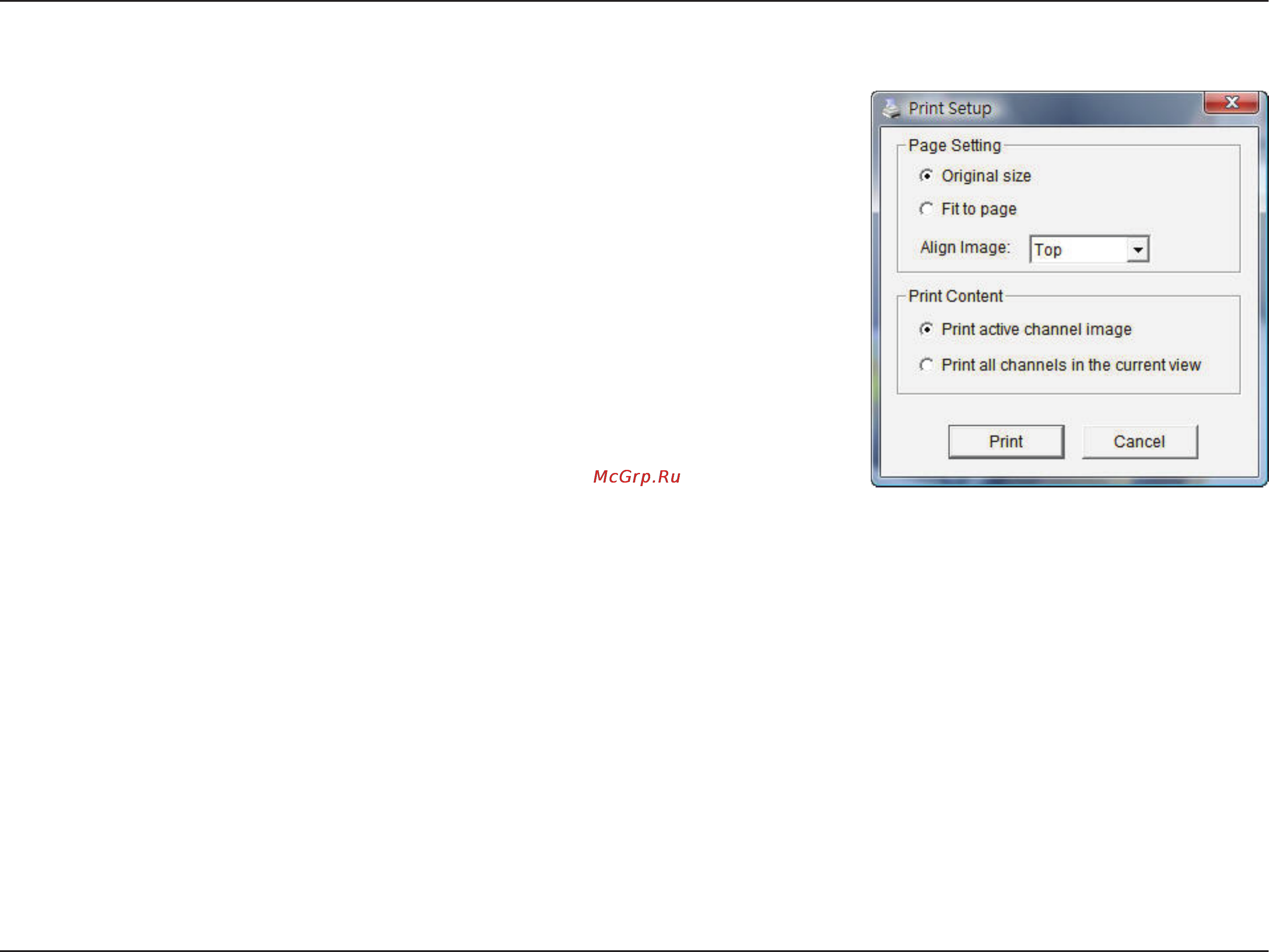

Step 1: During playback, user can choose to print a selected image.
Step 2: Click the Print button when the desired image is shown on the
screen.
Step 3: Select desired print settings.
Page Setting
Step 4: Click the Print button.
Print in
original size:
Fit the page:
Align Image:
Print Content:
Select this option to have the image print in original size.
Select this option to t the image to the page.
Align the top, center or bottom.
Print the image from currently selected channel or all the channels shown
on the screen.
