50D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
System Log

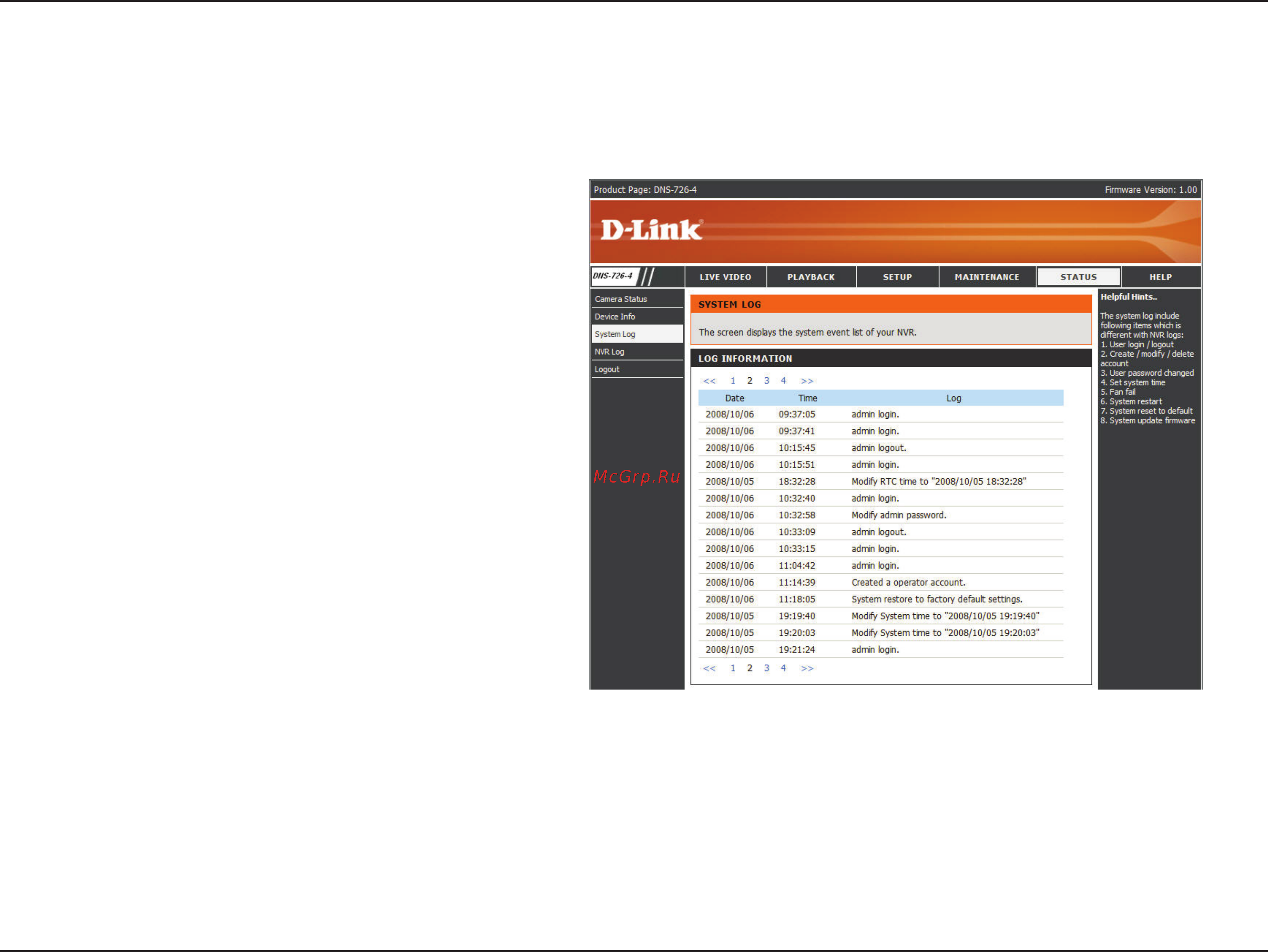

This page displays the system event list of your NVR. The System Log is different from the NVR Log as it includes
the following items:
1. User login/logout
2. Modify/delete account
3. System restart
4. System reset to default
5. System rmware update
