41D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
Time and Date Setup
Time Zone
Settings:
NTP Server:
From My
Computer:
Manually Set
the Time and
Date:

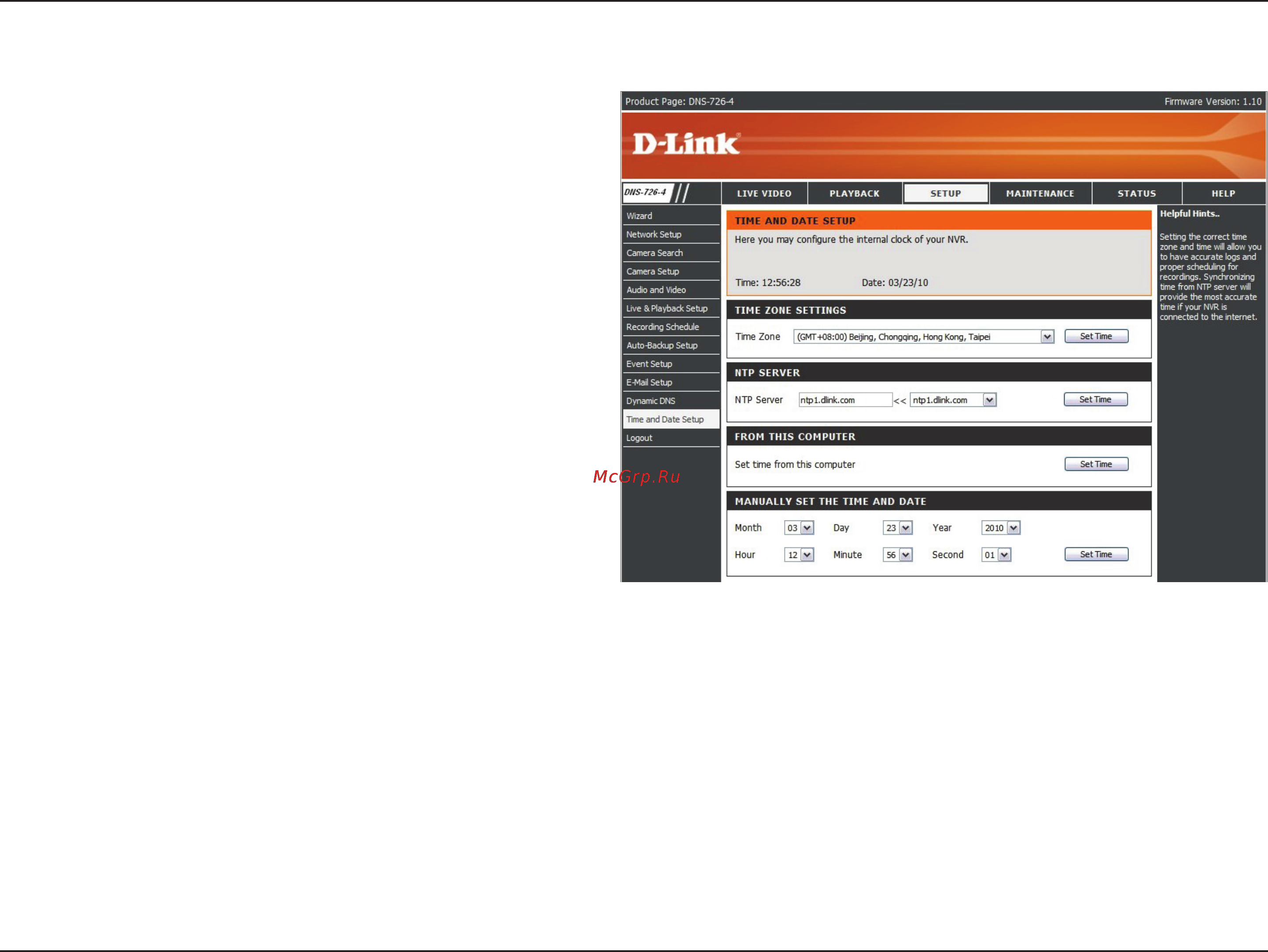

Select your time zone from the pull-down list.
Click Set Time to apply the settings.
There are three choices for setting the
time.
Select or enter an NTP Server here. An NTP
Server is a server on the Internet that maintains
time. The NVR will contact the server you
entered and receive the correct time. Click Set
Time after entering an NTP Server.
Click Set Time to have the NVR set its own clock
according to the time on your computer.
Enter the complete time and date settings
manually. Click Set Time to apply the
settings.
