19D-Link DNS-722-4/DNS-726-4 User Manual
Section 3 - Configuration
This section will show you how to congure your new D-Link NVR using the Web-based Conguration Utility.
To access the conguration utility, click the NVR name or IP on the NVR Search Utility or manually open a web-
browser (Internet Explorer only) and enter the IP address of your NVR.

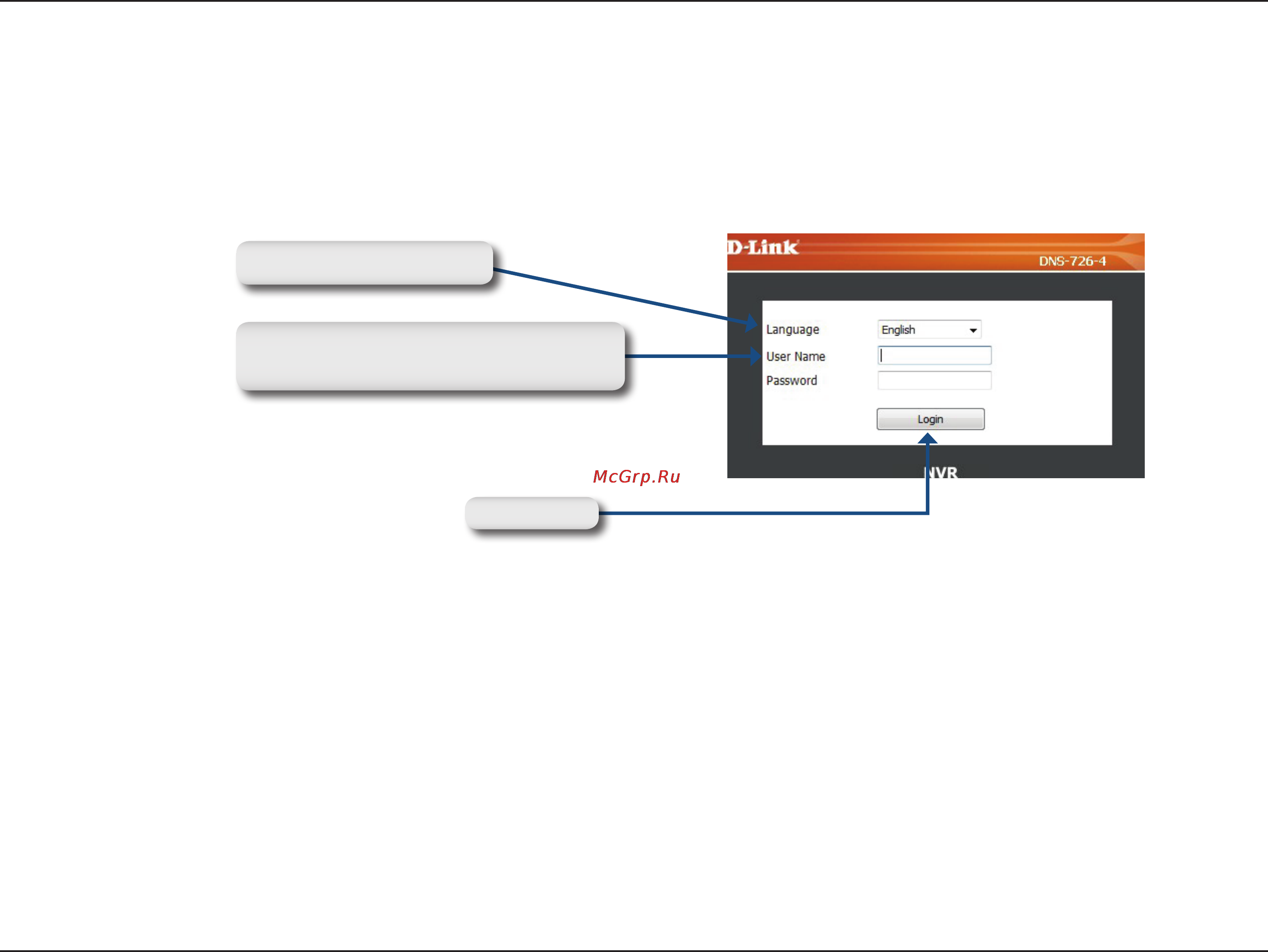

The Login screen will appear:
When logging into the NVR for the rst time, you will be asked to choose a drive conguration type and format the
drives. There are four options: Standard, JBOD, RAID 0 and RAID 1. Standard congures each disk as a separate
volume, while JBOD combines both disks into a single volume. See page 42 for more details on using the RAID
congurations.
Note: Refer to page 40 for instructions on how to change the password of your admin account.
Click Login
Login
Type “admin” in the user name eld and
leave the password blank by default.
Select display language
