Asus tuf sabertooth z97 mark s [114/176] Chapter 3

3-44

Chapter 3: BIOS setup

Chapter 3

Power On By RTC [Disabled]

This item allows you to enable or disable the RTC (Real-Time Clock) to generate a wake

event and congure the RTC alarm date. When enabled, you can set the days, hours,

minutes, or seconds to schedule an RTC alarm date.

Conguration options: [Disabled] [Enabled]

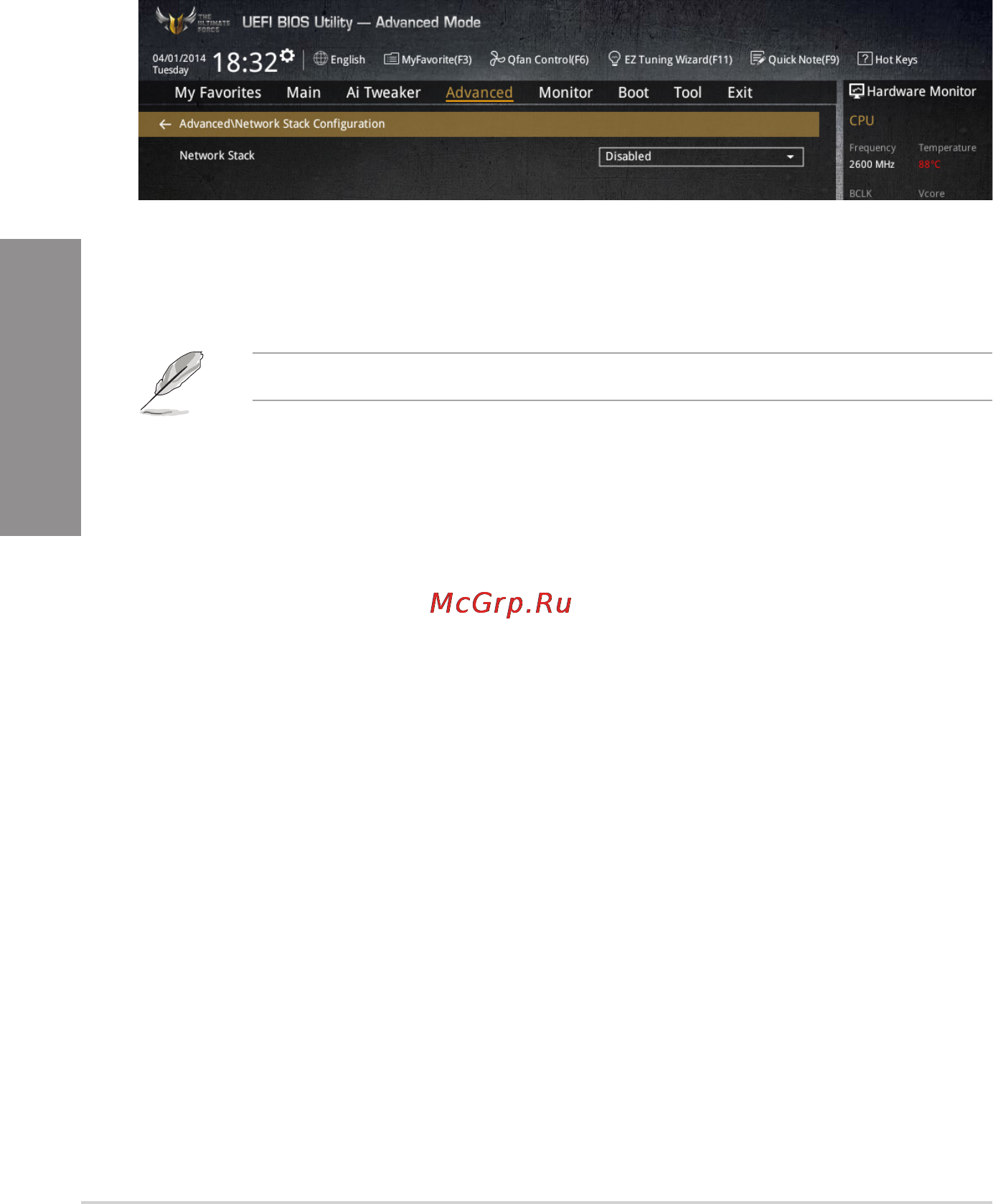

3.6.9 Network Stack Configuration

Network stack [Disabled]

This item allows you to disable or enable the UEFI network stack.

Conguration options: [Disabled] [Enabled]

The following item appears only when you set the Network Stack to [Enabled].

Ipv4/Ipv6 PXE Support [Enabled]

This item allows you to enable or disable the Ipv4/Ipv6 PXE wake event.

Conguration options: [Disabled] [Enabled]
