Asus tuf sabertooth z97 mark s [25/176] Chapter 1

ASUS SABERTOOTH Z97 MARK S

1-11

Chapter 1

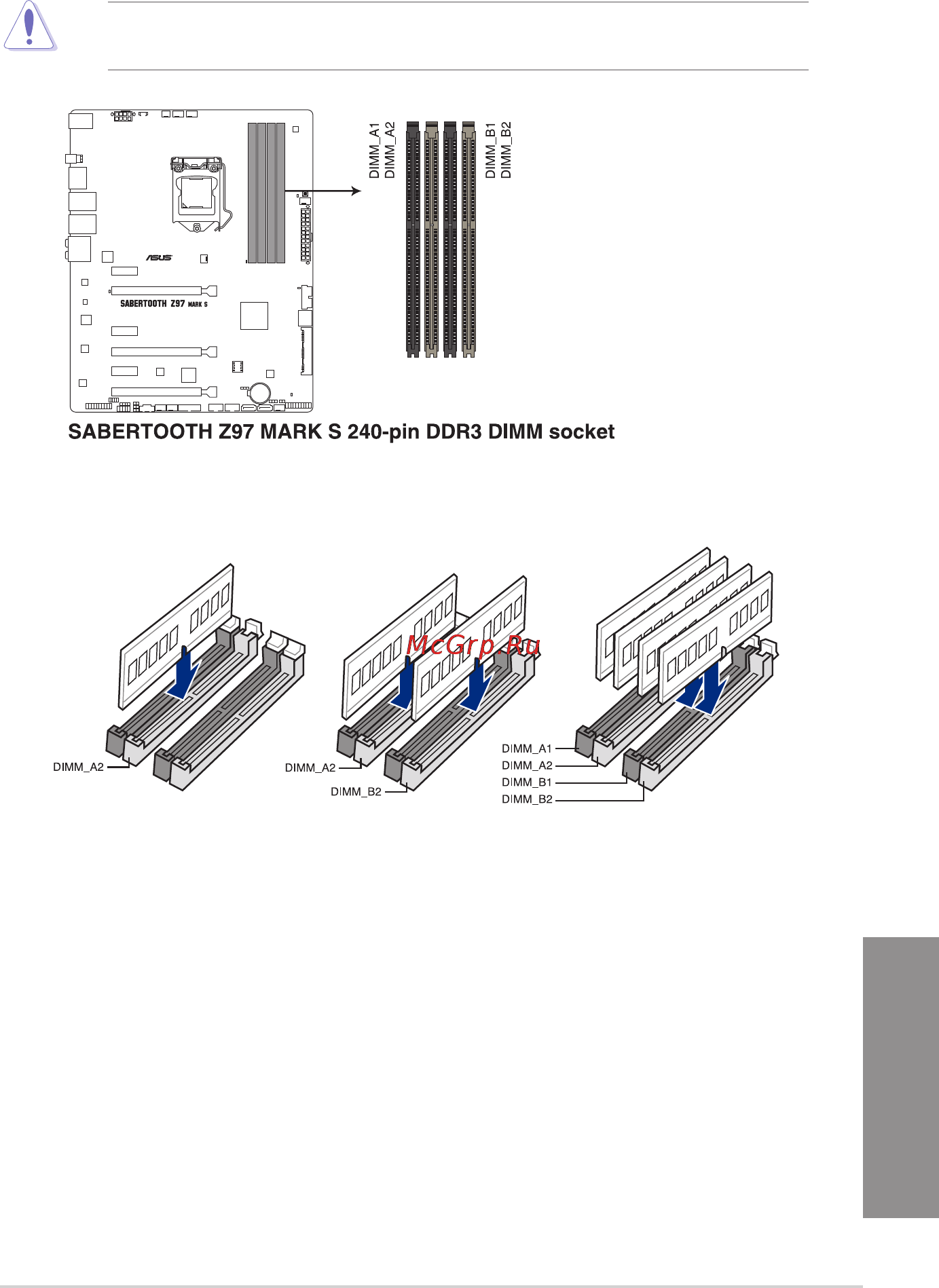

Recommended memory configurations

1.2.4 System memory

The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules

(DIMM) slots.

A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR

or DDR2 memory module to the DDR3 slot.
