Asus tuf sabertooth z97 mark s [129/176] Chapter 3

ASUS SABERTOOTH Z97 MARK S

3-59

Chapter 3

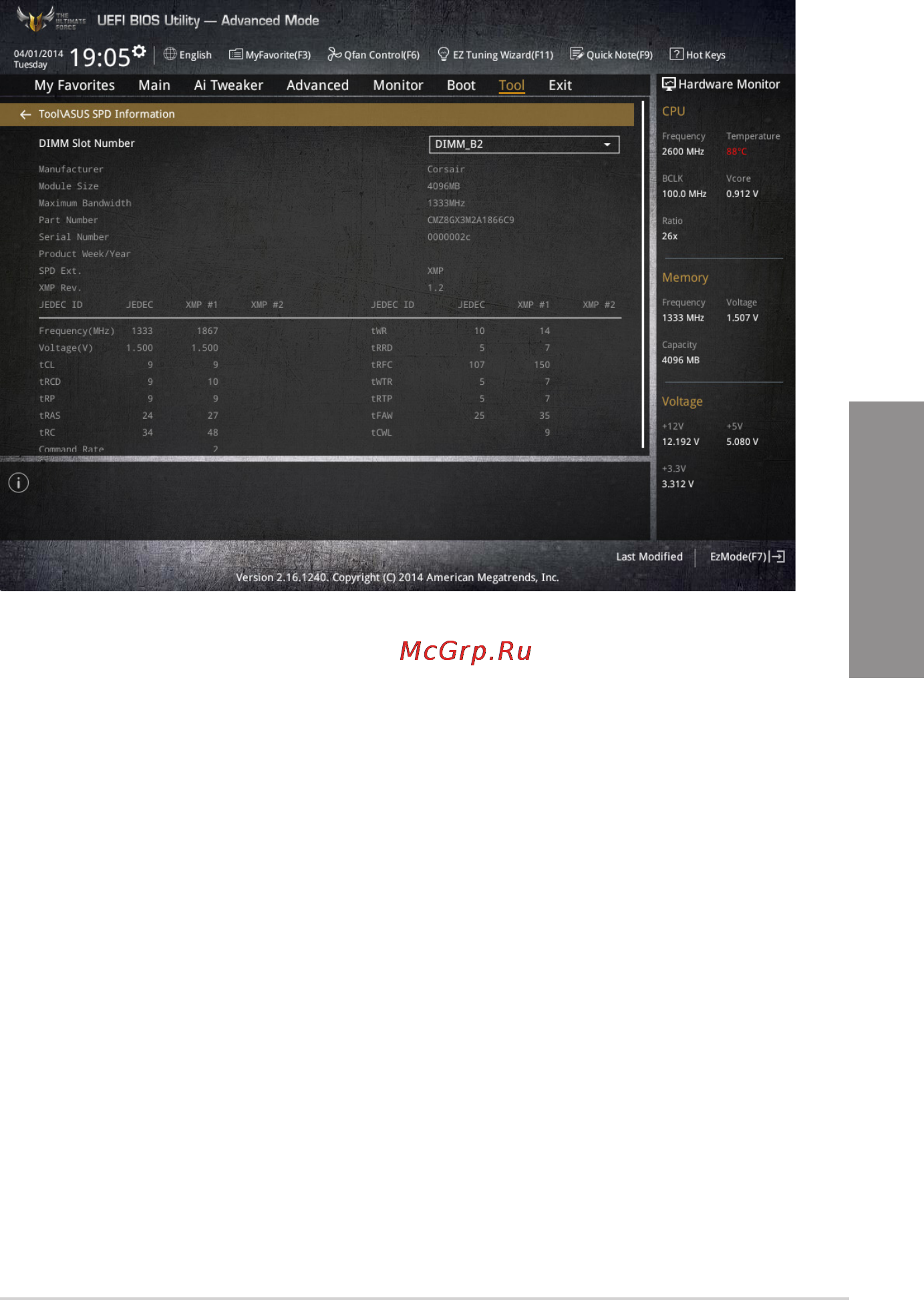

3.9.3 ASUS DRAM SPD Information

This item allows you to view the DRAM SPD information.
