Asus tuf sabertooth z97 mark s [56/176] Chapter 2

2-2

Chapter 2: Basic installation

Chapter 2

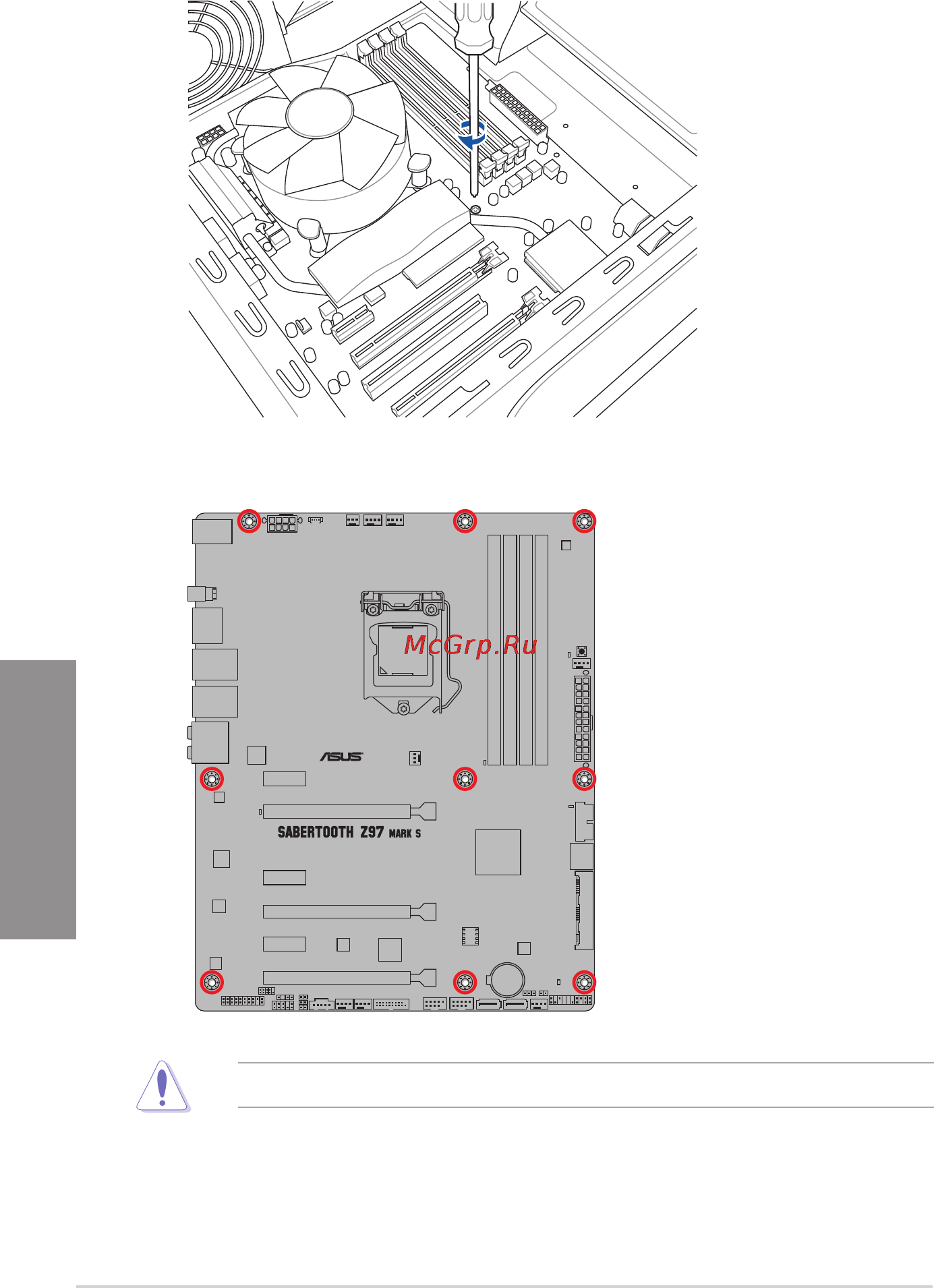

3. Place nine screws into the holes indicated by circles to secure the motherboard to the

chassis.

DO NOT over tighten the screws! Doing so can damage the motherboard.
