ASUS SABERTOOTH Z97 MARK S

2-9

Chapter 2

2.1.7 Front I/O Connector

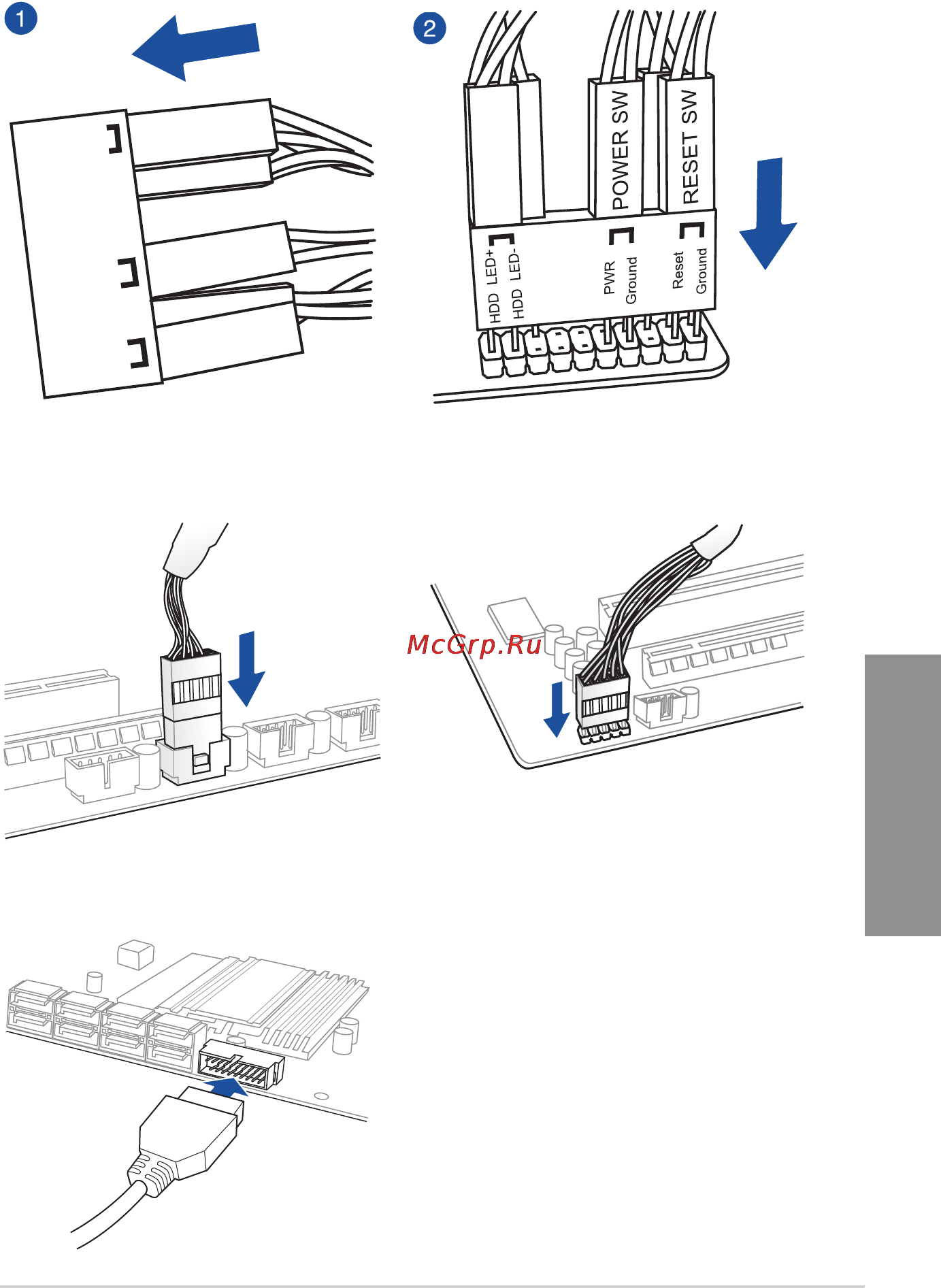

To install ASUS Q-Connector

USB 2.0

AAFP

To install USB 2.0 connector To install front panel audio connector

To install USB 3.0 connector

HDD LED

POWER SW

RESET SW

HDD LED-

HDD LED+

PWR

Reset

Ground

HDD LED

USB 3.0
