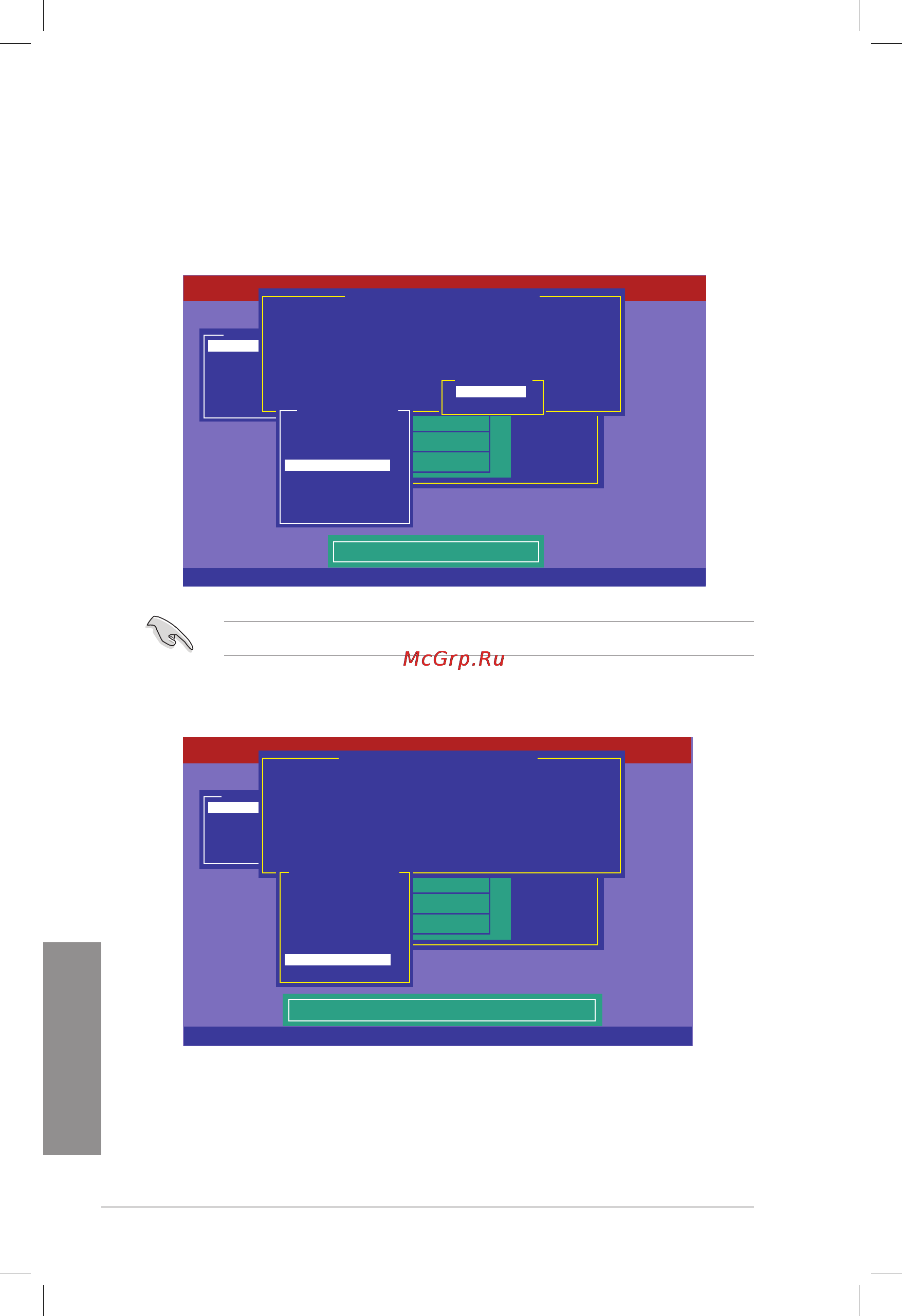

6-8
Chapter 6: RAID conguration
Chapter 6
10. When creating a RAID 1 or a RAID 10 set, select DWC from the Virtual Drive
menu, and then press <Enter>.
When creating a RAID 0 set, proceed to step 12.
11. Select On to enable the Disk Write Cache setting, and press <Enter>.
Enabling DWC can improve the performance, but with the risk of data loss.
Management Menu
Congure
Initialize
Objects
Rebuild
Check Consistency
PORT #
0
1
Easy Conguration - ARRAY SELECTION MENU
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Virtual Drive(s) Congured
LD RAID Size #Stripes StripSz Status
0 1 148.580GB 2 64 KB ONLINE
Virtual Drive 0
RAID = 1
Units= MB
Size = 152146MB
DWC = Off
RA = On
Accept
SPAN = NO
Change DWC
Off
On
Disk Write Cache Setting Of VD
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
12. When nished setting the selected virtual drive conguration, select Accept
from the menu, and press <Enter>.
Management Menu
Congure
Initialize
Objects
Rebuild
PORT #
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
0
1
Easy Conguration - ARRAY SELECTION MENU
Virtual Drive(s) Congured
LD RAID Size #Stripes StripSz Status
0 1 148.580GB 2 64 KB ONLINE
Virtual Drive 0
RAID = 1
Units= MB
Size = 152146MB
DWC = Off
RA = On
Accept
SPAN = NO
Accept This VD Conguration And Go To Next VD
Cursor Keys, SPACE-(De)Select F2-ChIdInfo F3-SlotInfo F10-Congure Esc-Quit
