7-18
Chapter 7: Driver installation
Chapter 7
7.3 Intel
@
Network Connections Software installation
This section provides the instructions on how to install the Intel
®
Network
Connections Software on the system.
You need to manually install the Intel® Network Connections Software on a
Windows
®
operating system. To install the Intel
®
Network Connections Software:
1. Restart the computer, and then log on with Administrator privileges.
2. Insert the motherboard/system support DVD to the optical drive. The support
DVD automatically displays the Drivers menu if Autorun is enabled in your
computer.
Windows
®
automatically detects the LAN controllers and displays a New
Hardware Found window. Click Cancel to close this window.
If Autorun is NOT enabled in your computer, browse the contents of the support
DVD to locate the le ASSETUP.EXE from the BIN folder. Double-click the
ASSETUP.EXE to run the DVD.

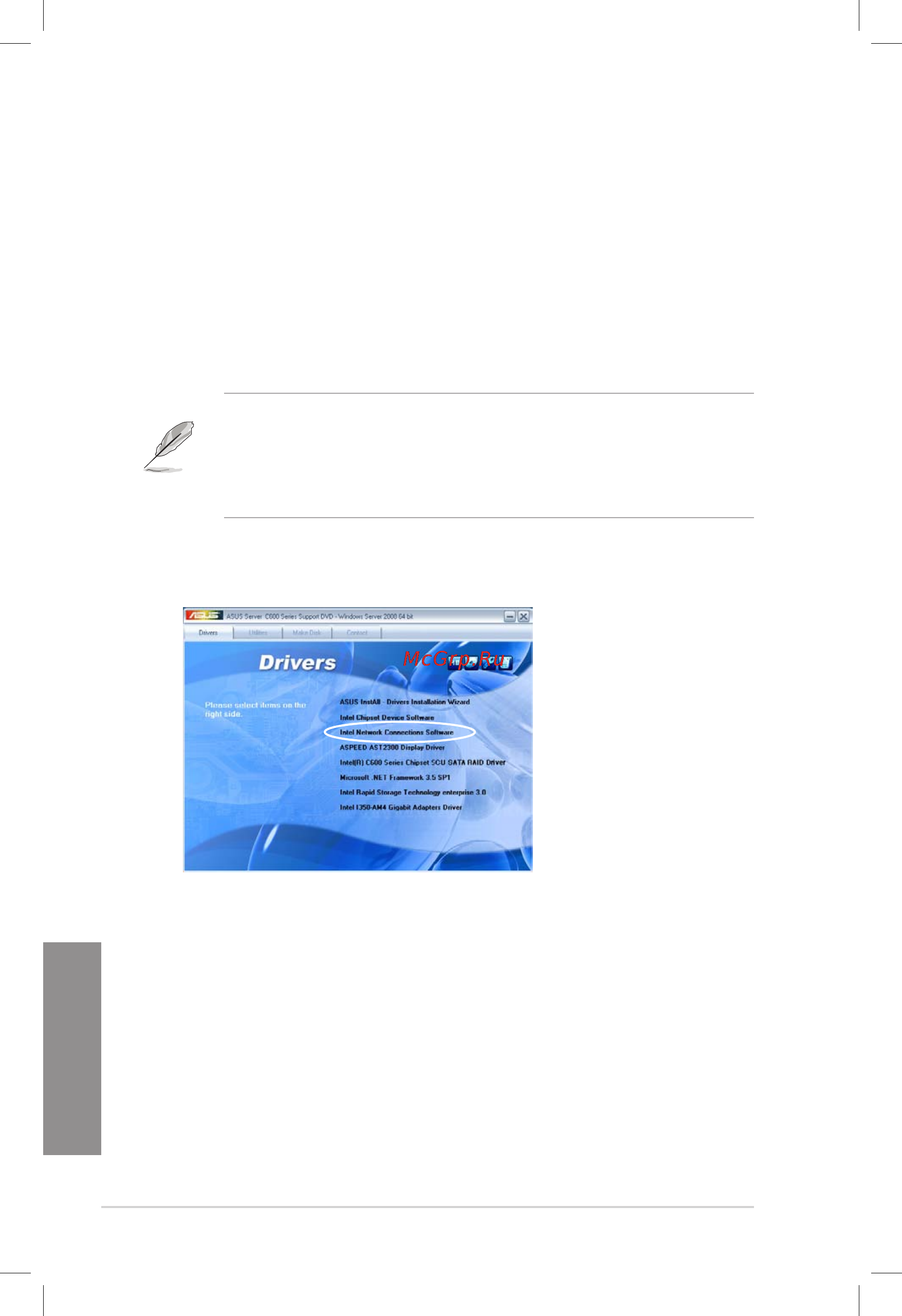

3. Click the Intel
®
Network Connections Software.
