Asus ts700-e7-rs8 [183/198] Chapter 7

TS700-E7/RS8

7-23

Chapter 7

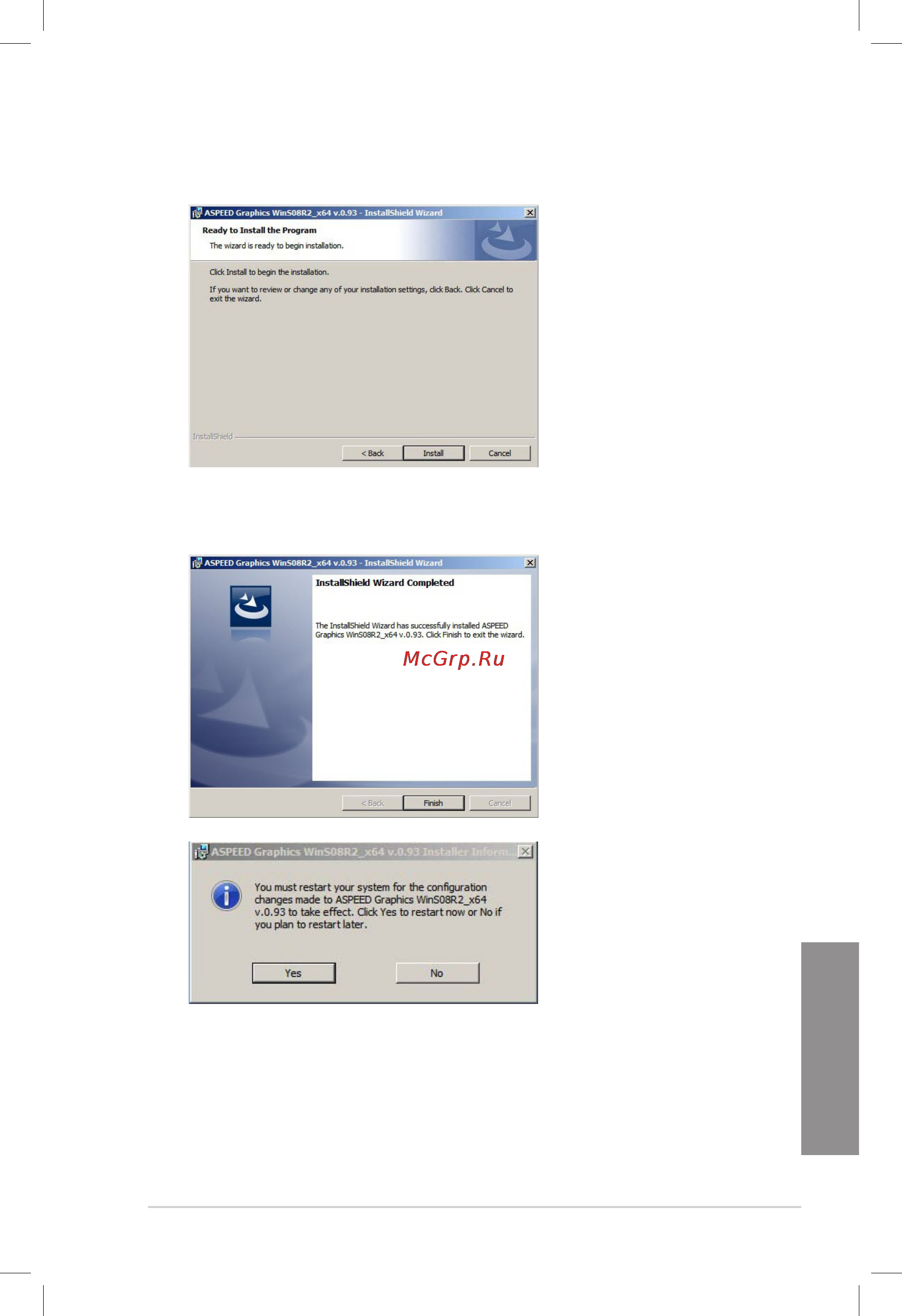

9. When the installation completes, click Finish to restart your computer before

using the program.

8. Click Install.
