1-6
Chapter 1: Product introduction

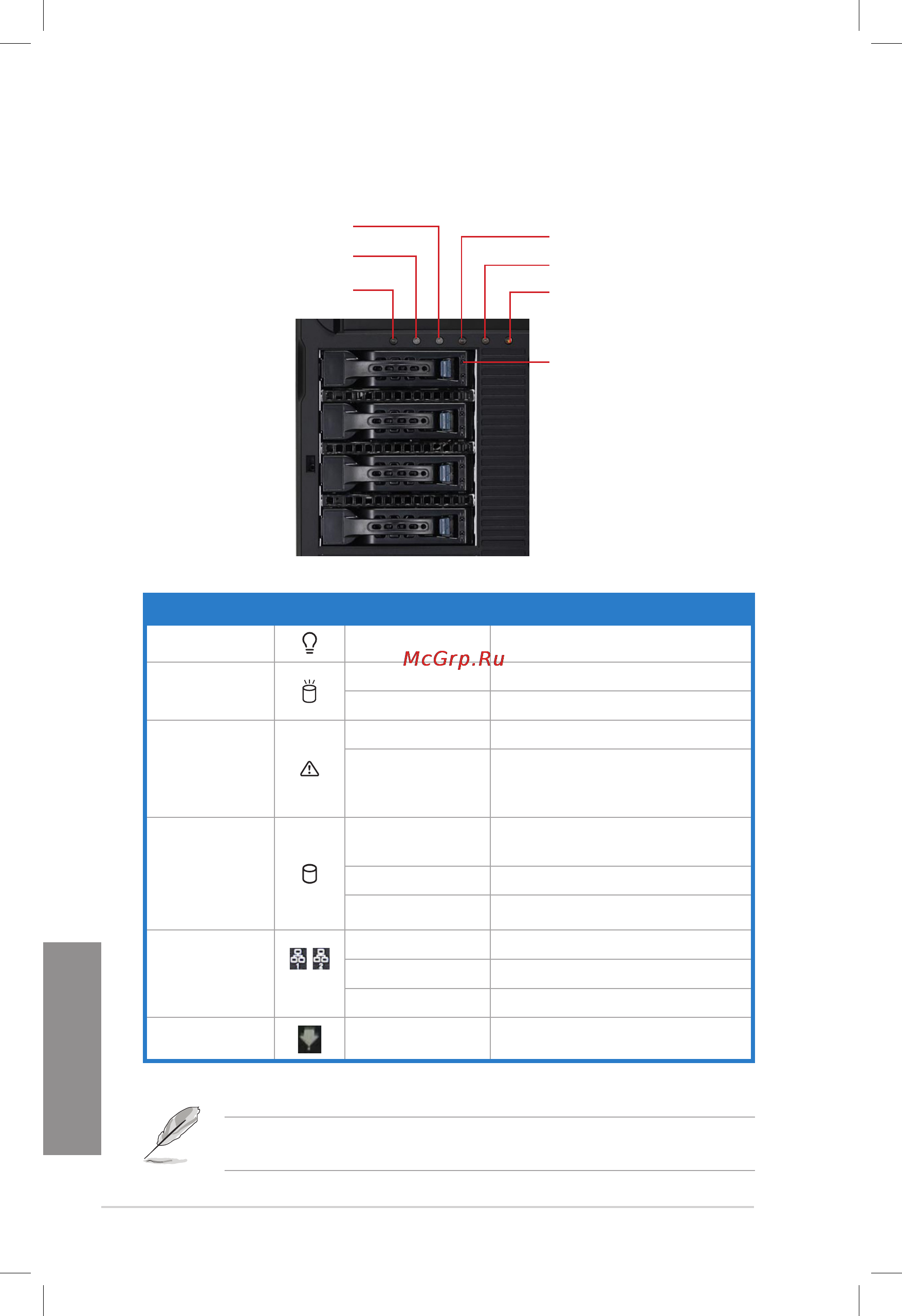

1.6 LED information
1.6.1 Front panel LEDs
Message LED
Drive Status LED
Power LED
LAN1 LED
LAN2 LED
HDD Access LED
LED Icon Display status
Description
Power LED ON
System power ON
HDD Access
LED
OFF
No activity
Blinking
Read/write data into the HDD.
Message LED OFF
System is normal; no incoming event
Lighting up
A hardware temperature overheat is
detected. Use ASWM to check the
abnormal status.
Drive status LED Green
Bridge board connected to backplane
Installed HDD is in good condition
Red
HDD failure
Green/Red Blinking
HDD rebuilding using the RAID card
LAN LEDs
OFF
Blinking
LAN accessing
ON
Locate LED ON Locates a specic server
The Power, HDD Access, LAN and Message LEDs are visible even if the
system front bezel is closed.
Locate LED (Reserved)
Chapter 1
