Asus ts700-e7-rs8 [21/198] Hardware setup

TS700-E7/RS8

2-1

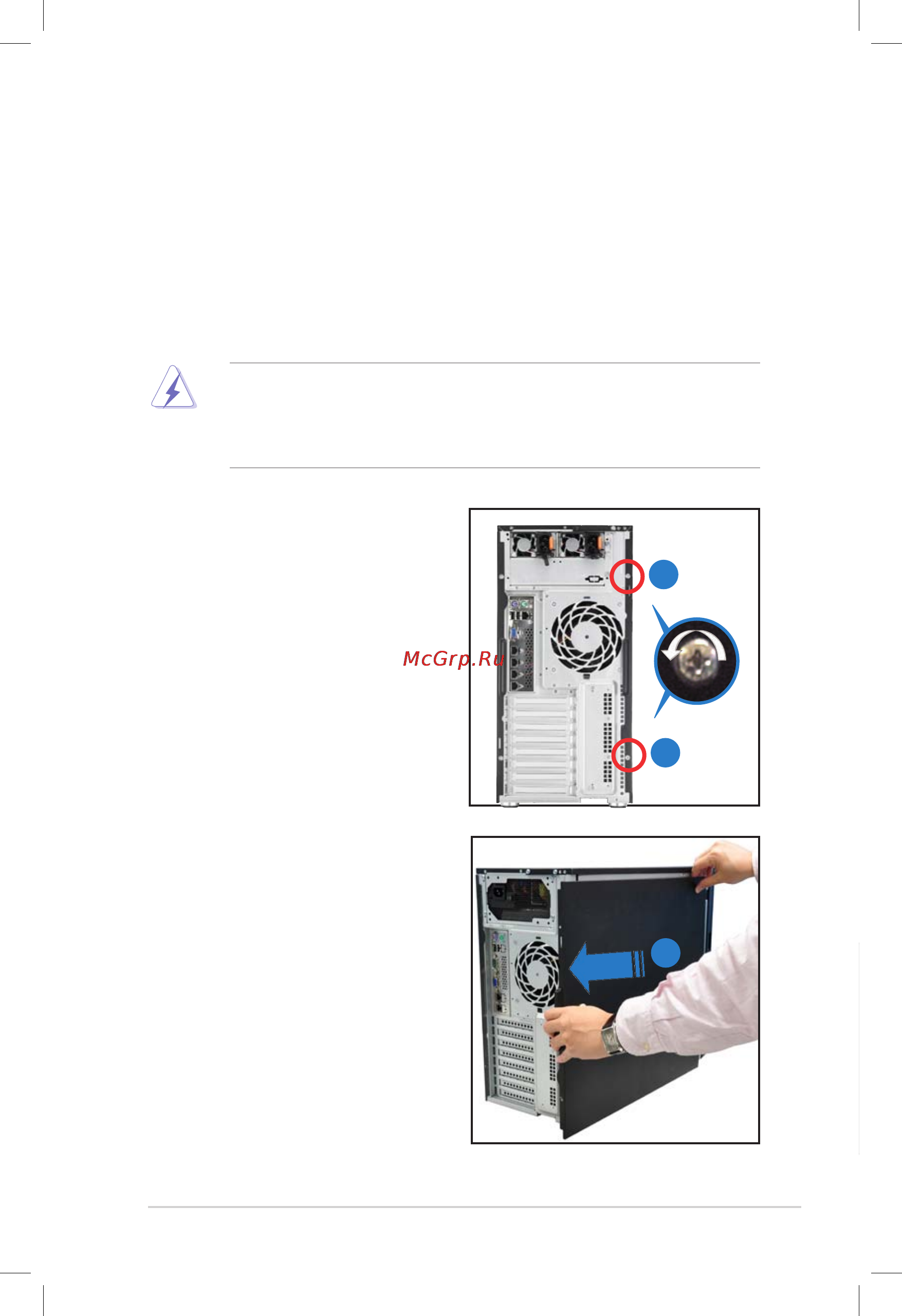

2.1 Chassis cover

2.1.1 Removing the side cover

• Ensure that you unplug the power cord before removing the side cover.

• Take extra care when removing the side cover. �eep your ngers fromTake extra care when removing the side cover. �eep your ngers from

components inside the chassis that can cause injury, such as the CPU fan,

rear fan, and other sharp-edged parts.

To remove the side cover:

1. Remove the two screws that secure

the side cover.

2. Slide the side cover for about half

an inch toward the rear until it is

disengaged from the chasssis.

3. Carefully lift the side cover and set it

aside.

Chapter 2

Hardware setup
