Asus ts700-e7-rs8 [173/198] Chapter 7

TS700-E7/RS8

7-13

Chapter 7

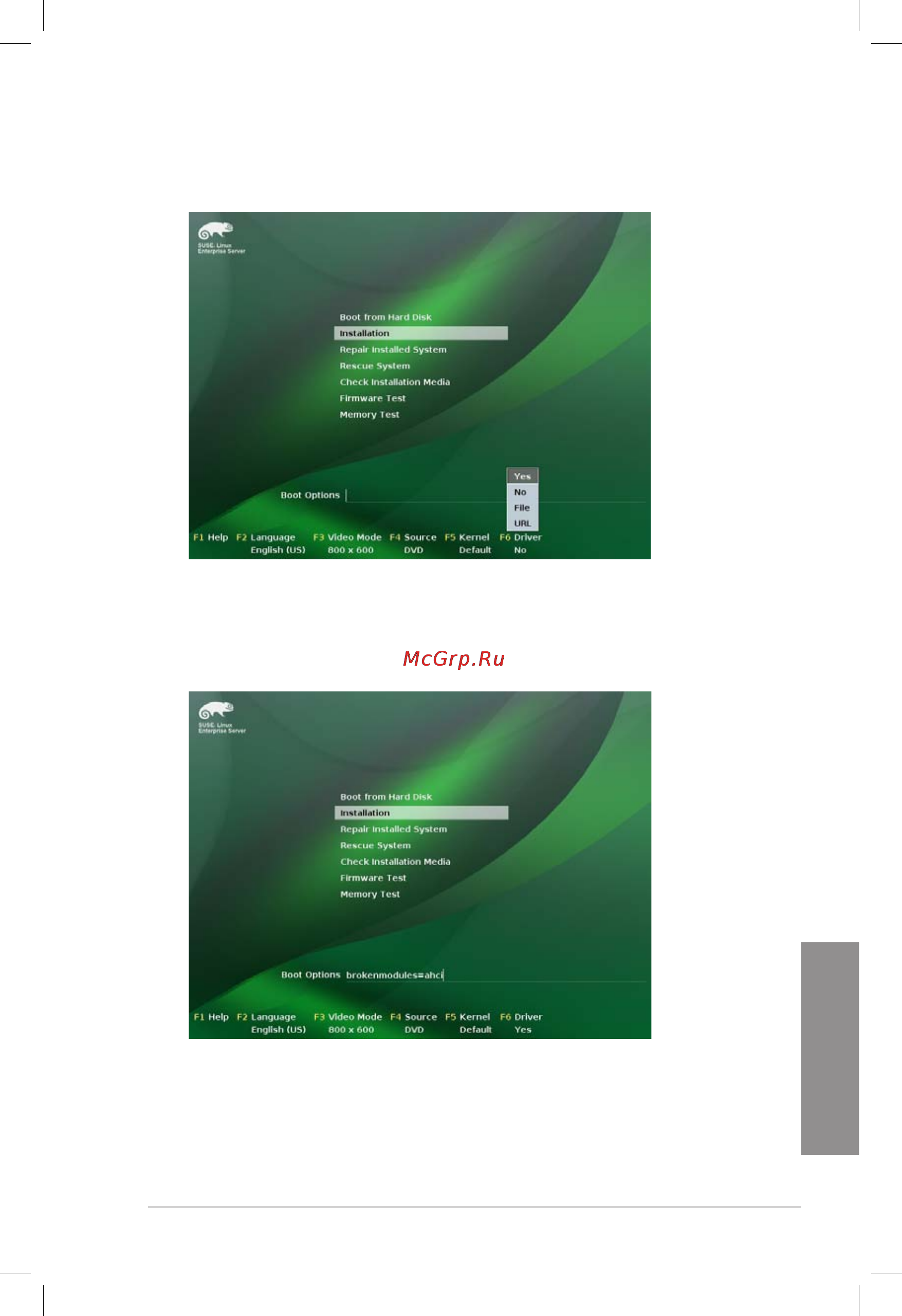

3. Press <F6>, then select Yes from the menu. Press <Enter>.

4. Use the USB drive to provide the third-party driver during the OS installation.

Type the command brokenmodules=ahci in Boot Options eld, and press

<Enter>.
