Asus ts700-e7-rs8 [160/198] Chapter 6

6-40

Chapter 6: RAID conguration

Chapter 6

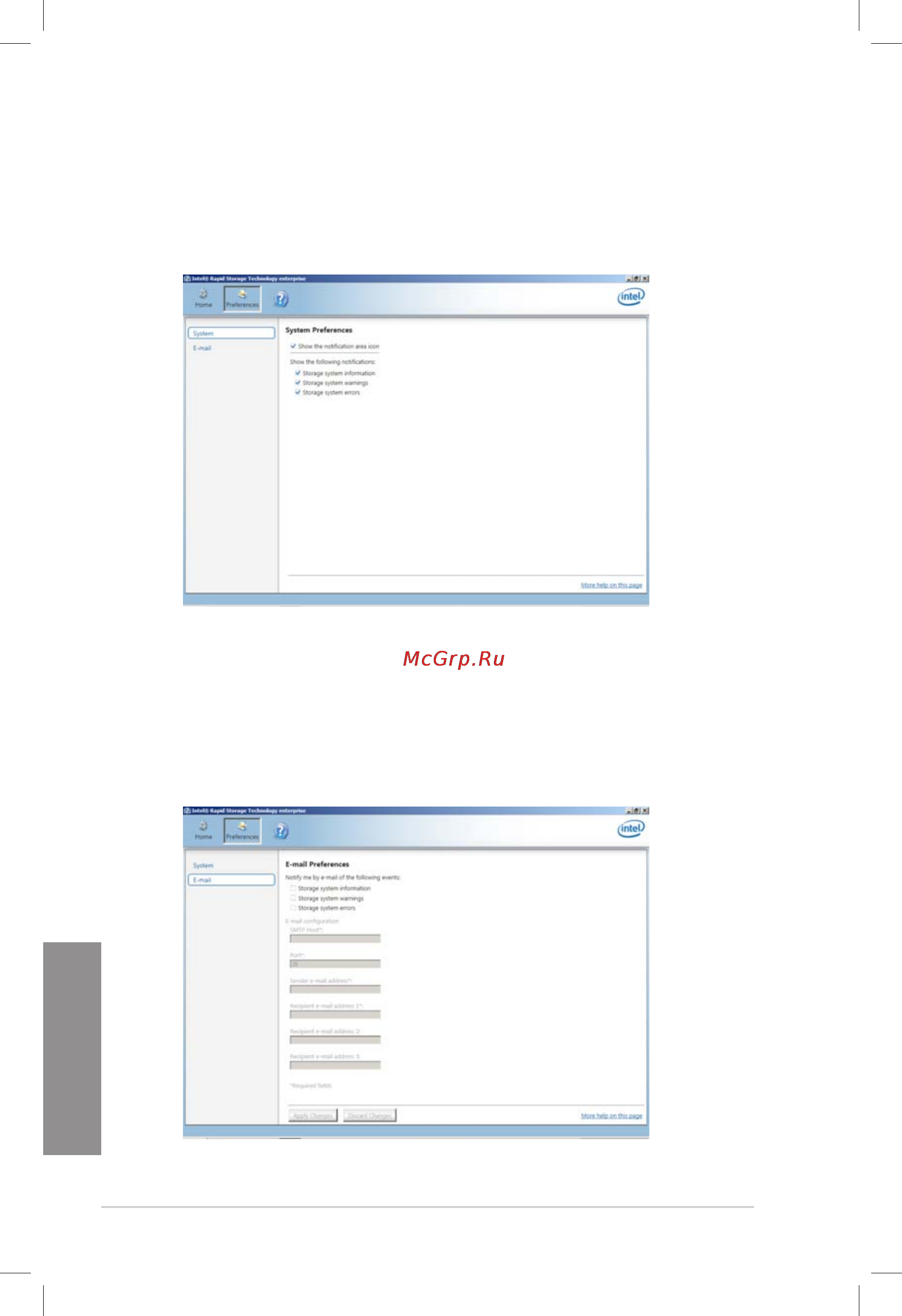

6.4.4 Preferences

System Preferences

Allow you set to show the notication area icon and show system information,

warning, or errors.

E-Mail Preferences

Allow you set to sent e-mail of the following events:

• Storage system information

• Storage system warningsStorage system warnings

• Storage system errorsStorage system errors
